Emerson 12P3275X022 KJ3204X1-BA1 DeltaV Discrete Output Card

Emerson 12P3275X022 KJ3204X1-BA1 DeltaV Discrete Output Card

Manufacturer:Emerson

Product Number:12P3275X022 KJ3204X1-BA1

Product Type:DeltaV Discrete Output Card

Origin:USA

Dimensions:107 x 41 x 105 mm

Weight:0.181 kg

Views:4

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/12P3275X022-KJ3204X1-BA1-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/12P3275X022-KJ3204X1-BA1-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/12P3275X022-KJ3204X1-BA1-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/12P3275X022-KJ3204X1-BA1-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview:

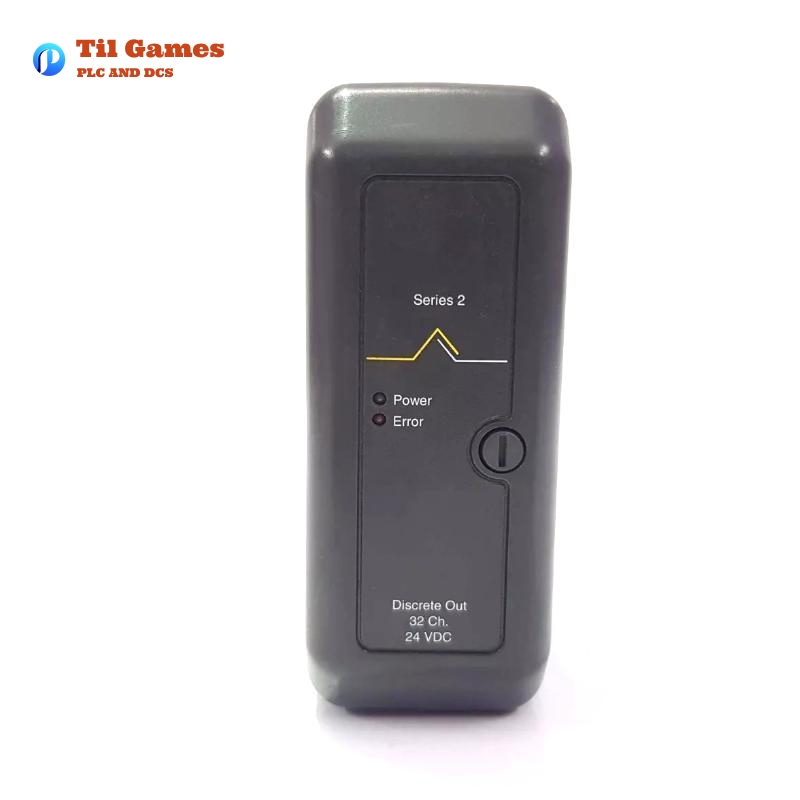

The Emerson 12P3275X022 KJ3204X1-BA1 DeltaV Discrete Output Card is designed for precise and reliable operation in high-demand industrial applications, particularly in hazardous environments. This module is part of the DeltaV™ system, offering robust performance for process automation control systems. It features 32 discrete outputs, operating with 24 VDC high-side configurations, and is certified for use in hazardous atmospheres. Its compliance with ATEX and IECEx standards ensures safety and reliability in environments with potential explosive hazards.


Key Specifications:

Parameter Value
Part Number 12P3275X022 KJ3204X1-BA1
Type Discrete Output Card
Channels 32 Channels
Operating Voltage 24 VDC (High-Side)
Field Circuit Power 24 VDC at 100 mA per channel
Local Bus Power 12 VDC at 150 mA
Bussed Field Power 24 VDC at 3.2 A per card
Temperature Range -40°C to +70°C
Shock Resistance 10g, ½ Sinewave for 11ms
Vibration 1mm Peak to Peak (2 to 13.2Hz); 0.7g (13.2 to 150Hz)
Relative Humidity 5% to 95% Non-Condensing
Dimensions 107 x 41 x 105 mm
Weight 0.181 kg
Rating IP 20
Environmental Class G3 (Airborne Contaminants)
ATEX Classification II 3G Ex nA IIC Gc
FM Approvals FM12ATEX0090U
IECEx Certification IECEx FMG 12.0035U

Features:

  • 32 Channels of Discrete Outputs: The KJ3204X1-BA1 module offers reliable control with 32 discrete output channels, each supporting a maximum of 24 VDC.

  • ATEX and IECEx Certified: The module meets hazardous area certification standards, making it ideal for use in explosive environments, ensuring safety compliance.

  • Flexible Power Requirements: It operates with a low local bus power consumption and higher field power for smooth operation of the connected devices.

  • Environmental Durability: With an operating temperature range from -40°C to +70°C and excellent resistance to shock and vibration, the unit performs well even in harsh industrial conditions.

  • Compact and Lightweight Design: The module is compact in size (107 x 41 x 105 mm) and lightweight (0.181 kg), making it easy to integrate into tight spaces within control cabinets.


Advantages:

  • High Reliability in Hazardous Areas: The 12P3275X022 KJ3204X1-BA1 is engineered to operate safely in environments with flammable gases, dust, and other dangerous conditions.

  • Long-Term Durability: Built to withstand extreme temperatures and vibrations, making it suitable for demanding industrial applications.

  • Scalability and Flexibility: The DeltaV™ system allows for easy integration of additional modules, providing scalable solutions as process needs grow.

  • Maintenance-Free Operation: The unit requires no calibration or maintenance during its lifespan, reducing overall system downtime and operational costs.

  • Easy Installation: A rotary keying system ensures compatibility between the I/O cards and terminal blocks, simplifying the installation and setup process.


Applications:

The DeltaV Discrete Output Card is typically used in:

  • Process Automation: For controlling discrete devices such as solenoids, relays, and actuators in various industrial sectors.

  • Oil & Gas Industry: Safe operation in hazardous areas where explosive gases may be present.

  • Chemical and Petrochemical Plants: Ensures safe control and operation of critical processes.

  • Pharmaceutical Manufacturing: Provides reliable control of devices and systems where high precision and safety are paramount.


Latest Reports and News:

  • “Emerson Expands DeltaV System’s Capabilities with New Hazardous Area Modules”

  • “Emerson’s DeltaV I/O Modules Meet Global Safety Standards”

  • “Innovative Safety Solutions for Process Control: Emerson’s New Discrete Output Modules”

  • “DeltaV Modules Enhance Efficiency in Hazardous Environment Automation”


Related Models:

Model Number Description Key Features
12P3275X021 KJ3204X1-BA2 DeltaV Discrete Output Module (32 Channels) 32 discrete outputs, ATEX/IECEx certified
12P3275X023 KJ3204X1-BA3 DeltaV Discrete Output Card (16 Channels) 16 discrete outputs, compact design
12P3275X024 KJ3204X1-BA4 DeltaV Discrete Output Module (32 Channels, Low Power) Low power consumption, ATEX/IECEx certified
12P3275X025 KJ3204X1-BA5 DeltaV High-Side Output Card (16 Channels) High-Side configuration, certified for hazardous locations
12P3275X026 KJ3204X1-BA6 DeltaV High-Side Discrete Output Card (16 Channels) Optimized for process control in harsh environments
12P3275X027 KJ3204X1-BA7 DeltaV Discrete Output Card (32 Channels, Hazardous Area) Suitable for explosive atmospheres, robust design

Popular Emerson Models:

Model Number Description Key Features
KJ3201X1-BA1 DeltaV Analog Input Module 16-channel, 24 VDC, high accuracy
KJ3202X1-BA1 DeltaV Analog Output Module High precision, robust performance
KJ3203X1-BA1 DeltaV Digital Input Module 16-channel, high-speed inputs
KJ3205X1-BA1 DeltaV Universal I/O Module Flexible, scalable I/O capabilities
KJ3206X1-BA1 DeltaV Discrete Input Module 32 channels, safe and reliable inputs
KJ3207X1-BA1 DeltaV Temperature Input Module High-temperature range, reliable sensors
FAQ

FAQ:

  1. Q: What is the operating temperature range of the KJ3204X1-BA1?
    A: The module operates within a temperature range of -40°C to +70°C.

  2. Q: How many discrete outputs does the module provide?
    A: The KJ3204X1-BA1 module provides 32 discrete outputs.

  3. Q: Is the KJ3204X1-BA1 suitable for use in hazardous environments?
    A: Yes, it is certified for use in hazardous areas with ATEX and IECEx approvals.

  4. Q: What is the power requirement for the field circuit?
    A: The field circuit requires 24 VDC at 100 mA per channel.

  5. Q: Can the KJ3204X1-BA1 be used in extreme conditions?
    A: Yes, it is designed to withstand harsh environments, including extreme temperatures and vibrations.

  6. Q: Does the module require calibration?
    A: No, the KJ3204X1-BA1 requires no calibration or maintenance.

  7. Q: What is the weight of the KJ3204X1-BA1 module?
    A: The module weighs 0.181 kg.

  8. Q: Is there any special installation requirement for this module?
    A: Yes, the module must be installed according to specific hazardous area guidelines, and it should not be inserted or removed while the system is energized in hazardous environments.
