Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 91.19 x 41.4 mm |
| Weight | 0.3 kg |
| Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Temperature Coefficient | 0.2%/°C |
| Frequency Response | 4.5 to 1000 Hz (270 to 60,000 CPM), +0, -3dB |
| Dynamic Operating Range | 2.54 mm (0.100 in) peak to peak maximum displacement |
| Velocity Range | 25 mm/s (1 in/s) |
| Coil Resistance | 1.25 kΩ ±5% |
| Locked Coil Inductance | 125 mH, typical |
| Amplitude Linearity | ±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100Hz |
| Shock Resistance | Withstands 50g peak maximum acceleration |
| Mounting Torque | 5.6 N·m (50 in·lb) |
| Operating Temperature | -29°C to +121°C (-20°F to +250°F) |
| Humidity | 95%, non-condensing |
| Case Material | Anodized aluminum A204 |
| Gasket Material | 9200: Neoprene |
| Connector Material | Cadmium-plated aluminum, neoprene, and silver-plated copper |
FAQ
Frequently Asked Questions

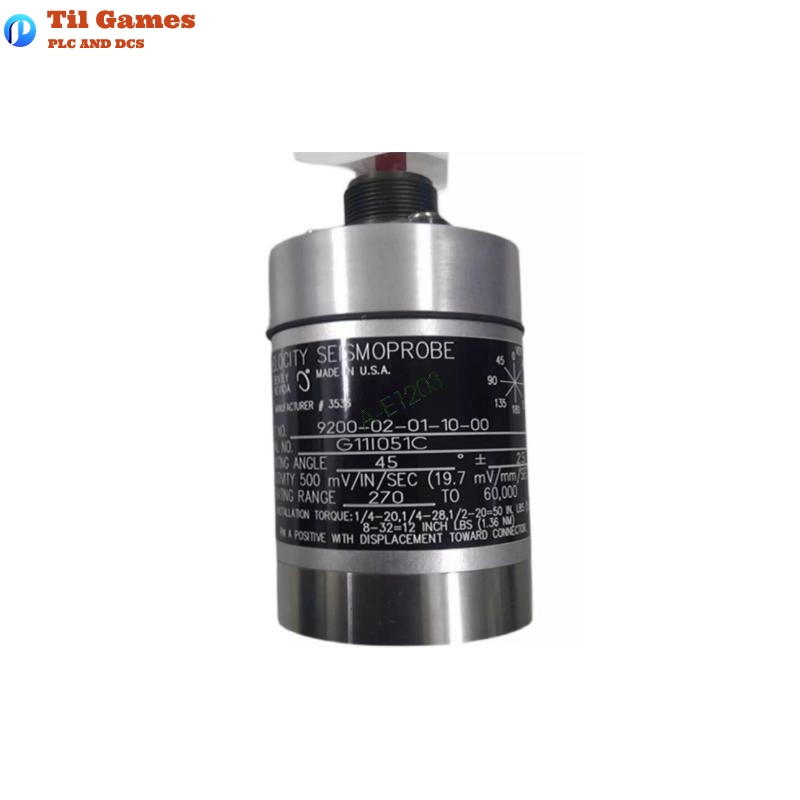

Q1: What is the operating temperature range for the Bently Nevada 9200-02-01-10-00?
A1: The operating temperature range is -29°C to +121°C.
Q2: What types of applications is the 9200-02-01-10-00 suitable for?
A2: This product is suitable for continuous monitoring or periodic measurements in conjunction with test or diagnostic instruments.
Q3: What environmental resistance features does the 9200-02-01-10-00 have?
A3: The 9200-02-01-10-00 is dust and moisture resistant, making it suitable for harsh environments.
Q4: How should the 9200-02-01-10-00 transducer be installed?
A4: The transducer should be installed on the bearing housing or machine casing. Proper installation is critical for accurate vibration measurements.
Q5: What is the sensitivity of the 9200-02-01-10-00?
A5: The sensitivity is 20 mV/mm/s (500 mV/in/s), ±5%.
Q6: What is the frequency response range for the 9200-02-01-10-00?
A6: The frequency response range is from 4.5 Hz to 1000 Hz (270 to 60,000 CPM), with a typical value of +0, -3dB.
Q7: What is the maximum shock resistance of the 9200-02-01-10-00?
A7: It can withstand a maximum shock acceleration of 50g.
Q8: What is the weight of the 9200-02-01-10-00?
A8: The weight is 0.3 kg.
