Technical Specifications
| Parameter | Specification |
|---|---|

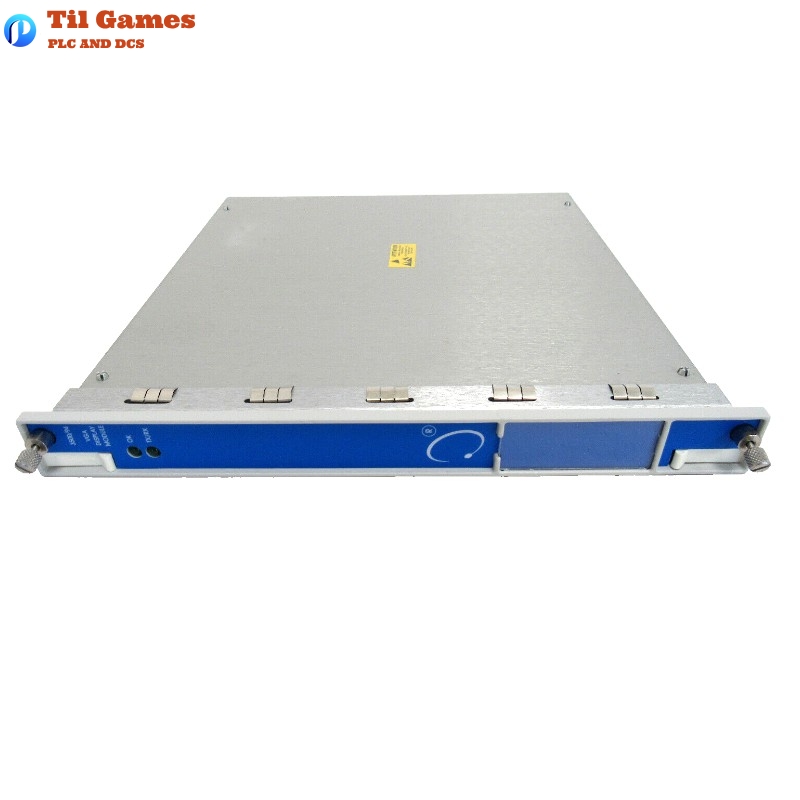

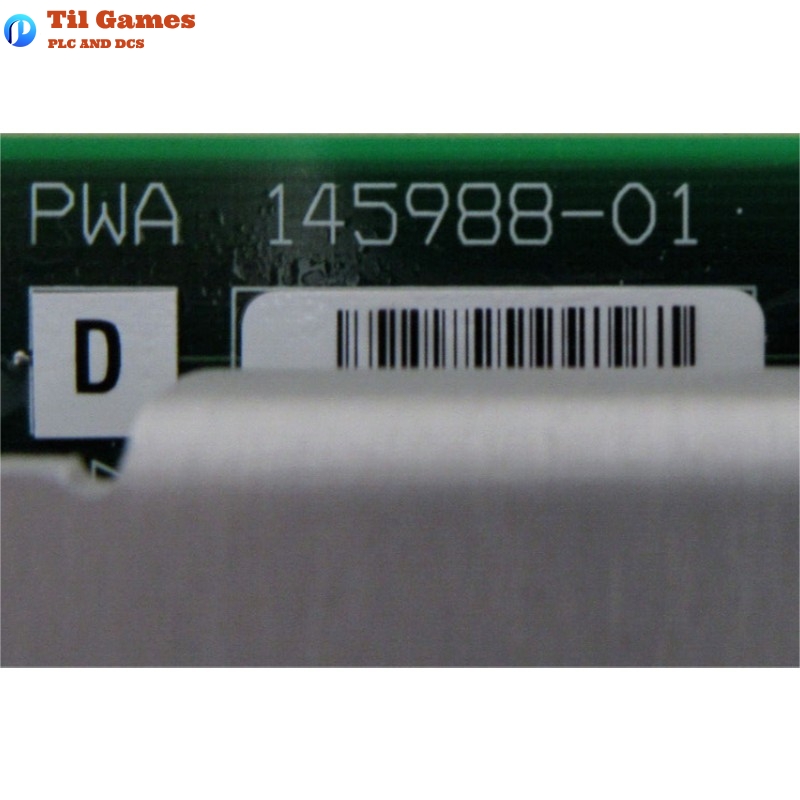

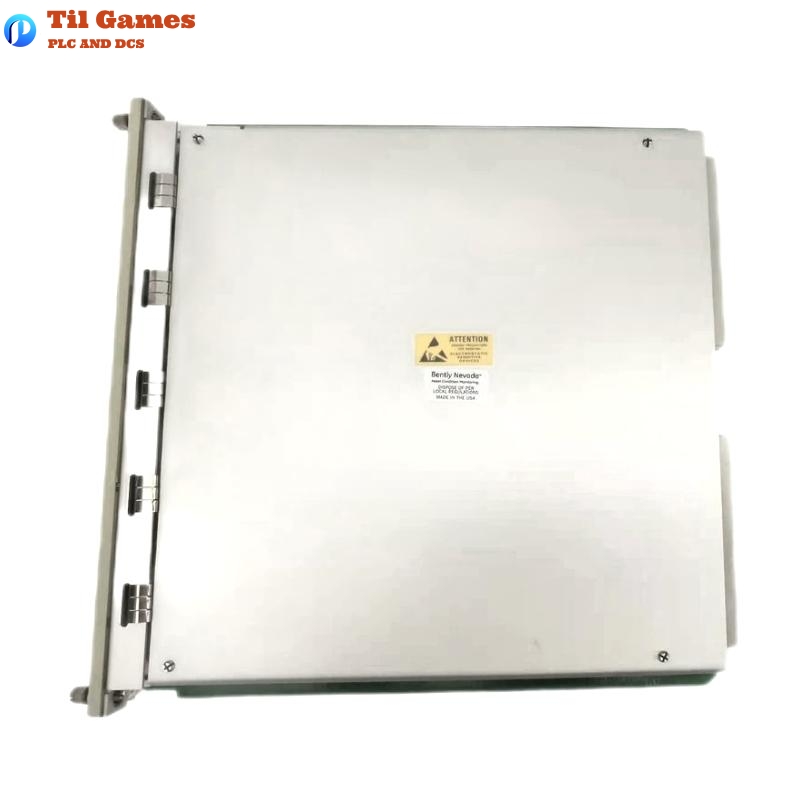

| Model Number | 3500/94 145988-01 |
| Display Type | VGA Display Module with Touch Screen |
| Display Options | 9 configurable custom screens; API-670 rack-style view |
| Inputs | High-speed network (status/data), RS232 port for touch controller |
| Outputs | VGA analog (RGB + sync), RS232 (touch data), Status LEDs (OK, TX/RX) |
| Power Consumption | 4.6 W max |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +150 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95% RH, non-condensing |
| EMC Standards | EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions) |
| Safety Standards | EN 61010-1 |
| Certifications | EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC |
| Hazardous Area Approvals | Class I Div 2 (A, B, C, D) / ATEX II 3 G Ex nA nC IIC T4 Gc |
| Mounting | Requires one full-height front slot (monitor), one full-height rear slot (I/O) |
| Touch Screen | Yes (resistive) |
| Communication | RS232, VGA |
| VGA Cable Length Limit | 8 meters (25 ft) recommended; KVM extender up to 305 m optional |
| Display Router Box Support | Yes, supports up to 4 racks |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight | 0.73 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the 3500/94 VGA Display Module?
A1: It provides a touch-screen graphical interface for viewing machine protection data from the 3500 system, including alarm lists, module status, and customizable screens.
Q2: How many racks can the 3500/94 display at once?
A2: With the Display Router Box, it can switch between up to four racks, but only one rack is viewed at a time.
Q3: Is the 3500/94 display compatible with outdoor installations?
A3: Yes, but a hood is required to block direct sunlight. Additionally, displays must be enclosed if exposed to sub-zero temperatures.
Q4: What type of touch screen does the module use?
A4: It uses resistive touch screen technology. Each monitor type must be configured accordingly in the 3500 Rack Configuration Software.
Q5: What is the recommended distance between the display and the rack?
A5: The recommended cable length is up to 8 meters (25 feet). For longer distances, a KVM extender can be used, though with some image quality loss.

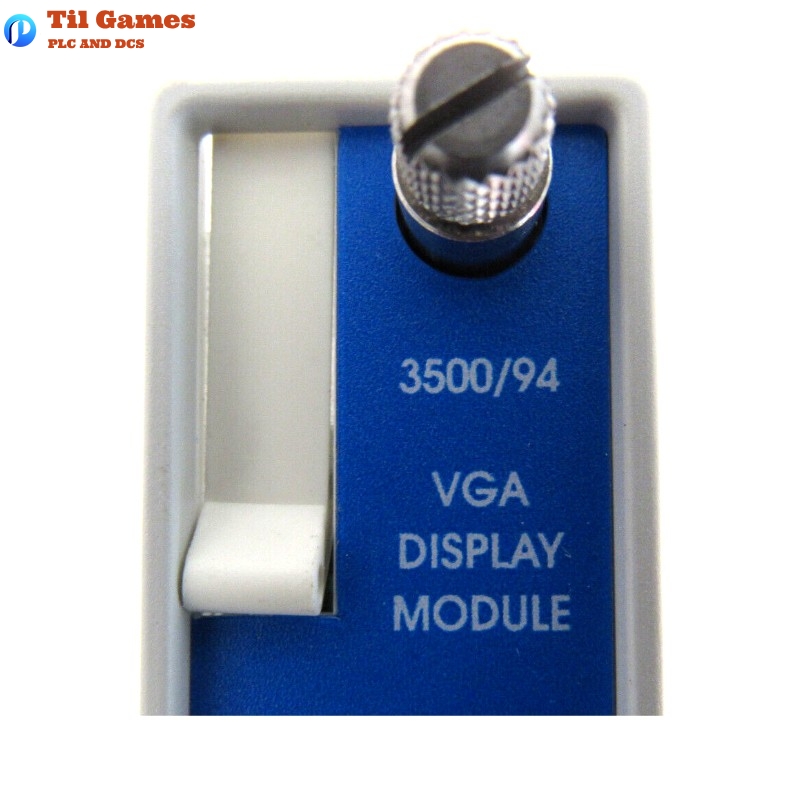

Q6: What are the key indicators on the module?
A6: The front panel includes OK and TX/RX LEDs to indicate module health and communication activity.
Q7: Does the 3500/94 require a specific type of monitor?
A7: Yes. Only Bently Nevada-approved touchscreen monitors such as the Advantech FPM-8151H are supported for full functionality.
Q8: What certifications does the module carry for hazardous areas?
A8: It is certified for Class I, Division 2 hazardous areas and conforms to ATEX II 3 G Ex nA nC IIC T4 Gc standards.
