Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 135813-01 |

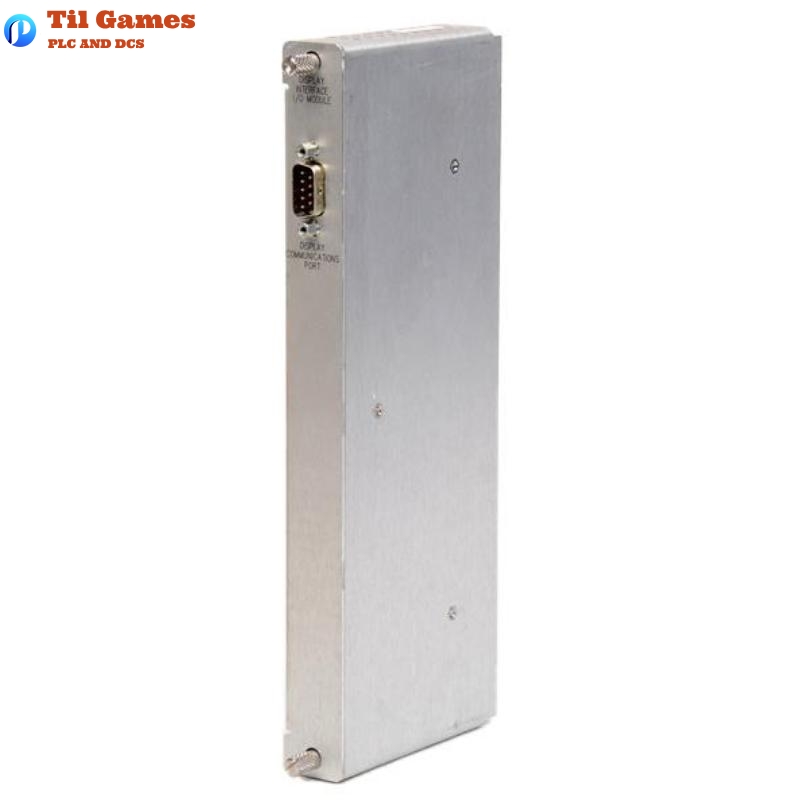

| Product Name | 3500/93 Display Interface I/O Module |
| Function | Interface module for communication between the 3500/93 Display Unit and Rack |
| Communication Interface | RS422 |
| Protocol Support | Bently Nevada proprietary protocol, Modbus® protocol (AEG PI-MBUS-300 Rev. E) |
| Power Requirement | Supplied via Display Interface Module |
| Channel Update Rate | Typical 1 second |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| EMC Compliance | EN 50081-2 / EN 55011 Class A (Radiated & Conducted Emissions) |
| Safety Compliance | EN 61010-1 |
| Hazardous Area Certification | CSA/NRTL/C Class I, Division 2, Groups A-D |
| Mounting Type | Rear full-height slot of 3500 rack |
| Dimensions (H x W x D) | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.38 kg (0.84 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 135813-01 Display Interface I/O Module?
A1: It serves as the communication link between the 3500/93 Display Unit and the 3500 monitoring rack, enabling data exchange for system status display.
Q2: Is the Display Interface I/O Module compatible with all 3500/93 display mounting options?
A2: Yes, it is included with all mounting options except the system face mount (Option A01), where it must be ordered separately.
Q3: What communication protocols are supported by this module?
A3: It supports both the proprietary Bently Nevada protocol and Modbus® based on AEG PI-MBUS-300 Rev. E.
Q4: What is the maximum channel data update rate for this module?
A4: The module typically updates channel data every 1 second.
Q5: What are the environmental operating limits for this module?
A5: It operates from -30°C to +65°C and stores from -40°C to +85°C with 95% non-condensing humidity tolerance.
Q6: Does this module require a separate power supply?
A6: No, it draws power through its connection to the 3500/93 Display Interface Module.
Q7: What are the mounting requirements within the 3500 rack?
A7: It occupies one full-height rear I/O slot in the 3500 rack.
Q8: What is the physical size and weight of the 135813-01 module?
A8: It measures 241.3 x 24.4 x 99.1 mm and weighs 0.38 kg.
