Technical Specifications
| Parameter | Description |
|---|---|

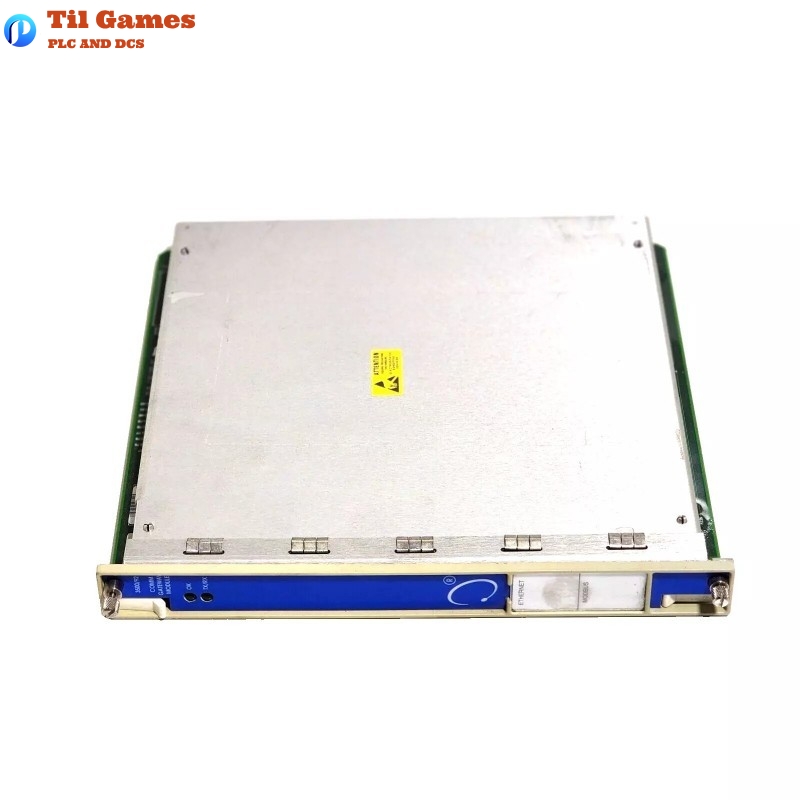

| Product Model | 3500/92-04-01-00 |

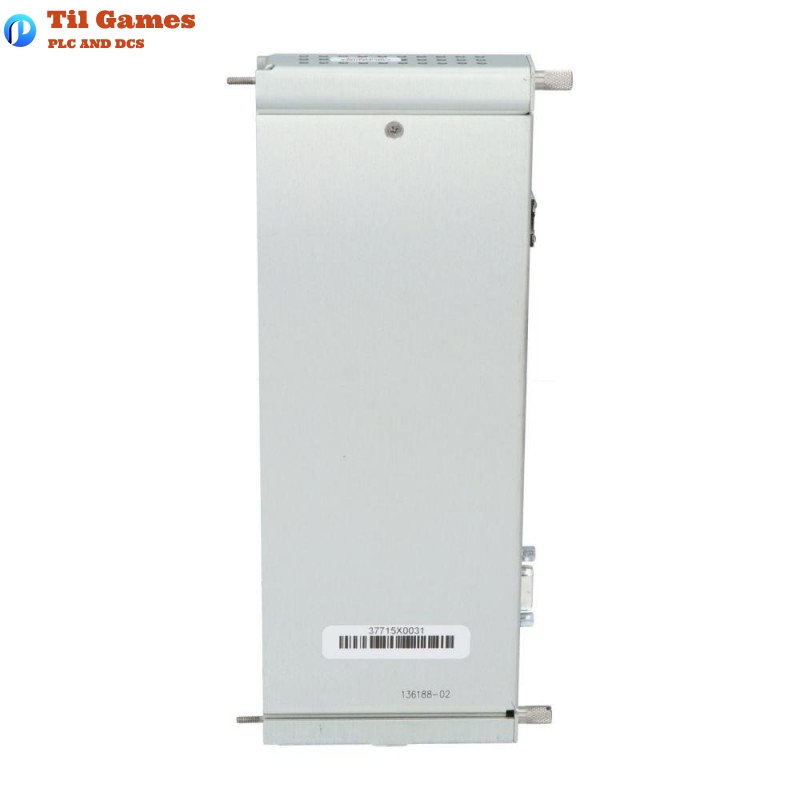

| Main Part Numbers | 136188-02 (Ethernet/RS485 Modbus I/O), 136180-01 (Gateway Module) |
| Communication Protocols | Modbus RTU (RS485), Modbus/TCP (Ethernet), Proprietary Bently Nevada Protocol |
| Ethernet Interface | RJ-45 connector, 10BASE-T, IEEE 802.3 |
| Data Collection Rate | ≤1 second for all modules in the rack |
| Power Consumption | 5.6 W typical (with Modbus RS485 I/O Module) |
| Indicators | OK LED, TX/RX LED |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Main Module Dimensions (HxWxD) | 241 x 24.4 x 242 mm |
| Main Module Weight | 0.82 kg |
| I/O Module Dimensions (HxWxD) | 241 x 24.4 x 99.1 mm |
| I/O Module Weight | 0.44 kg |
| Rack Mount Requirements | One full-height front slot (main module), one full-height rear slot (I/O) |
| Certifications | FCC Part 15, EN 61000-6-2, EN 61000-6-4, EN 61010-1, RoHS, ATEX, IECEx, CSA |
| Hazardous Area Ratings | Class I, Div 2, Groups A-D; Ex nA/ic IIC T4 Gc (when installed per drawing) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication protocols are supported by the 3500/92 Communication Gateway?
A1: The module supports Modbus RTU (serial), Modbus/TCP (Ethernet), and Bently Nevada proprietary protocols.
Q2: How does the 3500/92 communicate with control systems?
A2: Communication is done via RS232/RS422/RS485 serial ports or Ethernet (10BASE-T) using Modbus or Bently protocols.
Q3: What kind of data can the 3500/92 collect from the rack?
A3: It collects measured values, module statuses, and alarm conditions with time stamps via a high-speed internal network.
Q4: What is the maximum update rate for data collection?
A4: The data update rate is ≤1 second across all modules in the rack, depending on the configuration.
Q5: Is the 3500/92 compatible with older 3500/90 modules?
A5: Yes, it retains compatibility with previous interfaces and protocols but introduces a configurable Modbus register utility.
Q6: What is the recommended operating environment for the module?
A6: The recommended operating temperature is -30°C to +65°C with a maximum humidity of 95% non-condensing.
Q7: What rack space does the 3500/92 require?
A7: One full-height front slot for the main module and one full-height rear slot for the I/O module.
Q8: What certifications and approvals does the module carry?
A8: The unit is certified under FCC, EN standards, RoHS, ATEX, IECEx, and CSA for hazardous and industrial environments.
