Technical Specifications
| Parameter | Specification |
|---|---|

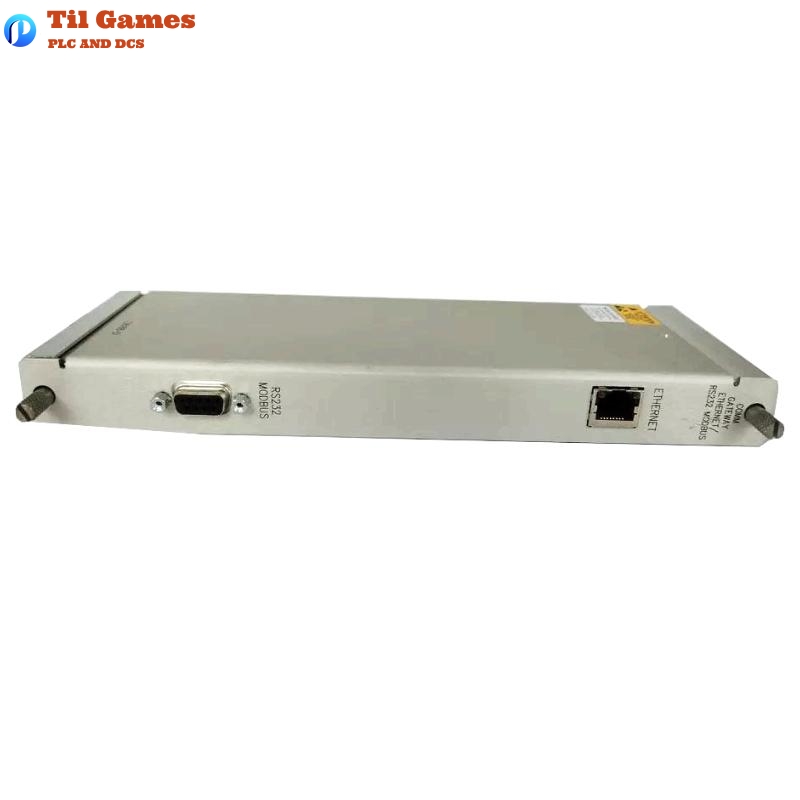

| Product Model | 3500/92-03-01-00 |
| Part Number | 136188-01 |
| Module Type | Ethernet/RS232 Modbus I/O Module |
| Communication Protocols | Modbus (RTU), Modbus/TCP, Bently Nevada Proprietary |
| Ethernet Interface | RJ-45 (10BASE-T), 10 Mbps, IEEE802.3 compliant |
| Serial Interface | RS232 |
| Data Collected | Measured values, timestamp, alarm status, module status |
| Update Time | ≤ 1 second for all rack modules |
| Power Consumption | 5.0 W typical with Modbus RS232/RS422 I/O, 5.6 W typical with RS485 module |
| LED Indicators | OK, TX/RX (status and communication indicators) |
| Environmental – Operating Temp | -30°C to +65°C (-22°F to +149°F) |
| Environmental – Storage Temp | -40°C to +85°C (-40°F to +185°F) |
| Humidity Tolerance | 95% non-condensing |
| Dimensions (H x W x D) | 241 x 24.4 x 99.1 mm |
| Weight | 0.44 kg |
| Front Module Rack Space | 1 full-height front slot |
| Rear Module Rack Space | 1 full-height rear slot |
| Compliance | FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS 2011/65 |
| Hazardous Area Ratings | ATEX, IECEx, CSA/NRTL/C Zone 2/Class I Div 2 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 3500/92-03-01-00 Communication Gateway I/O Module?
A1: The module provides data access from the 3500 rack to external systems through Ethernet and RS232 interfaces using Modbus and Bently Nevada protocols.
Q2: Which protocols are supported by this model?
A2: It supports Modbus RTU via serial, Modbus/TCP over Ethernet, and the proprietary Bently Nevada protocol.
Q3: What type of data does the module transmit?
A3: The module transmits real-time data such as measured values, alarm statuses, and module operating status.
Q4: What is the update frequency for data collection from the rack?
A4: Data is updated in less than or equal to 1 second across all modules in the rack.
Q5: What are the environmental limits for this module?
A5: It operates between -30°C and +65°C and can be stored between -40°C and +85°C with 95% non-condensing humidity tolerance.
Q6: Is the Ethernet connection standard RJ-45?
A6: Yes, the module uses an RJ-45 connector for 10BASE-T Ethernet networking.
Q7: Does this module support hazardous area applications?
A7: Yes, it is certified for use in Zone 2 and Class I Division 2 hazardous environments under ATEX, IECEx, and CSA/NRTL standards.
Q8: What are the physical dimensions and weight of the I/O module?
A8: The module measures 241 x 24.4 x 99.1 mm and weighs 0.44 kg.
