Technical Specifications
| Parameter | Specification |
|---|---|

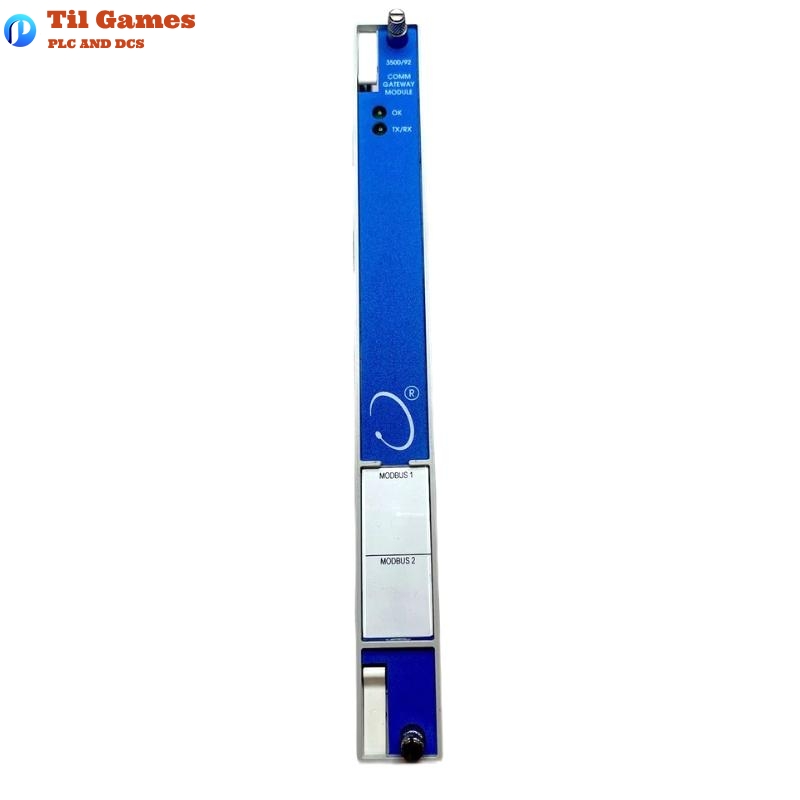

| Model | 3500/92-02-01-00 Communication Gateway Module |
| Supported Protocols | Modbus RTU (RS232/RS422/RS485), Modbus/TCP, Proprietary Bently Nevada Protocol |
| Communication Interfaces | Ethernet TCP/IP (RJ45), RS232, RS422, RS485 |
| Ethernet Port | RJ-45, 10BASE-T Ethernet, IEEE802.3 compliant |
| Power Consumption | 5.6 Watts typical with Modbus RS485 I/O Module |
| Data Collection | Rack-wide, real-time module data including alarms and statuses, ≤ 1s update rate |
| LED Indicators | OK (Module Health), TX/RX (Communication Status) |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Tolerance | 95%, non-condensing |
| Main Board Dimensions (H x W x D) | 241 mm x 24.4 mm x 242 mm |
| Main Board Weight | 0.82 kg (1.8 lb) |
| I/O Module Dimensions (H x W x D) | 241 mm x 24.4 mm x 99.1 mm |
| I/O Module Weight | 0.44 kg (0.96 lb) |
| Rack Slot Requirements | One full-height front slot (module), one full-height rear slot (I/O module) |
| Certifications | FCC, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS Directive 2011/65/EU |
| Hazardous Area Ratings | ATEX, IECEx, cNRTLus, DNV GL, ABS for marine and offshore installations |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the 3500/92 Communication Gateway Module?
A1: The 3500/92 module provides communication between the 3500 monitoring rack and external systems such as DCS, PLCs, or SCADA using Modbus (serial and TCP/IP) and proprietary Bently Nevada protocols.
Q2: What types of Modbus communication does the 3500/92 support?
A2: It supports Modbus RTU over RS232/RS422/RS485 and Modbus/TCP over Ethernet. The module includes configurable Modbus register functionality.
Q3: Is the module backward compatible with the 3500/90 Communication Gateway?
A3: Yes, it maintains most features of the 3500/90, but replaces primary value Modbus registers with a configurable register utility.
Q4: What is the maximum data update rate for rack values?
A4: The module collects and updates data from all modules in the rack at intervals not exceeding one second.
Q5: What software applications can communicate with the 3500/92?
A5: It communicates with Bently Nevada’s 3500 Configuration Software and Data Acquisition Software via Ethernet using the BNC Host Protocol.
Q6: What LED indicators are provided on the module?
A6: Two LEDs are provided: the OK LED indicates proper operation, and the TX/RX LED indicates communication with other rack modules.
Q7: What are the environmental limits for operation and storage?
A7: The module operates between -30°C and +65°C, and can be stored between -40°C and +85°C, with up to 95% non-condensing humidity.
Q8: What physical slots are required in the 3500 rack to install the 3500/92?
A8: The main module occupies one full-height front slot, while the I/O module occupies one full-height rear slot in the 3500 rack.
