Technical Specifications
| Parameter | Specification |
|---|---|

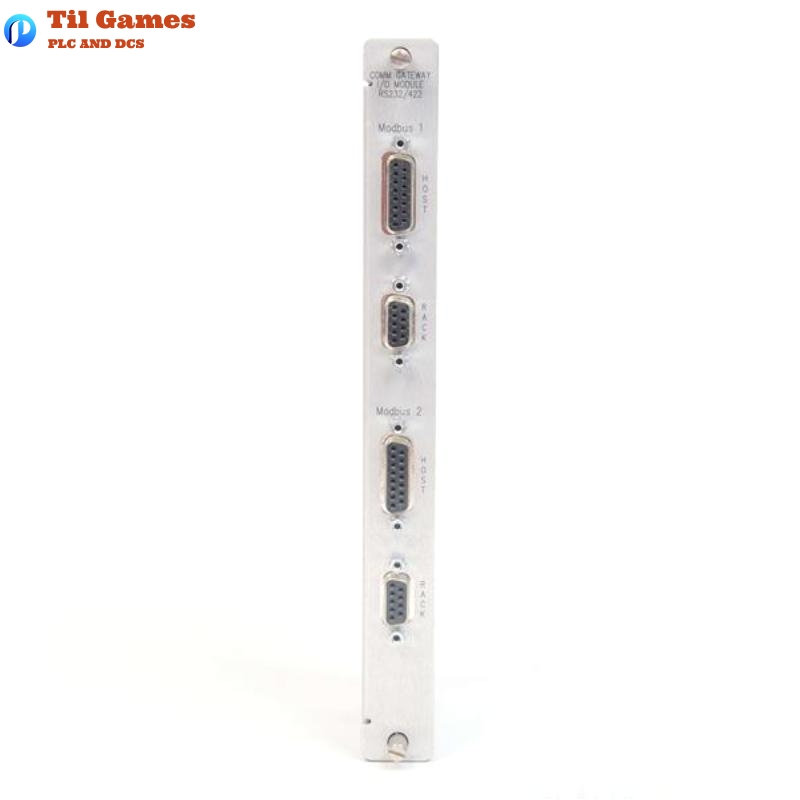

| Model Number | 3500/92-01-01-00 |
| Part Number | 125736-01 |
| I/O Module Type | Modbus RS232/RS422 |
| Power Consumption | 5.0 Watts typical |
| Supported Protocols | Modicon Modbus RTU, Modbus/TCP, Bently Nevada Proprietary Protocol |
| Ethernet Interface | 10BASE-T Ethernet via RJ-45 (IEEE 802.3 compliant) |
| Communication Speed | 10 Mbps Ethernet |
| Data Collection | Internal high-speed rack network; updated within 1 second |
| Output Indicators | OK LED (module status), TX/RX LED (communication status) |
| Module Dimensions | 241 mm x 24.4 mm x 99.1 mm (Height x Width x Depth) |
| Module Weight | 0.44 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Rack Space Requirement | 1 full-height rear slot |
| Applicable Standards | EN 61000-6-2, EN 61000-6-4, EN 61010-1 |
| Hazardous Area Certifications | ATEX, IECEx, cNRTLus, Class I Div 2, Zone 2 T4 |
| Firmware Upgrade Support | Requires 126M4118-01 for compatibility with newer I/O modules |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of communication does the 3500/92-01-01-00 support?
A1: It supports Modbus RTU via RS232/RS422, Modbus/TCP over Ethernet, and Bently Nevada proprietary protocols.
Q2: What kind of connector is used for Ethernet communication?
A2: The module uses a standard RJ-45 connector for 10BASE-T Ethernet networking.
Q3: How often is data updated from the rack?
A3: The communication gateway updates data from all modules in the rack at a maximum interval of 1 second.
Q4: What is the recommended operating temperature range for this module?
A4: The module is designed to operate between -30°C and +65°C.
Q5: Is the module suitable for hazardous environments?
A5: Yes, the module meets ATEX, IECEx, and other hazardous area requirements including Class I Division 2 and Zone 2.
Q6: Does the module require additional firmware upgrades for compatibility?
A6: Yes, older modules may require the 126M4118-01 Firmware Upgrade Kit to function with newer I/O modules.
Q7: How is the status of the module indicated?
A7: There are two LEDs—an OK LED for general operation status and a TX/RX LED for communication activity.
Q8: What are the physical space requirements within the rack for installation?
A8: It requires one full-height rear I/O slot in the 3500 rack system.
