Technical Specifications
| Parameter | Details |
|---|---|

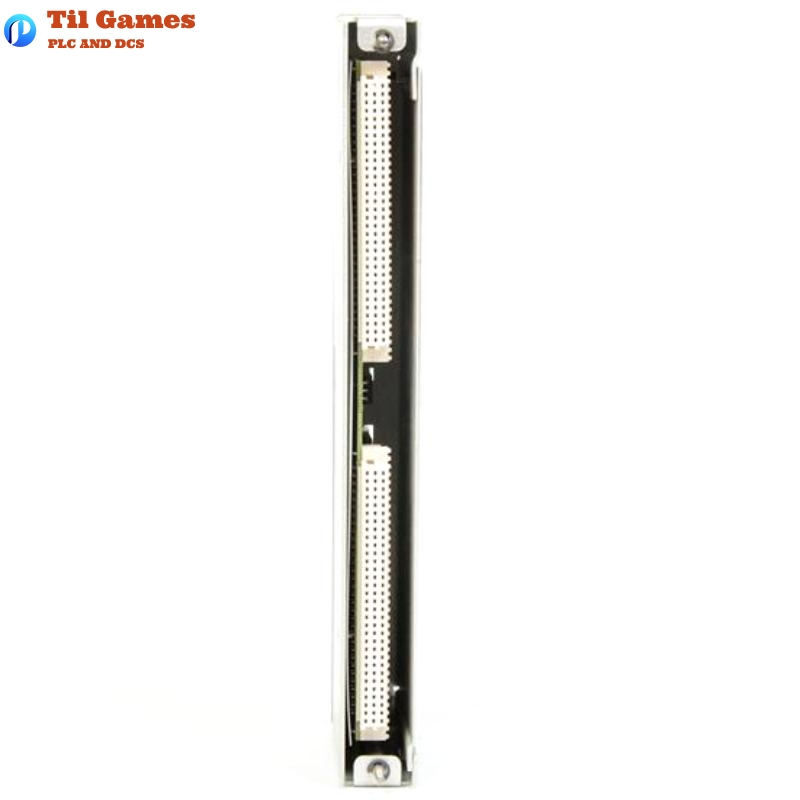

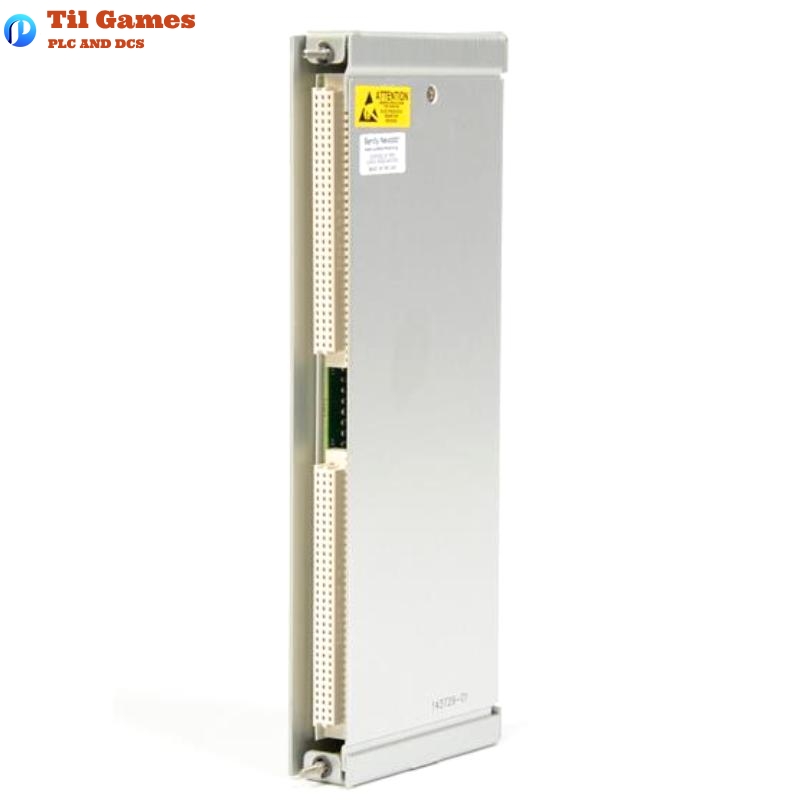

| Model Number | 3500/77M-03-00 |
| Part Number | 143729-01 |
| Function | Cylinder Pressure I/O Module with Internal Terminations |
| Compatible Transducers | Bently Nevada approved third-party pressure transducers (psia) |
| Input Channels | 1 to 4 channels |
| Input Impedance | 50 kΩ |
| Signal Conditioning | Frequency Response: 0 to 5.5 kHz |
| Pressure Accuracy (25°C) | ±0.5% of full-range (0.5 to 10.0 V) |
| Pressure Accuracy (-30 to 65°C) | ±1.0% of full-range (0.5 to 10.0 V) |
| Transducer Power Supply | +23.0 Vdc ±0.8 Vdc, 24.5 mA current limit per channel |
| Output Impedance | 550 Ω |
| Buffered Outputs | One coaxial connector per channel, short-circuit protected |
| Output Signal | Inverted and offset by -2.265 Vdc |
| Power Consumption | 7.8 Watts |
| Measured Variables | Discharge Pressure, Suction Pressure, Max Pressure, Min Pressure, Compression Ratio, Peak Rod Compression, Peak Rod Tension, Degree of Rod Reversal |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Certifications | FCC, EMC (EN 61000-6-2/6-4), EN 61010-1, RoHS 2011/65/EU |
| Hazardous Area Ratings | ATEX, IECEx, cNRTLus, Class I Div 2, Zone 2 (refer to install drawings) |
| Module Dimensions | 241.3 mm (H) × 24.4 mm (W) × 99.1 mm (D) |
| Module Weight | 0.20 kg (0.44 lb) |
| Rack Slot Requirement | 1 full-height rear slot |
FAQ
Frequently Asked Questions (FAQs)
Q1: What type of transducers are supported by the 3500/77M-03-00 I/O Module?
A1: It supports Bently Nevada approved third-party pressure transducers that provide a positive voltage signal in psia.
Q2: How many channels can the 3500/77M-03-00 module handle simultaneously?
A2: The module supports up to four channels for input from pressure transducers.
Q3: What are the key pressure-related measurements this module provides?
A3: It delivers measurements such as suction pressure, discharge pressure, maximum and minimum pressure, compression ratio, peak rod compression, peak rod tension, and degree of rod reversal.
Q4: What is the power supply output provided to transducers?
A4: The module supplies +23.0 Vdc ±0.8 Vdc with a current limit of 24.5 mA per channel.
Q5: What is the purpose of the buffered transducer outputs?
A5: These outputs provide short-circuit protected, inverted, and offset (-2.265 Vdc) signal access for monitoring or diagnostics without disrupting primary signal processing.
Q6: What kind of environmental conditions can the module operate in?
A6: It operates reliably in temperatures from -30°C to +65°C and can be stored between -40°C to +85°C with 95% non-condensing humidity tolerance.
Q7: What are the physical size and weight of the 143729-01 I/O module?
A7: The I/O module measures 241.3 × 24.4 × 99.1 mm and weighs 0.20 kg.
Q8: Can this module be used in hazardous or maritime environments?
A8: Yes, it meets ATEX, IECEx, DNV GL, and ABS standards and is rated for use in Class I, Division 2, Zone 2 hazardous areas, when installed as specified.
