Product Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 1 to 4 proximity probe signals |
| Input Impedance | 10 kΩ |
| Nominal Scale Factor | Rod Position: 0.79, 3.94, or 7.87 mV/µm (20, 100, 200 mV/mil) |
| Rod Drop, Hyper Compressor: 3.94 or 7.87 mV/µm (100 or 200 mV/mil) | |
| Power Consumption | 7.7 W nominal |
| Output Impedance | 510 Ω |
| Transducer Power Supply | -24 Vdc |
| LED Indicators | OK, TX/RX, Bypass |
| Buffered Outputs | Coaxial connector for each channel, short-circuit protected |
| Data Values Monitored | Rod Position, Rod Drop, Hyper Compressor data (e.g. Pk-Pk, Angle, Crank, Gap) |
| Frequency Response | 1 Hz to 600 Hz (Peak-Peak, Average Piston); Gap filter at 0.09 Hz (-3 dB) |
| Accuracy | Typically ±0.33% of full scale (amplitude, gap); ±1% max |
| Angle/crank accuracy: ±1° typical, ±3° max | |
| Alarm Setpoints | Adjustable from 0–100% FS, set using 3500 Rack Config Software |
| Alarm Time Delays | Alert: 1–60s (1s steps); Danger: 0.1s or 1–60s (1s steps) |
| Operating Temperature | -30°C to +65°C (with Proximitor I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm (H x W x D) |
| Weight | 0.91 kg |
| Certifications | FCC, EMC (EN 61000), Safety (EN 61010-1), RoHS, DNV, ABS |
| Hazardous Area Ratings | ATEX, IECEx, cNRTLus, Class I Zone 2, Class I Div. 2 (T4) |
| Mounting | 1 full-height front slot (monitor), 1 full-height rear slot (I/O) |
FAQ
Frequently Asked Questions (FAQ)

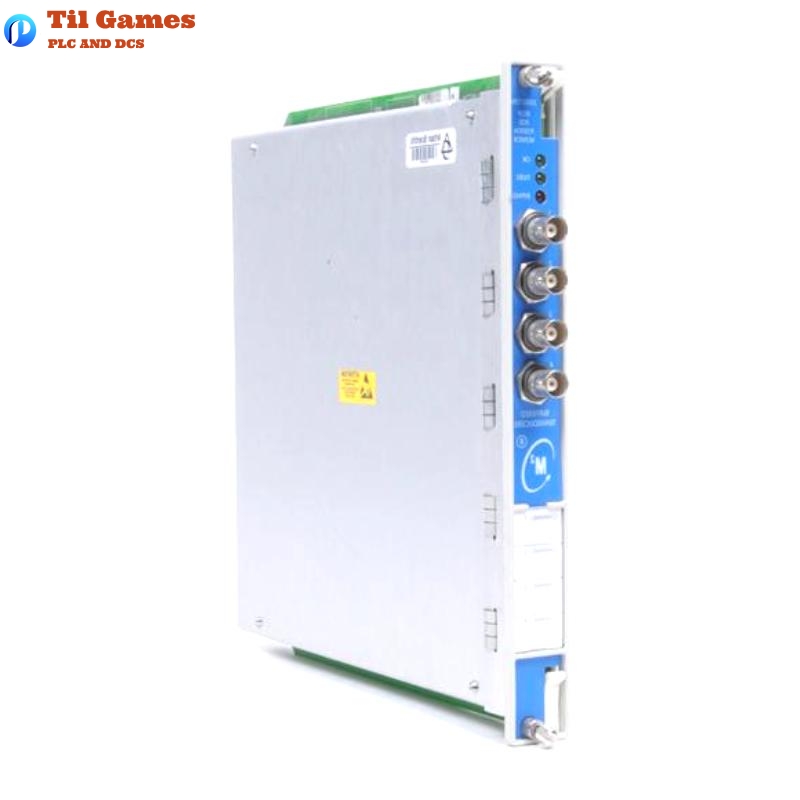

Q1: What does the 3500/72M Recip Rod Position Monitor measure?
A1: It measures rod position, rod drop, and hyper-compressor rod motion parameters such as peak-to-peak amplitude, rod angle, crank angle, gap, and instantaneous piston position.
Q2: How many proximity probes can the 3500/72M accept?
A2: It accepts up to four proximity transducer signals across four channels.
Q3: What is the power consumption of the 3500/72M module?
A3: The power consumption is nominally 7.7 watts.
Q4: What is the typical accuracy of the rod position amplitude measurements?
A4: Accuracy is typically within ±0.33% of full-scale, with a maximum deviation of ±1%.
Q5: What kind of frequency response filters are implemented?
A5: It uses fixed peak-to-peak filters (1–600 Hz), a -3 dB gap filter at 0.09 Hz, and constant Q notch/vector filters for 1X, 2X, and Not 1X components.
Q6: Does the module support alarm configuration?
A6: Yes, it allows alert and danger setpoints to be configured via 3500 Rack Configuration Software, with delays adjustable from 1 to 60 seconds.
Q7: What is the environmental operating range for this unit?
A7: The operating temperature ranges from -30°C to +65°C, depending on the I/O module type, with 95% non-condensing humidity.
Q8: What certifications does the 3500/72M comply with?
A8: It complies with FCC, EMC (EN 61000), LV Directive (EN 61010-1), RoHS, maritime standards (DNV/ABS), and hazardous area approvals including ATEX and cNRTLus.
