Technical Specifications
| Parameter | Specification |
|---|---|

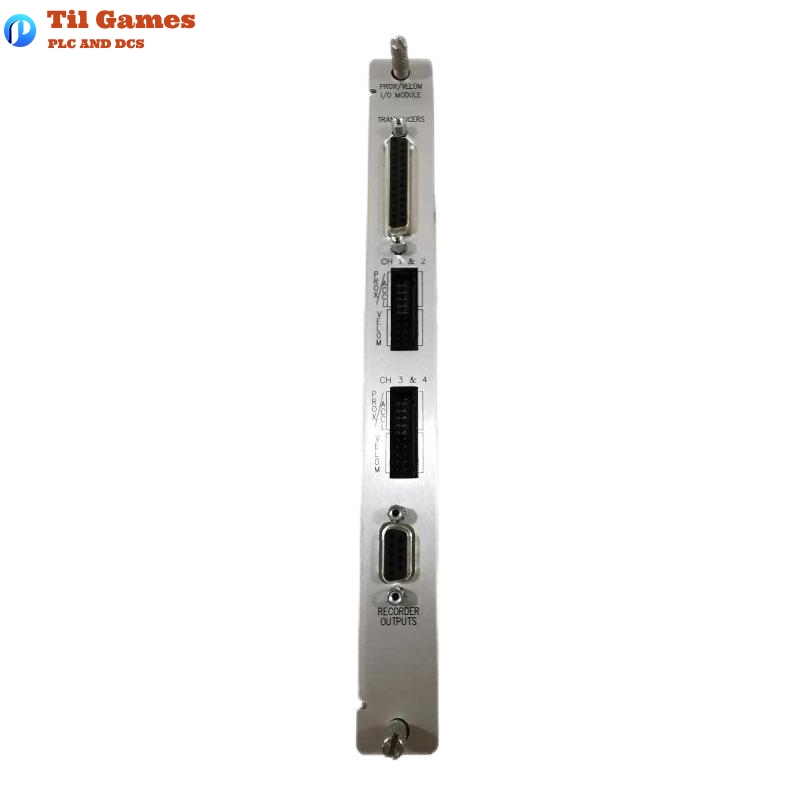

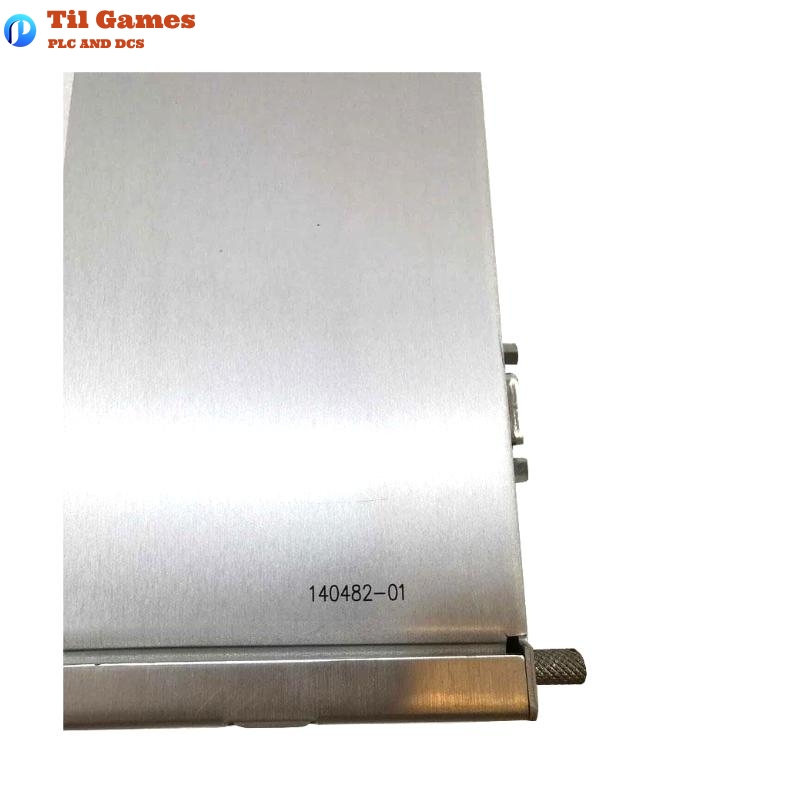

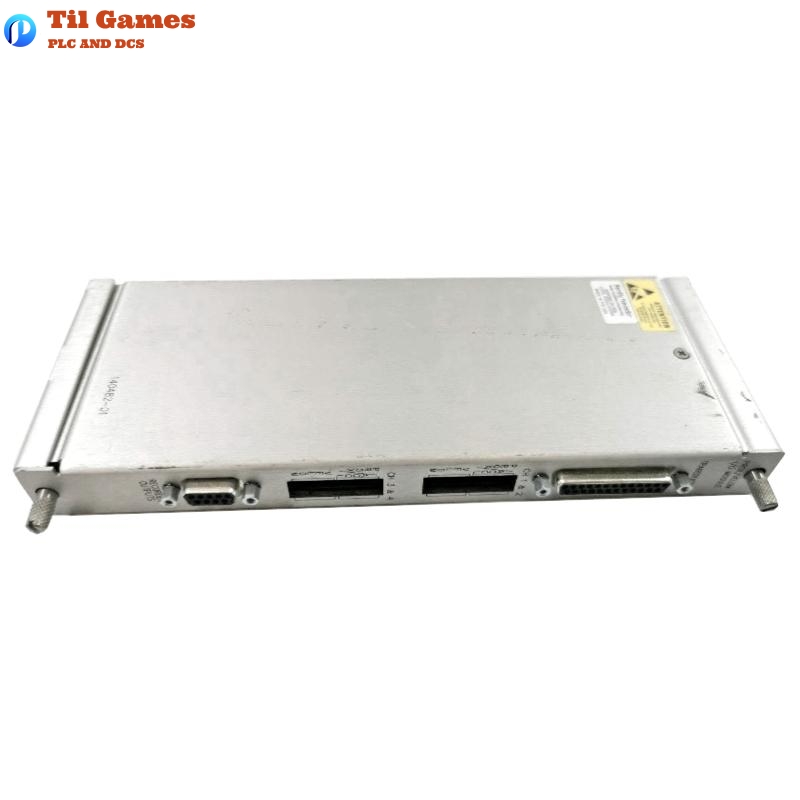

| Model Number | 3500/72M 140482-01 |
| Function | Accepts proximity probe signals, monitors rod position on reciprocating compressors |
| Input Type | 1 to 4 proximity probe signals |
| Input Impedance | 10 kΩ |
| Output Type | Buffered transducer output per channel (short-circuit protected) |
| Transducer Power Supply | -24 Vdc |
| Output Impedance | 510 Ω |
| Power Consumption | 7.7 W nominal |
| Alarm Setpoint Accuracy | Within ±0.13% of desired value |
| Alarm Delay | Alert: 1–60s (1s steps), Danger: 0.1s or 1–60s (1s steps) |
| Operating Temperature | -30°C to +65°C (with standard I/O), 0°C to +65°C (with internal barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Compliance | FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS |
| Certifications | cNRTLus, ATEX/IECEx, ABS, DNV GL |
| Rack Slots Required | 1 full-height front slot (monitor), 1 full-height rear slot (I/O) |
| Signal Conditioning Range | Frequency Response: 1 Hz to 600 Hz (Pk-Pk and Average), Gap Filter: -3 dB @ 0.09 Hz |
| Measurement Accuracy | ±0.33% full-scale typical (position, amplitude, gap, etc.), ±1% max |
| Mechanical Dimensions (I/O Module) | 241.3 mm × 24.4 mm × 99.1 mm (H×W×D) |
| Weight (I/O Module) | 0.20 kg (0.44 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of inputs does the 3500/72M 140482-01 I/O Module support?
A1: It accepts 1 to 4 proximity probe signals, typically used to monitor rod position in reciprocating compressors.
Q2: What is the primary application of the 3500/72M Recip Rod Position Monitor?
A2: The module is designed for monitoring rod position, rod drop, and hyper-compressor displacement in reciprocating compressors in compliance with API 618.
Q3: What are the key output features of this I/O module?
A3: Each channel has a front-panel buffered transducer output with short-circuit protection and a 510 Ω output impedance.
Q4: What signal conditioning capabilities are included?
A4: The module includes fixed and notch filtering for peak-to-peak amplitude, gap, and average piston position. It also features notch filters for 1X and Not 1X amplitudes.
Q5: What accuracy can be expected from measurements such as rod position and gap?
A5: Typical accuracy is within ±0.33% of full-scale, with a maximum deviation of ±1%. Rod position angle and crank angle are typically accurate within ±1°.
Q6: How is alarm management handled?
A6: Alarm thresholds (alert and danger) are configurable via 3500 Rack Configuration Software. Alarm setpoints are adjustable from 0–100% of full-scale values.
Q7: What temperature conditions is the module designed to operate under?
A7: It operates reliably from -30°C to +65°C with standard I/O, and from 0°C to +65°C when using internal barrier I/O modules.
Q8: What are the physical installation requirements?
A8: The I/O module occupies one full-height rear slot in a 3500 rack. It measures 241.3 x 24.4 x 99.1 mm and weighs 0.20 kg.
