Technical Specifications
| Parameter | Specification |
|---|---|

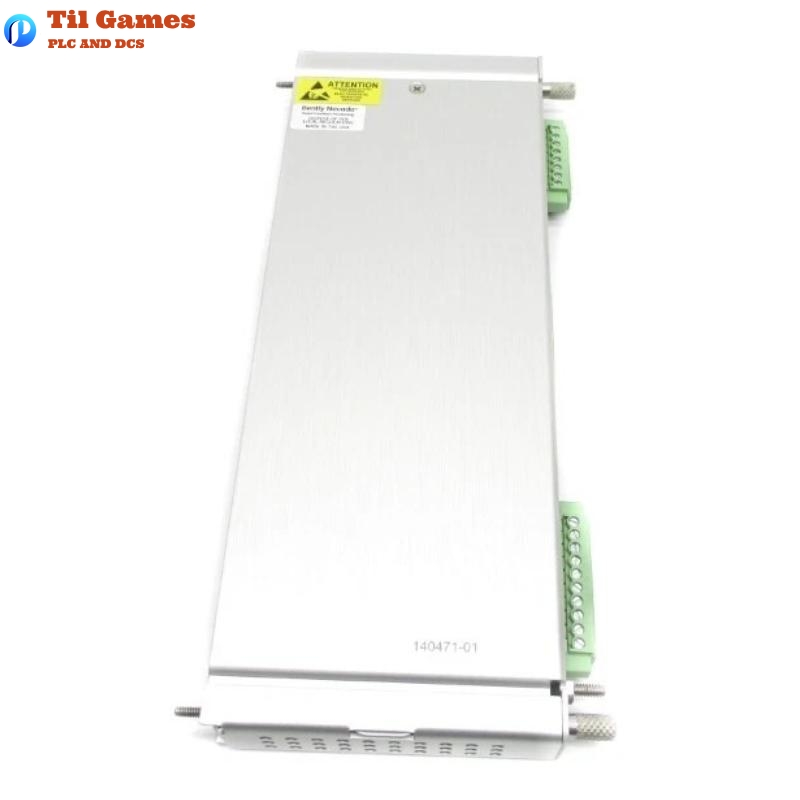

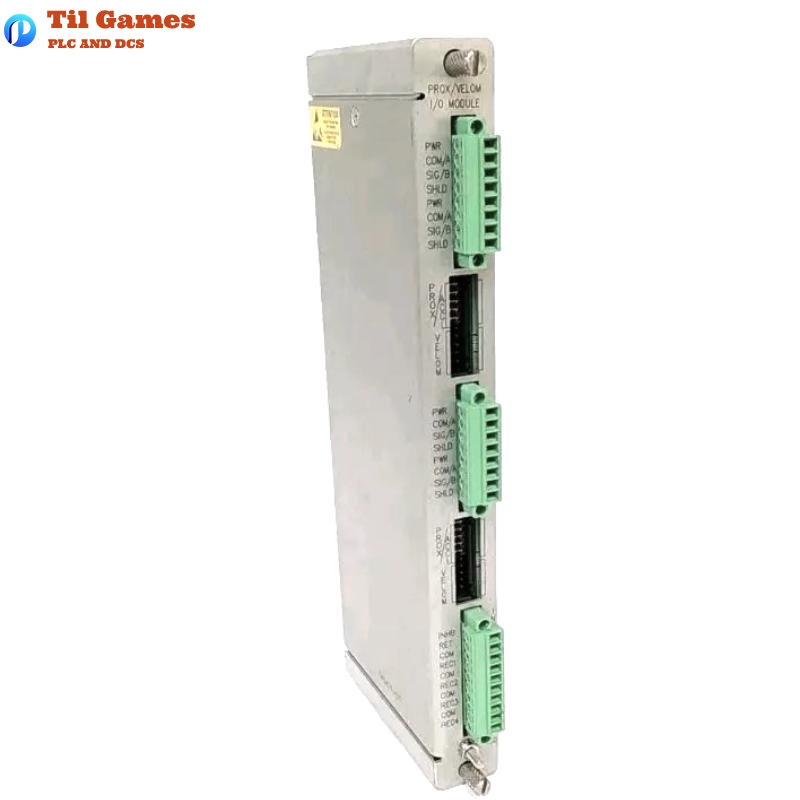

| Model | 3500/72M Recip Rod Position Monitor I/O Module (140471-01) |
| Input Channels | 4 channels (proximity transducer signals) |
| Input Impedance | 10 kΩ |
| Nominal Scale Factors | 0.79 mV/µm, 3.94 mV/µm, 7.87 mV/µm (20/100/200 mV/mil) |
| Transducer Power Supply | -24 Vdc |
| Power Consumption | 7.7 watts (nominal) |
| Output Impedance | 510 Ω (Buffered output) |
| LED Indicators | OK, TX/RX, Bypass |
| Alarm Setpoints | Configurable via software, 0 to 100% of full-scale |
| Alarm Accuracy | ±0.13% of the desired value |
| Alarm Time Delay | Alert: 1–60 sec; Danger: 0.1 or 1–60 sec |
| Frequency Response (Rod Position) | 1–600 Hz (Pk-Pk), -3 dB @ 0.09 Hz (Gap), Constant Q filters for 1X, 2X, Not 1X |
| Accuracy (Rod Position) | ±0.33% full-scale typical, ±1% max; Angle: ±1° typical, ±3° max |
| Environmental – Operating Temp | -30°C to +65°C (Internal/External Term I/O); 0°C to +65°C (Barrier I/O) |
| Environmental – Storage Temp | -40°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Compliance Certifications | FCC, EMC (EN61000), LV (EN61010), RoHS, DNV, ABS |
| Hazardous Area Approvals | Class I, Div 2 / Zone 2 (with or without internal barriers) |
| Dimensions (I/O Module) | 241.3 x 24.4 x 99.1 mm |
| Weight (I/O Module) | 0.20 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 3500/72M 140471-01 I/O Module?
A1: It serves as the input/output interface for the Recip Rod Position Monitor, receiving proximity transducer signals and allowing the monitor to assess rod position, rod drop, or hyper-compressor data.
Q2: How many channels does the I/O module support?
A2: It supports up to 4 input channels, configured in pairs, allowing simultaneous monitoring of different parameters.
Q3: What types of measurements can be made using this module?
A3: Depending on the configuration, it can measure rod position, rod drop, average and instantaneous piston position, crank angle, and associated vibration amplitudes (1X, 2X, Not 1X).
Q4: Is this module suitable for use in hazardous environments?
A4: Yes, the module is certified for use in Class I, Division 2 and Zone 2 hazardous environments, both with and without internal barriers.
Q5: What configuration software is required for setting up the module?
A5: The module must be configured using the 3500 Rack Configuration Software version 3.20 or higher. Specific functions require version 6.0 or later.
Q6: What is the frequency response range for signal processing?
A6: The primary filters operate in the 1 Hz to 600 Hz range. Additional notch and vector filters are applied for 1X, 2X, and Not 1X frequencies.
Q7: How are alarms managed within this module?
A7: Alarms are set via software with thresholds configurable from 0% to 100% of full-scale. There are also programmable time delays for both Alert and Danger alarms.
Q8: Can this module be used with different I/O terminations?
A8: Yes, it is available with internal terminations (model 140471-01), external terminations (model 140482-01), and internal barriers for hazardous area compliance (model 135489-01).
