Technical Specifications
| Parameter | Details |
|---|---|

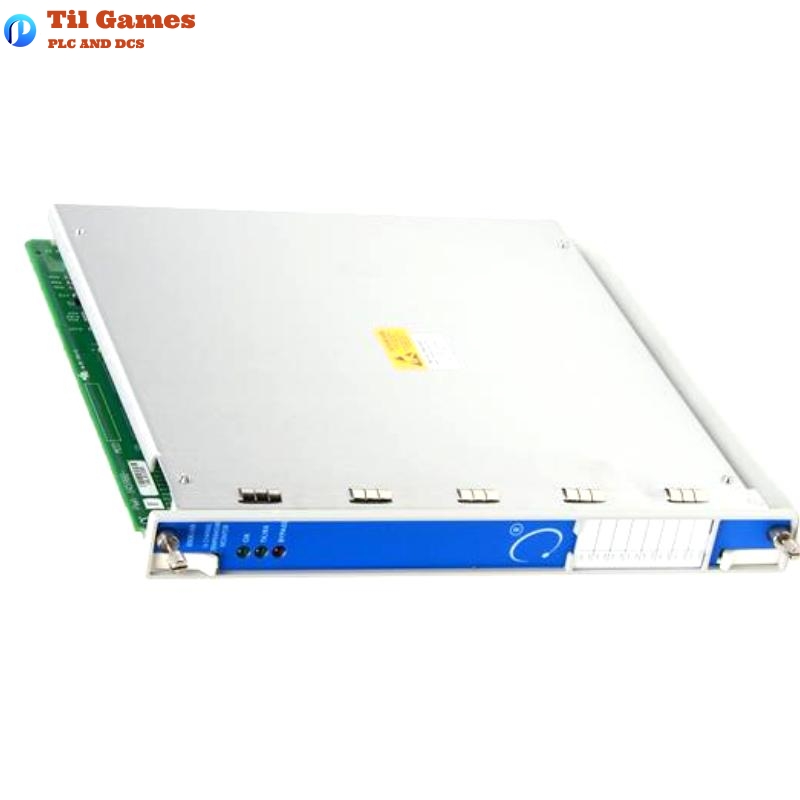

| Model | 3500/65-01-01 |
| Function | 16-channel temperature monitoring module |
| Input Types | RTD (3-wire/4-wire), Thermocouple (isolated tip) |
| Compatible TCs | Type E, J, K, T |
| Compatible RTDs | 100 Ω Pt (α = 0.00385, 0.00392), 120 Ω Ni, 10 Ω Cu |
| Temperature Ranges (TCs) | Type E: -100 to +1000°C, Type J: 0 to +760°C, Type K: 0 to +1370°C, Type T: -160 to +400°C |
| Temperature Ranges (RTDs) | Pt: -200 to +850°C, Ni: -80 to +260°C, Cu: -100 to +260°C |
| Signal Resolution | 1°C or 1°F |
| Accuracy (Internal/External Term) | ±3°C at +25°C (±5.4°F at +77°F) |
| Cold Junction Compensation Accuracy | ±2°C at +25°C (±3.6°F at +77°F) |
| Power Consumption | 3 Watts nominal |
| Input Impedance | >1 MΩ per lead input |
| RTD Current Source | 913 ± 7 µA @ 25°C per transducer |
| Alarm Setpoints | Programmable Alert and Danger (0 to 100% of full-scale) |
| Alarm Delay Times | Alert: 1–60 sec (1s steps); Danger: 1–60 sec (0.5s steps) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Front Panel LEDs | OK, TX/RX, BYPASS |
| Rack Requirements | 1 full-height front and rear slot |
| Dimensions (Main Module) | 241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
| Weight (Main Module) | 0.91 kg (2.0 lbs) |
| Dimensions (I/O Module) | 241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
| Weight (I/O Module) | 0.45 kg (1.0 lb) |
FAQ
Frequently Asked Questions (FAQs)
Q1: What type of temperature sensors can be used with the 3500/65-01-01?
A1: The module supports both RTDs (3-wire and 4-wire) and isolated tip thermocouples, including types E, J, K, and T.
Q2: What is the resolution of temperature measurement in the 3500/65 module?
A2: The resolution is 1°C or 1°F, selectable through configuration.
Q3: How accurate is the temperature measurement?
A3: For both internal and external termination, the accuracy is ±3°C at 25°C ambient. Cold junction compensation accuracy is ±2°C at 25°C.
Q4: Is the 3500/65 module hot-swappable?
A4: No, the module is not hot-swappable. Proper procedures must be followed for replacement or removal during system operation.
Q5: Can this module be used in TMR (Triple Modular Redundant) systems?
A5: Yes, in TMR configurations, three adjacent 3500/65 modules must be installed for redundancy and voting logic.
Q6: Are alarm settings configurable?
A6: Yes, both Alert and Danger alarm setpoints and time delays are fully configurable through software.
Q7: What software version is required to operate this module?
A7: Minimum required versions include 3500/22 Firmware Rev 1.50, 3500/93 Firmware Rev 2.02, and System 1 Software Rev 5.2 with SP2 or later.
Q8: Can the module be used in hazardous environments?
A8: Yes, it is certified for use in Class I, Div 2/Zone 2 hazardous locations under CSA, ATEX, and IECEx standards, provided it’s installed per the specified drawings.
