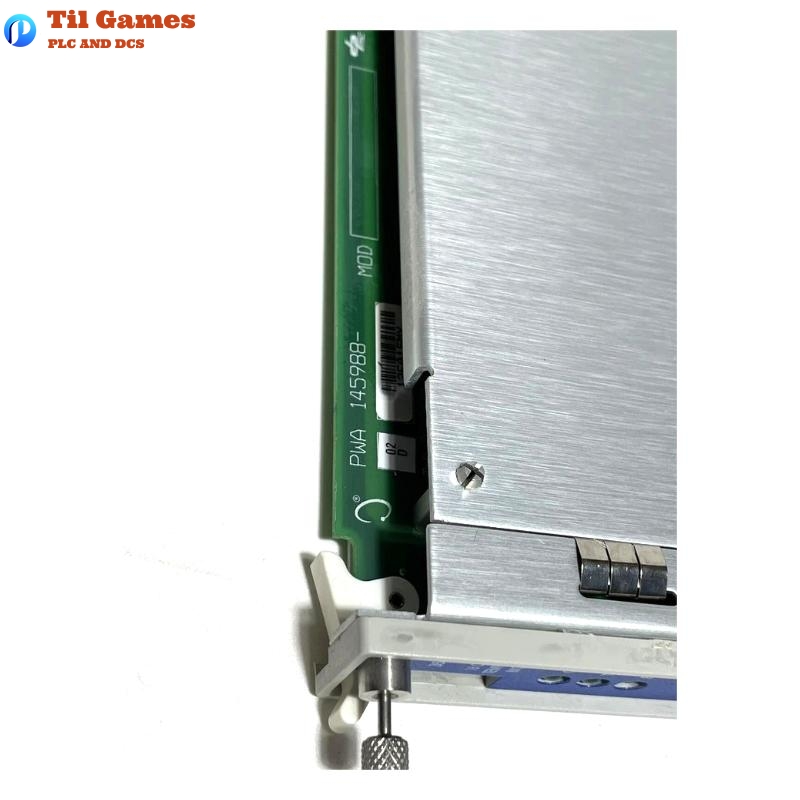

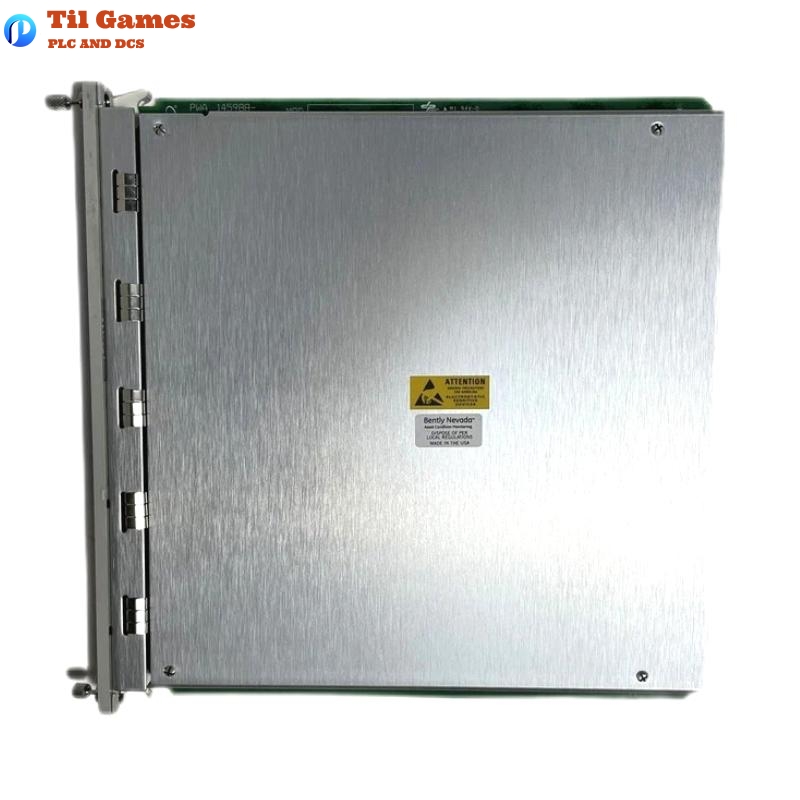

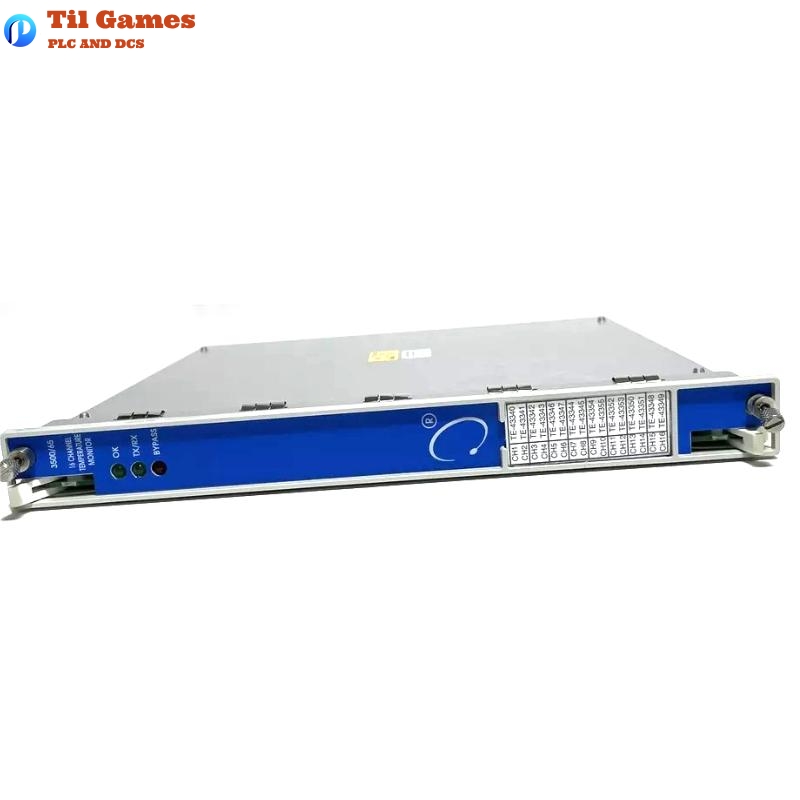

Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 16 Channels |
| Input Types | RTD (3-wire / 4-wire), Thermocouple (Isolated tip) |
| Supported Thermocouple Types | E (-100°C to +1000°C), J (0°C to +760°C), K (0°C to +1370°C), T (-160°C to +400°C) |
| Supported RTD Types | 100 Ω Pt (α=0.00385) -200°C to +850°C, 100 Ω Pt (α=0.00392) -200°C to +700°C |
| 120 Ω Ni -80°C to +260°C, 10 Ω Cu -100°C to +260°C | |
| RTD Current Source | 913 ± 7 µA @ 25°C |
| Input Impedance | >1 MΩ per lead |
| Power Consumption | 3 Watts nominal |
| Signal Resolution | 1°C or 1°F |
| Accuracy (RTD/TC) | ±3°C at +25°C (both internal and external termination) |
| Cold Junction Compensation | ±2°C at +25°C |
| Alarm Setpoints | Configurable for Alert and Danger from 0–100% full-scale |
| Alarm Accuracy | ±0.13% of setpoint |
| Alert Delay | 1 to 60 seconds (1-second increments) |
| Danger Delay | 1 to 60 seconds (0.5-second increments) |
| Environmental Operating Temp. | -30°C to +65°C |
| Environmental Storage Temp. | -40°C to +85°C |
| Main Module Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Main Module Weight | 0.91 kg (2.0 lbs.) |
| I/O Module Dimensions (H x W x D) | 241.3 x 24.4 x 99.1 mm |
| I/O Module Weight | 0.45 kg (1.0 lb.) |
| Rack Requirements | 1 full-height front slot (Main Module), 1 full-height rear slot (I/O Module) |
| Compliance | FCC Part 15, EN 61000-6-2, EN 61000-6-4, EN 61010-1, RoHS, ABS, DNV GL |
| Hazardous Area Ratings | CSA/NRTL/C, ATEX/IECEx (Class I Div 2, Zone 2) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of sensors are compatible with the 3500/65?
A1: The monitor accepts isolated tip thermocouples (E, J, K, T types) and 3-wire or 4-wire RTDs made of platinum (Pt), nickel (Ni), or copper (Cu).
Q2: How accurate are the temperature measurements with this module?
A2: The accuracy is ±3°C at 25°C for both internal and external termination types. Cold junction compensation accuracy is ±2°C.
Q3: Does the 3500/65 require calibration?
A3: No manual calibration is needed. Full-scale ranges and settings are configured via the 3500 Rack Configuration Software.
Q4: Can I configure both Alert and Danger alarms on each channel?
A4: Yes. Both Alert and Danger alarms can be set individually from 0% to 100% of the configured full-scale value.
Q5: What is the RTD excitation current for sensor input?
A5: The RTD current source provides 913 ± 7 µA at 25°C for each transducer.
Q6: Is the module suitable for hazardous area installations?
A6: Yes. The 3500/65 has certifications including CSA, ATEX, and IECEx for Class I, Div 2, and Zone 2 areas.
Q7: What software version is required for configuring the 3500/65?
A7: The system requires 3500/01 software version 3.85 or higher and 3500/22 firmware revision 1.50 or higher.
Q8: Can I mix RTD and TC inputs on the same monitor?
A8: Yes, the monitor supports a mix of RTD and TC inputs across its 16 channels.
