Technical Specifications
| Parameter | Specification |
|---|---|

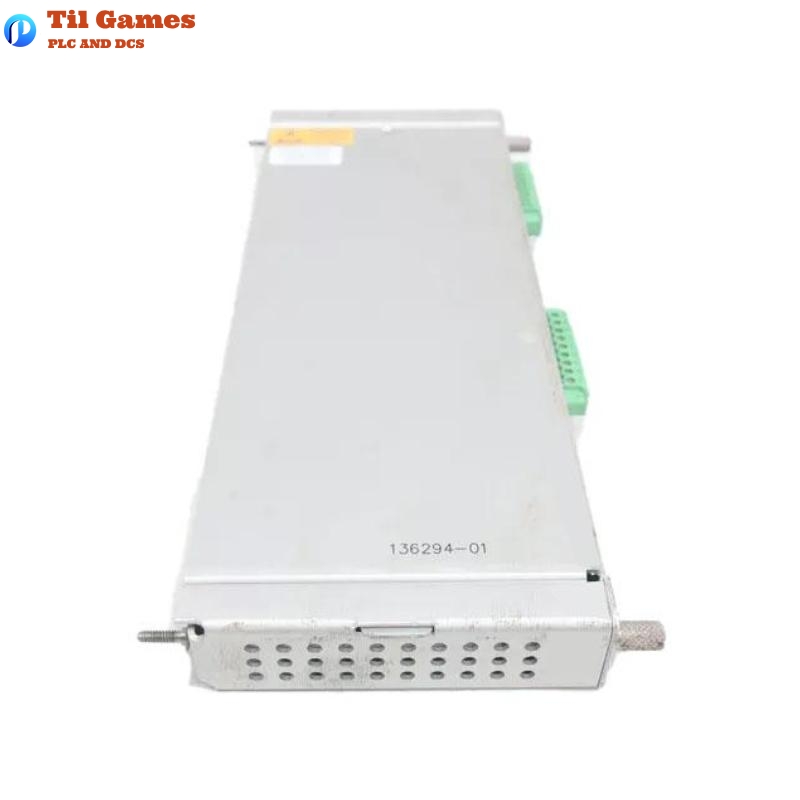

| Product Type | Process Variable Monitor (Isolated I/O Module) |
| Input Signal Type | 4–20 mA Isolated DC |
| Input Impedance | 50 Ω |
| Voltage Compliance | 13.66 V |
| Channel Count | 6 |
| Signal Conditioning Accuracy | ±0.33% typical, ±1% max of full-scale |
| Full Scale Range | Max 20,000 units over input span; min 2V span for voltage input |
| Alarm Setpoints | User-set Alert & Danger, 0–100% of full-scale |
| Alarm Accuracy | ±0.13% of desired value |
| Alarm Time Delay (Alert) | 1–60 seconds (1-second intervals) |
| Alarm Time Delay (Danger) | 1–60 seconds (0.5-second intervals) |
| Output Indicators | OK, TX/RX, Bypass LEDs |
| Transducer Power (Internal Barrier) | +24 Vdc ±5%, 250 mA max, fused |
| Power Consumption | 7.0 Watts (typical) |
| Proportional Output Units | Configurable units via software |
| Operating Temp (w/o barrier) | -30°C to +65°C (-22°F to +149°F) |
| Operating Temp (with barrier) | 0°C to +65°C (+32°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Tolerance | 95% RH, non-condensing |
| Monitor Module Dimensions (H×W×D) | 241.3 mm x 24.4 mm x 241.8 mm |
| Monitor Module Weight | 0.82 kg |
| I/O Module Dimensions (H×W×D) | 241.3 mm x 24.4 mm x 99.1 mm |
| I/O Module Weight (Isolated I/O) | 0.20 kg |
| Slot Requirements | 1 front slot (monitor), 1 rear slot (I/O module) |
| Isolation Voltage (Isolated I/O) | 500 Volts |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signals does the 3500/62-03-00 module support?
A1: This module supports isolated 4–20 mA DC current signals for process variable monitoring.
Q2: Can the user configure alarm setpoints for different ranges?
A2: Yes, both Alert and Danger alarms can be set from 0 to 100% of the full-scale range. They are user-programmable via configuration software.
Q3: Does the 3500/62-03-00 require calibration?
A3: No calibration is required. Full-scale ranges are set through the 3500 Rack Configuration Software.
Q4: What is the isolation rating for this isolated I/O module?
A4: The isolation rating is 500 Volts for the 4–20 mA isolated input type.
Q5: What is the operating temperature range of the module with isolated I/O?
A5: The operating temperature range is -30°C to +65°C when using Internal/External Termination I/O modules.
Q6: What is the dimensional size and weight of the I/O module?
A6: The I/O module measures 241.3 mm x 24.4 mm x 99.1 mm and weighs approximately 0.20 kg.
Q7: What do the front panel LEDs indicate?
A7: The OK LED confirms normal operation, TX/RX LED indicates communication status, and Bypass LED shows if the monitor is bypassed.
Q8: Can this module be used in TMR (Triple Modular Redundant) systems?
A8: Yes, it can be used in TMR configurations where three modules are installed adjacently to support redundancy and voting logic.
