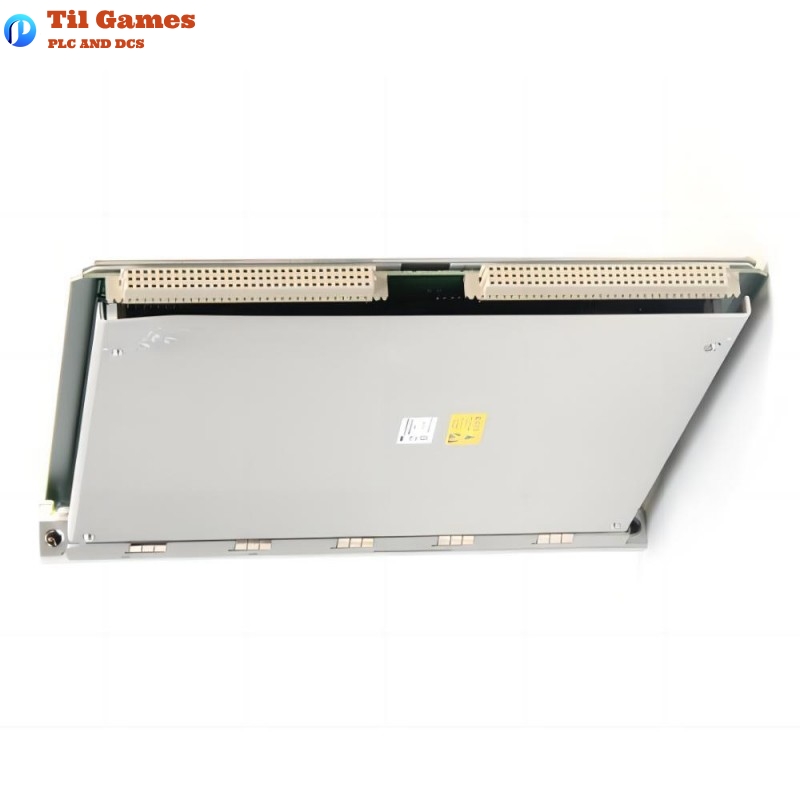

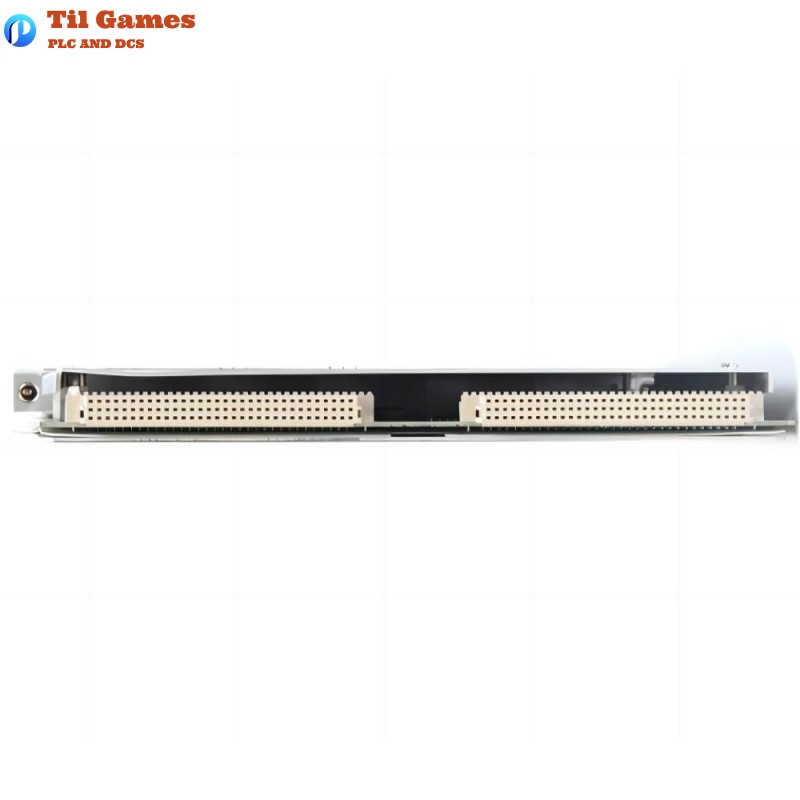

Technical Specifications
| Category | Parameter | Details |
|---|---|---|
| Inputs | Signal Type | ±10 Vdc, 4-20 mA (Isolated and Non-Isolated with Barrier) |
| Voltage Input Range | -10 Vdc to +10 Vdc | |
| Current Input Range | 4-20 mA DC | |
| Voltage Compliance (4-20 mA Barrier I/O) | 13.66 V | |
| Isolation (4-20 mA ISO I/O only) | 500 V | |
| Input Impedance | 1 MΩ (±10V I/O), 50 Ω (4-20 mA I/O) | |
| Signal Conditioning | Accuracy | ±0.33% of full scale (typical), ±1% (maximum) |
| Full Scale Range | Max: 20,000 units over input span; Min span for voltage: 2 V | |
| Calibration | No calibration required | |
| Power | Power Consumption | 7.0 W (typical) |
| External Transducer Power (Internal Barrier I/O only) | +24 Vdc ±5% @ 250 mA max (fused) | |
| Alarms | Setpoints | User-defined Alert and Danger setpoints (0–100% full scale) |
| Setpoint Accuracy | ±0.13% of setpoint value | |
| Alarm Time Delays | Alert: 1–60 sec (1 sec step), Danger: 1–60 sec (0.5 sec step) | |
| Environmental | Operating Temp (Ext Term / Int Term I/O) | -30°C to +65°C |
| Operating Temp (Internal Barrier I/O) | 0°C to +65°C | |
| Storage Temp | -40°C to +85°C | |
| Humidity | 95% RH, non-condensing | |
| Module Dimensions & Weight | Main Module Dimensions | 241.3 x 24.4 x 241.8 mm |
| Main Module Weight | 0.82 kg | |
| I/O Module Dimensions (w/o barrier) | 241.3 x 24.4 x 99.1 mm | |
| I/O Module Weight (w/o barrier) | 0.20 kg | |
| I/O Module Weight (w/ barrier) | 0.46 kg | |

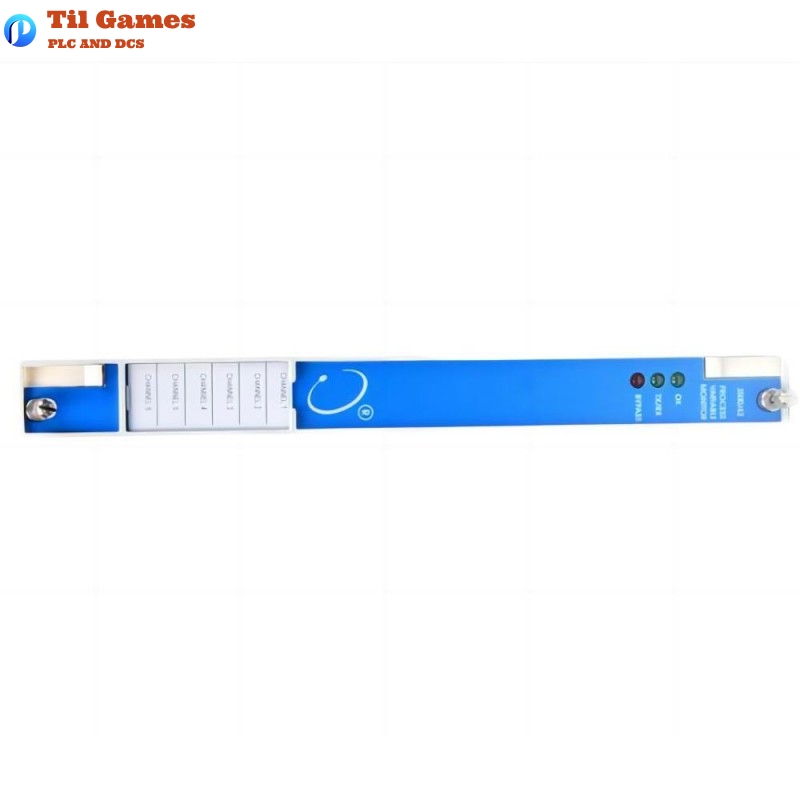

| Indicators | Front Panel LEDs | OK, TX/RX, Bypass |
| Rack Space | Monitor Module | 1 full-height front slot |
| I/O Modules | 1 full-height rear slot |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals are compatible with the 3500/62 Process Variable Monitor?
A1: The monitor supports ±10 Vdc inputs, isolated 4-20 mA inputs, and non-isolated 4-20 mA inputs with intrinsic safety barriers.
Q2: Is calibration required for the 3500/62 module after installation?
A2: No calibration is required. All channels are configured through the 3500 Rack Configuration Software.
Q3: What is the typical accuracy of the module when measuring process variables?
A3: The typical accuracy is within ±0.33% of full scale, and the maximum is ±1%.
Q4: Can the 3500/62 be used in hazardous environments?
A4: Yes, it is certified for use in Class I, Division 2 and Zone 2 hazardous areas, with appropriate I/O module options and installation drawings.
Q5: What are the alarm configuration capabilities of this module?
A5: Users can configure both Alert and Danger setpoints from 0% to 100% of full-scale value, with accuracy of ±0.13%.
Q6: What environmental conditions can the 3500/62 operate in?
A6: Depending on the I/O module, it operates in temperatures ranging from -30°C to +65°C, with 95% non-condensing humidity tolerance.
Q7: How is the module powered, and what are the power requirements?
A7: The monitor typically consumes 7.0 W. For internal barrier I/O, it provides +24 Vdc power to transducers up to 250 mA max.
Q8: How much rack space does this module occupy?
A8: The monitor requires one full-height front slot, and its corresponding I/O module requires one full-height rear slot.
