Technical Specifications
| Parameter | Specification |
|---|---|
| Input Types | ±10 Vdc (Voltage Input) |
| Input Range | -10 Vdc to +10 Vdc |
| Input Impedance | 1 MΩ |
| Power Consumption | 7.0 Watts (typical) |
| Signal Conditioning | Field-configurable, no calibration required; accuracy ±0.33% typical, ±1% max |
| Full Scale Range | Max 20,000 units mapped over input span; min span for voltage = 2 Volts |
| Alarm Setpoints | User-defined Alert and Danger levels; 0–100% of full scale; ±0.13% accuracy |
| Alarm Time Delays | Alert: 1–60s (1s steps), Danger: 1–60s (0.5s steps) |
| External Transducer Power | +24 Vdc ±5% @ 250 mA (for Internal Barrier I/O only) |
| LED Indicators | OK, TX/RX, Bypass |
| Operating Temperature | -30°C to +65°C (w/o barriers), 0°C to +65°C (w/ internal barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Module Dimensions (I/O Module) | 241.3 x 24.4 x 99.1 mm |
| Module Weight (I/O Module) | 0.20 kg |
| Rack Space Requirement | One full-height rear slot |
| Isolation (if applicable) | 500 V (for 4–20 mA isolated only) |
| Certifications | FCC Part 15, CE (EN 61000-6-2, EN 61000-6-4), RoHS, ATEX, CSA, DNV, ABS |
FAQ
FAQ (Frequently Asked Questions)

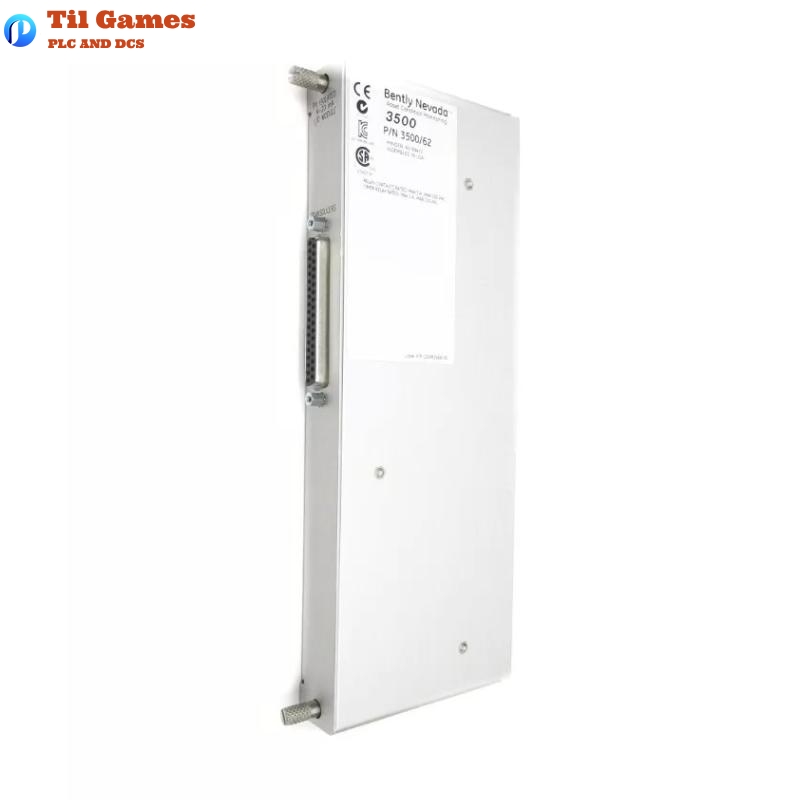

Q1: What types of signals can the 3500/62-01-00 I/O Module process?
A1: This module processes analog voltage signals in the range of -10 Vdc to +10 Vdc.
Q2: Does this module support current inputs like 4-20 mA?
A2: No, the 3500/62-01-00 (part number 136499-01) specifically supports ±10 Vdc voltage inputs. For 4-20 mA inputs, other model variants must be used.
Q3: What is the input impedance for voltage measurements?
A3: The input impedance for ±10 Vdc input is 1 MΩ, ensuring minimal load on the measured circuit.
Q4: How accurate are the signal readings on this module?
A4: Accuracy is typically within ±0.33% of full scale and not worse than ±1%.
Q5: Is the I/O module hot-swappable?
A5: No, the module is not hot-swappable. Power should be turned off during installation or removal to ensure safety.
Q6: What are the LED indicators used for on the front panel?
A6: The front panel has three LEDs: OK (module health), TX/RX (communication status), and Bypass (bypass mode active).
Q7: Can this module be used in hazardous area installations?
A7: Yes, it supports hazardous area certifications including ATEX and CSA when installed per the specified drawings and with appropriate barriers.
Q8: What is the minimum signal span for proper voltage measurement?
A8: The minimum required signal span for voltage input is 2 Volts, to ensure accurate scaling and alarm setting.
