Technical Specifications
| Parameter | Specification |
|---|---|

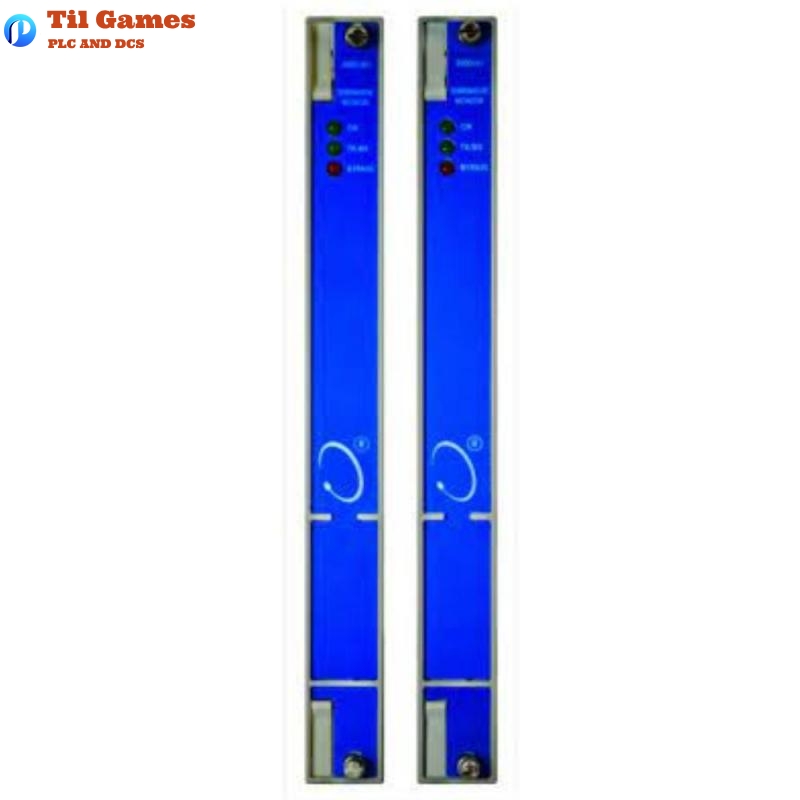

| Model Number | 3500/60-01-00 |
| Channels | 6 channels (RTD or TC configurable) |
| Input Signal Types | RTD or Thermocouple |
| Input Impedance | 10 MΩ per lead input |
| RTD Current Source | 925 ±15 µA @ 25°C per transducer |
| Power Consumption | 7 W (nominal) |
| Transducer Types Supported | RTD: 100Ω Pt (α=0.00385, α=0.00392), 120Ω Ni, 10Ω Cu TC: Type E, J, K, T |
| RTD Measurement Range | -200°C to +850°C (Pt 100Ω) |
| Thermocouple Measurement Range | Type E: -100°C to +1000°C Type J: -18°C to +760°C Type K: -18°C to +1370°C Type T: -160°C to +400°C |
| Channel-to-Channel Isolation | 250 Vdc (only in isolated I/O modules) |
| System Isolation (I/O module) | 500 Vdc (isolated versions only) |
| Output | Front LEDs: OK, TX/RX, Bypass |
| Recorder Output | Not available in 3500/60 version |
| Voltage Compliance (Recorder) | N/A (Not applicable for 3500/60) |
| Measurement Resolution | 1°C or 1°F |
| Measurement Accuracy | ±3°C at 25°C (varies based on I/O configuration) |
| Cold Junction Compensation Accuracy | ±1°C at 25°C |
| Alarm Setpoints | Configurable from 0–100% of full scale |
| Alarm Time Delay | Alert: 1–60 s (1 s steps) Danger: 1–60 s (0.5 s steps) |
| Operating Temperature | -30°C to +65°C (with standard I/O) |
| Storage Temperature | -40°C to +85°C |
| Module Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 241.8 mm |
| Module Weight | 0.91 kg |
| Rack Slot Requirements | 1 full-height front slot (monitor), 1 full-height rear slot (I/O module) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of temperature sensors can be connected to the 3500/60-01-00 module?
A1: The module supports a variety of RTD types including 100Ω platinum (α=0.00385 and α=0.00392), 120Ω nickel, and 10Ω copper, as well as thermocouples of types E, J, K, and T.
Q2: How many channels are available on the 3500/60-01-00 module?
A2: The module provides six configurable input channels, each capable of accepting either RTD or thermocouple signals.
Q3: Does the 3500/60-01-00 module include recorder outputs?
A3: No, recorder outputs are only available on the 3500/61 module. The 3500/60 does not support this feature.
Q4: What is the input impedance per lead on the module?
A4: The input impedance is 10 MΩ for each lead, which is suitable for accurate temperature measurements with minimal loading effects.
Q5: Can RTD and thermocouple sensors be mixed on a single module?
A5: Yes, if using a non-isolated RTD/TC I/O module, each channel can be configured individually to accept RTD or thermocouple input.
Q6: What is the accuracy of temperature measurement for this module?
A6: Accuracy varies based on configuration, but typically is ±3°C at 25°C. Isolated modules with external termination may offer ±1°C accuracy at 25°C.
Q7: What are the environmental operating limits for the module?
A7: It operates in ambient temperatures from -30°C to +65°C and can be stored at temperatures between -40°C and +85°C.
Q8: What certifications does the 3500/60-01-00 module hold?
A8: The module complies with FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS Directive 2011/65/EU, and is designed to meet IEC 62443 for cybersecurity. It also holds marine and hazardous area certifications including CSA/NRTL/C and ATEX/IECEx depending on the I/O configuration.
