Technical Specifications
| Parameter | Specification |
|---|---|
| Input Signal Type | Proximity probe or magnetic pickup |
| Input Signal Range | +10.0 V to -24.0 V (internally limited) |
| Input Impedance | 20 kΩ |
| Power Consumption | 8.0 W (typical) |
| Transducers Supported | 3300/7200 Series Proximitor, 3300 RAM, Magnetic pickups |
| Buffered Transducer Output | 1 coaxial connector per module, short circuit and ESD protected |
| Output Impedance | 550 Ω |
| Recorder Output | 4–20 mA, proportional to full-scale rpm |
| Voltage Compliance | 0 to +12 Vdc across load, 0 to 600 Ω load resistance |
| Resolution | 0.3662 µA/bit ±0.25% (room temp), ±0.7% (over full temp range), update ~100ms |
| Relay Type | SPDT (Single-Pole Double-Throw) |
| Max Switched Power | 120 W DC, 600 VA AC |
| Max Switched Current | 5 A |
| Max Switched Voltage | 30 Vdc, 250 Vac |
| Relay Contact Life | 100,000 operations at 5 A, 24 Vdc or 120 Vac |
| Speed Range | 1 to 255 events/rev, up to 99,999 rpm, max frequency: 20 kHz |
| Min Frequency (Proximity) | 0.0167 Hz |
| Min Frequency (Magnetic Pickup) | 3.3 Hz |
| RPM Accuracy | <100 rpm: ±0.1 rpm; 100–10,000 rpm: ±1 rpm; >10,000 rpm: ±0.01% |
| Auto Threshold | ≥1 Vp-p signal, frequency ≥0.0167 Hz |
| Manual Threshold Range | +9.9 Vdc to -23.9 Vdc, ≥500 mVp-p signal |
| Hysteresis | 0.2 to 2.5 V user selectable |
| Alarm Setpoints | Under, Over, Danger (Overspeed); adjustable 0–100% full-scale |
| Alarm Delay | <30 ms above 300 Hz |
| Environmental – Operating Temp | -30°C to +65°C (-22°F to +149°F) |
| Environmental – Storage Temp | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Certifications | CSA/NRTL/C Class I Div 2 Groups A, B, C, D |
| Monitor Module Dimensions | 241.3 x 24.4 x 241.8 mm |
| Monitor Module Weight | 0.82 kg |
| I/O Module Dimensions | 241.3 x 24.4 x 99.1 mm |
| I/O Module Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQ)

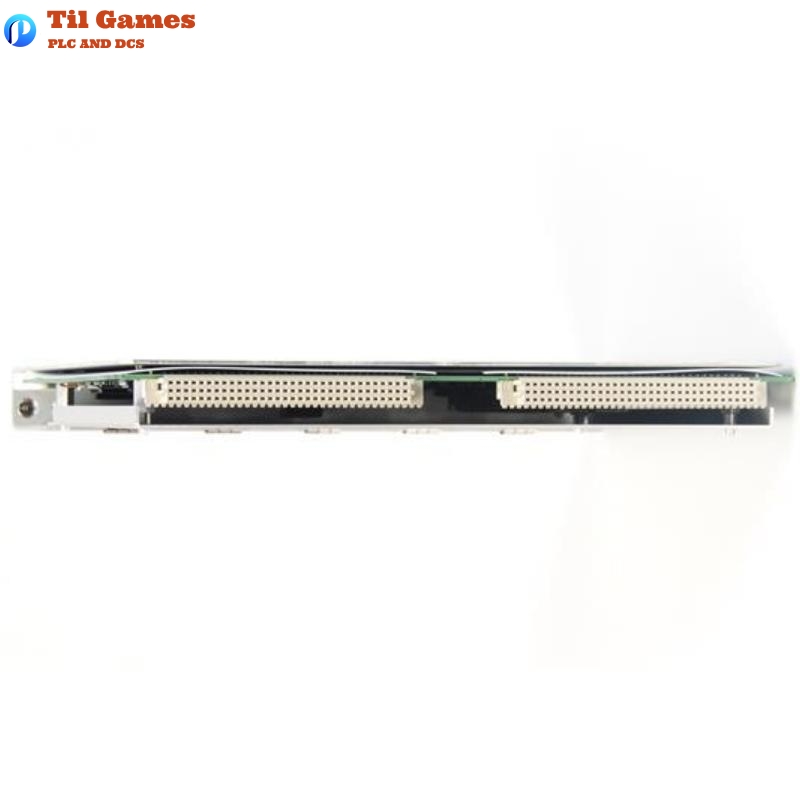

Q1: What is the function of the Bently Nevada 3500/53-02-00 module?
A1: It is used for overspeed protection in rotating machinery by monitoring speed via proximity or magnetic pickups and activating alarms or shutdowns when thresholds are exceeded.
Q2: How many channels does the 3500/53 support?
A2: It supports two- or three-channel configurations for 2-out-of-2 or 2-out-of-3 voting logic, enhancing redundancy and reliability.
Q3: Which transducers are compatible with this module?
A3: Compatible transducers include Bently Nevada 3300/7200 Series Proximitor sensors and magnetic pickups.
Q4: What is the maximum rotational speed the module can monitor?
A4: The system supports up to 99,999 rpm, accommodating high-speed applications with input frequencies up to 20 kHz.
Q5: Can the alarm levels be customized for specific machinery?
A5: Yes, the under, over, and overspeed alarm setpoints are configurable via software, with values adjustable from 0% to 100% of full-scale speed.
Q6: What is the resolution of the 4–20 mA output?
A6: The resolution is 0.3662 µA per bit, with a typical error margin of ±0.25% at room temperature.
Q7: Is the module suitable for hazardous environments?
A7: Yes, it has CSA/NRTL/C certification for use in Class I, Div 2, Groups A-D environments, up to +65°C.
Q8: What are the dimensions and weight of the monitor module?
A8: The monitor module measures 241.3 x 24.4 x 241.8 mm and weighs 0.82 kg.
