Technical Specifications
| Parameter | Specification |
|---|---|

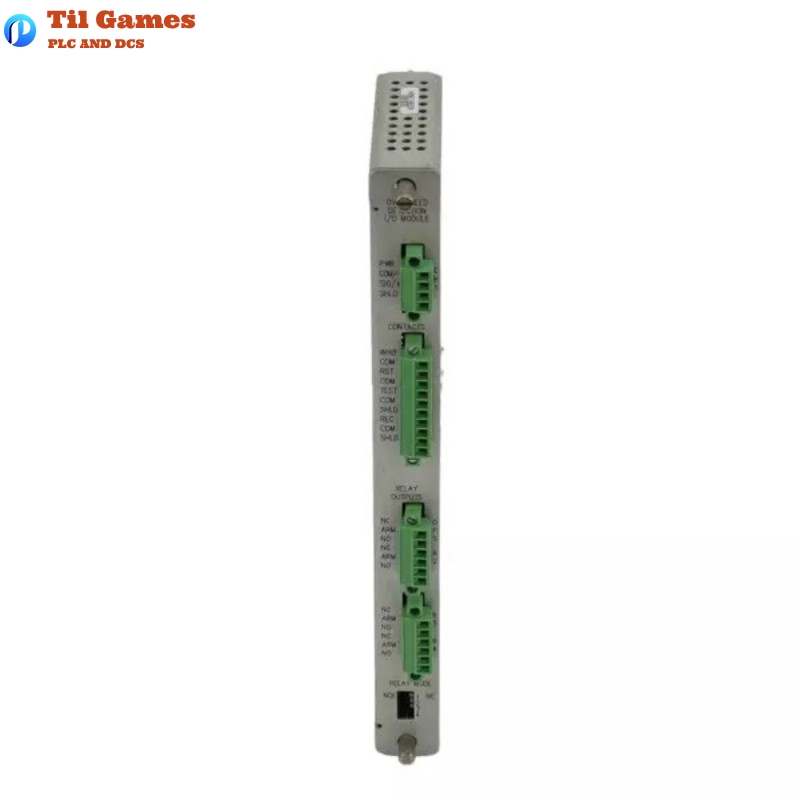

| Part Number | 133396-01 |
| Module Type | Overspeed Detection I/O Module |
| Compatible System | Bently Nevada 3500 Series |
| Inputs | 1 transducer input (Proximity probe or magnetic pickup) |
| Input Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ |
| Transducer Power Supply | -24 Vdc, 40 mA max |
| Power Consumption | 8.0 W typical |
| Buffered Output | Coaxial connector, short circuit and ESD protected |
| Output Impedance | 550 Ω |
| Recorder Output | +4 to +20 mA (0–600 Ω load), 0 to +12 Vdc compliance |
| Resolution (Recorder Output) | 0.3662 µA per bit ±0.25% at room temp, ±0.7% over full temp range |
| Update Rate | ~100 ms |
| Relays | SPDT, epoxy sealed, 250 Vrms arc suppressors |
| Max Switched Power | 120 W DC / 600 VA AC |
| Max Switched Current | 5 A |
| Min Switched Current | 100 mA @ 5 Vdc |
| Max Switched Voltage | 30 Vdc / 250 Vac |
| Contact Life | 100,000 cycles @ 5 A, 24 Vdc or 120 Vac |
| Frequency Range | 0.0167 Hz to 20 kHz (1 to 255 events/rev) |
| RPM Range | Up to 99,999 rpm |
| RPM Accuracy | ±0.1 rpm (<100 rpm), ±1 rpm (100–10,000 rpm), ±0.01% (10,000–99,999 rpm) |
| Alarm Response Time | <30 ms (above 300 Hz) |
| Alarm Types | Alert, Danger (Overspeed), programmable |
| Environmental Sealing | Epoxy sealed |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95% RH, non-condensing |
| EMC Compliance | EN 55011, EN 61000 standards |
| Safety Compliance | EN 61010-1 |
| Hazardous Location Rating | CSA/NRTL/C Class I, Div 2, Groups A-D, T4 |
| Dimensions (H x W x D) | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signal does the 3500/53-02-00 I/O Module accept?
A1: It accepts a single transducer signal from either a proximity probe or magnetic pickup with a signal range of +10.0 V to -24.0 V.
Q2: What is the resolution and update rate of the recorder output?
A2: The resolution is 0.3662 µA per bit with an update rate of approximately 100 ms. Accuracy is ±0.25% at room temperature.
Q3: What is the maximum rpm range supported by the module?
A3: The module supports up to 99,999 rpm with a maximum input frequency of 20 kHz.
Q4: Can the module detect both underspeed and overspeed conditions?
A4: Yes, alarm setpoints can be configured for both under and overspeed conditions, including an additional danger level for overspeed.
Q5: What are the environmental operating limits of this I/O module?
A5: It operates between -30 °C to +65 °C and stores between -40 °C to +85 °C. It can handle up to 95% non-condensing humidity.
Q6: How is the transducer output protected?
A6: The buffered transducer output is short-circuit and ESD protected, ensuring signal integrity and safety.
Q7: What type of relays are used in the module, and what are their ratings?
A7: The module uses SPDT relays rated up to 5 A, 120 W DC or 600 VA AC, with a contact life of 100,000 cycles.
Q8: Is the I/O module certified for use in hazardous locations?
A8: Yes, it is CSA/NRTL/C certified for Class I, Division 2, Groups A-D environments with a T4 temperature rating.
