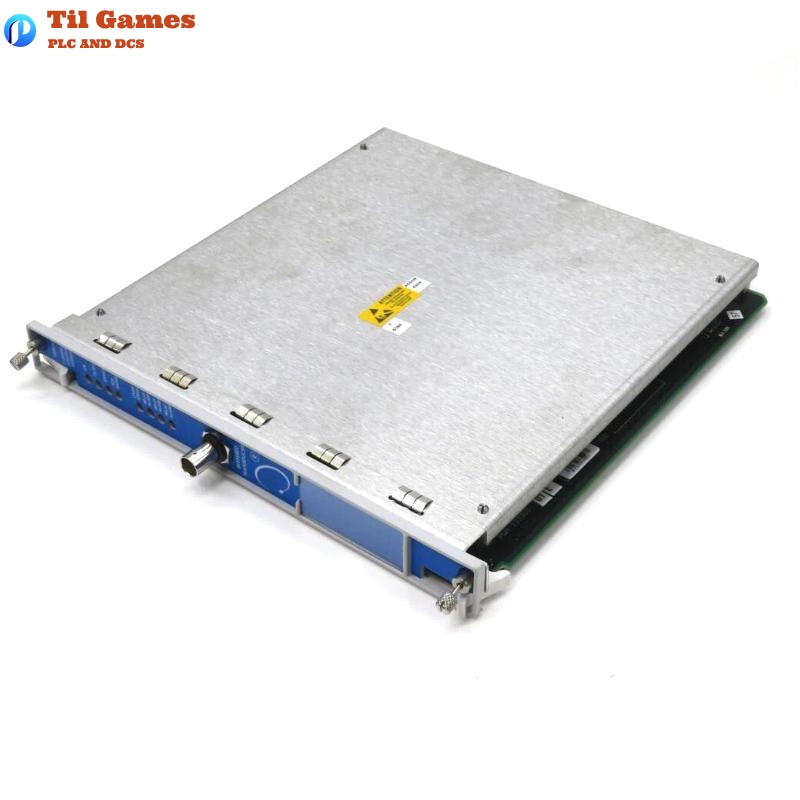

Technical Specifications
| Parameter | Description |
|---|---|
| Input Signal | +10.0 V to -24.0 V from proximity probes or magnetic pickups |
| Input Impedance | 20 kΩ |
| Power Consumption | 8.0 W (typical) |
| Supported Transducers | 3300 series Proximitor®, Magnetic pickups |
| Buffered Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc, max 40 mA |
| Recorder Output | +4 to +20 mA (proportional to full-scale rpm range) |
| Voltage Compliance (Current Output) | 0 to +12 Vdc across load (0 to 600 Ω) |
| Output Resolution | 0.3662 µA/bit ±0.25% error at room temp |
| Relay Type | SPDT (Single-Pole Double-Throw), epoxy sealed |
| Max Relay Power (DC) | 120 W |
| Max Relay Power (AC) | 600 VA |
| Max Switched Voltage | 30 Vdc, 250 Vac |
| Max Switched Current | 5 A |
| Min Switched Current | 100 mA @ 5 Vdc |
| Relay Contact Life | 100,000 operations at 5 A, 24 Vdc or 120 Vac |
| Speed Input Events/Rev | 1 to 255 |
| Max Input Frequency | 20 kHz |
| Min Frequency (Proximity) | 0.0167 Hz (1 rpm for 1 event/rev) |
| Min Frequency (Magnetic) | 3.3 Hz |
| RPM Accuracy | <100 rpm = ±0.1 rpm; 100–10,000 = ±1 rpm; >10,000 = ±0.01% |
| Auto Threshold Triggering | >1 Vpp, minimum frequency 0.0167 Hz |
| Manual Threshold | +9.9 V to -23.9 V, min amplitude 500 mVpp |
| Selectable Hysteresis | 0.2 V to 2.5 V |
| Alarm Types | Alert, Danger (Overspeed) |
| Alarm Time Delay | <30 ms above 300 Hz |
| Proportional Values Provided | Speed and Peak Speed (Peak Speed for display only) |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95% RH, non-condensing |
| Dimensions (Monitor Module) | 241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
| Weight (Monitor Module) | 0.82 kg (1.8 lb) |
| Dimensions (I/O Module) | 241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
| Weight (I/O Module) | 0.45 kg (1.0 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of transducers are compatible with the 3500/53 Electronic Overspeed Detection System?
A1: The system supports Bently Nevada 3300 series Proximitor® (5 mm to 16 mm), 3300 RAM, and magnetic pickup transducers.
Q2: What is the maximum frequency input that the module can handle?
A2: The maximum input frequency is 20 kHz, with up to 255 events per revolution supported.
Q3: What is the RPM accuracy range of the 3500/53 module?
A3: RPM accuracy is ±0.1 rpm for speeds under 100 rpm, ±1 rpm between 100 to 10,000 rpm, and ±0.01% above 10,000 rpm.
Q4: How many channels can be configured in this module?
A4: The module can be configured as a 2-channel or a 3-channel system, typically in 2-out-of-2 or 2-out-of-3 voting logic.
Q5: What are the alarm capabilities of the module?
A5: The system provides configurable Alert and Danger (Overspeed) setpoints with software-defined thresholds and <30 ms response time for frequencies above 300 Hz.
Q6: Does the module require redundant power supplies?
A6: Yes, the use of redundant power supplies is required in a 3500 rack containing the 3500/53 module.
Q7: Can the module output data for external monitoring systems?
A7: Yes, it provides 4–20 mA proportional outputs and buffered transducer outputs for external data acquisition.
Q8: What environmental conditions can the module operate in?
A8: It operates from -30 °C to +65 °C, supports 95% non-condensing humidity, and is designed for use in Class I, Div 2 hazardous areas when certified.
