Technical Specifications
| Category | Specification |
|---|---|

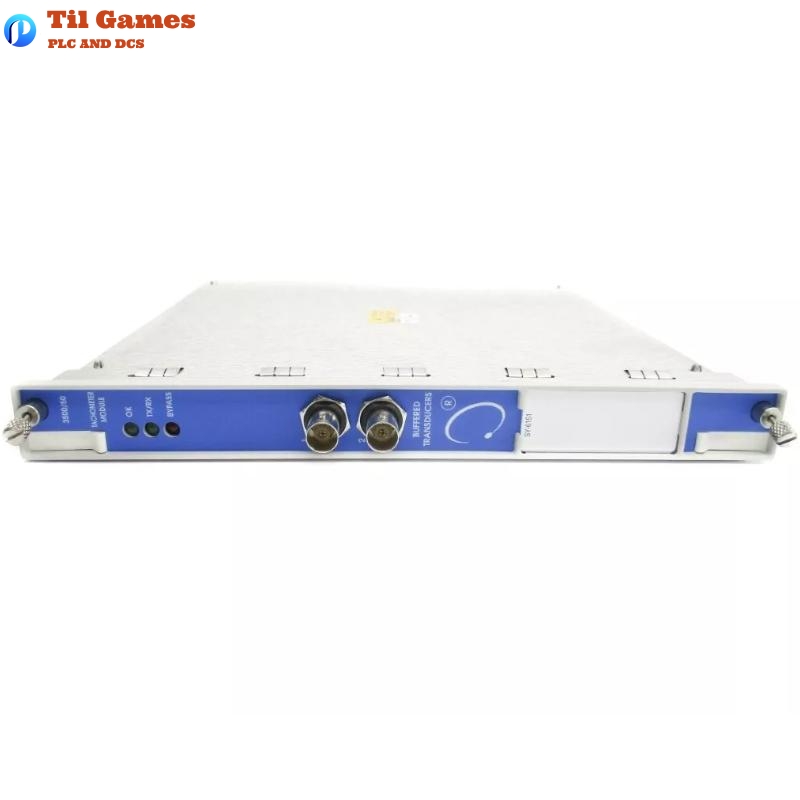

| Module Type | 2-Channel Tachometer Module |
| Input Type | Proximity probes or magnetic pickups |
| Input Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ (standard), 40 kΩ (TMR), 7.15 kΩ (Internal Barrier) |
| Power Consumption | 5.8 W typical |
| Buffered Transducer Output | 1 coaxial connector per channel (short circuit and ESD protected) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | 24 Vdc, 40 mA max per channel |
| Recorder Output | +4 to +20 mA per channel, load resistance 0–600 Ω |
| Voltage Compliance | 0 to +12 Vdc across load |
| Resolution | 0.3662 µA/bit, ±0.25% at room temp, ±0.7% over temperature |
| Update Rate | ~100 ms |
| Event/Revolution Support | 1 to 255 (acceleration, zero speed), 0.0039 to 255 (all others) |
| Max Full-Scale Range | 99,999 rpm |
| Max Input Frequency | 20 kHz |
| Min Input Freq. (Proximity) | 0.0167 Hz (1 rpm for 1 event/rev) |
| Min Input Freq. (Mag Pickup) | 3.3 Hz |
| RPM Accuracy | <100 rpm: ±0.1 rpm; 100–10,000 rpm: ±1 rpm; 10,000–99,999 rpm: ±0.01% |
| RPM/min Accuracy | ±20 rpm/min |
| Alarm Setpoints | Alarm 1 & 2 for all measured values; set from 0–100% full scale |
| Alarm Delays | Alarm 1: 1–60 sec (1 sec steps); Alarm 2: 1–60 sec (0.1 sec steps) |
| Transducer Triggering | Auto Threshold: >1 Vpp; Manual Threshold: +9.5 Vdc to -23.5 Vdc (min 500 mVpp) |
| Hysteresis | Selectable from 0.2 V to 2.5 V |
| Measured Values | Speed, Speed Band, Peak Speed, Rotor Acceleration, Zero Speed, Reverse Rotation |
| Front Panel Indicators | OK LED, TX/RX LED, Bypass LED |
| Physical Dimensions | 241.3 x 24.4 x 241.8 mm (Monitor Module) |
| Weight | 0.91 kg (combined Monitor + I/O with barrier) |
| Mounting | Requires 1 full-height front slot and 1 full-height rear slot |
| Compliance | FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS |
| Hazardous Locations | cNRTLus, ATEX, IECEx (Zone 2, Division 2 rated options) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of inputs can the 3500/50 Tachometer Module accept?
A1: It accepts up to two transducer signals, either from proximity probes or magnetic pickups.
Q2: Can the module be used as a speed control or overspeed protection system?
A2: No, it is not designed for speed control or overspeed protection. It lacks the necessary response speed and redundancy.
Q3: What is the maximum shaft speed it can monitor?
A3: The module can handle shaft speeds up to 99,999 RPM with a maximum input frequency of 20 kHz.
Q4: Can it generate alarms based on speed thresholds?
A4: Yes, Alarm 1 and Alarm 2 thresholds can be configured via software for each channel.
Q5: Does the module provide buffered outputs?
A5: Yes, each channel has a coaxial connector on the front panel for buffered transducer output, also available on the I/O module.
Q6: Is a separate Keyphasor module required when using this tachometer module?
A6: No, the 3500/50M can supply conditioned Keyphasor signals to the rack backplane.
Q7: What is the power consumption of the module?
A7: Typical power consumption is 5.8 Watts.
Q8: What are the available transducer triggering options?
A8: The module supports both auto threshold (for signals >0.0167 Hz) and manual threshold settings from +9.5 Vdc to -23.5 Vdc.
