Technical Specifications
| Parameter | Description |
|---|---|

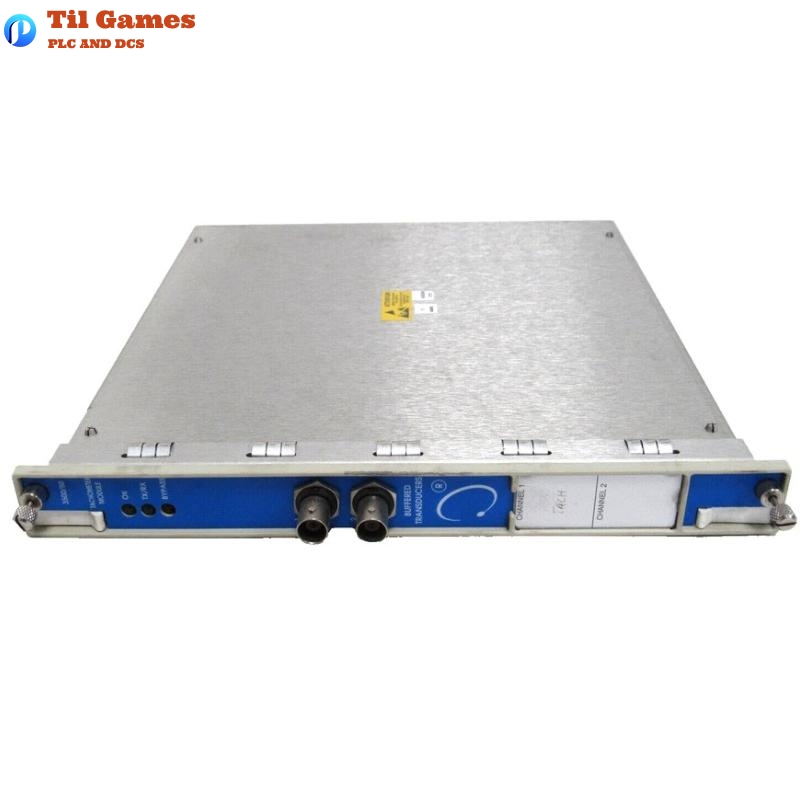

| Model | 3500/50-01-00-01 (133388-02) |
| Module Type | Tachometer Module, 2-channel |
| Input Type | Proximity probe or magnetic pickup |
| Input Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ (standard), 40 kΩ (TMR), 7.15 kΩ (Internal Barrier) |
| Transducer Power Supply | 24 Vdc, 40 mA max per channel |
| Recorder Output | 4–20 mA, proportional to configured range |
| Output Impedance | 550 Ω |
| Resolution | 0.3662 µA/bit ±0.25% room temp, ±0.7% full temp range |
| Max RPM Range | 99,999 rpm |
| Max Input Frequency | 20 kHz |
| Min Frequency (Proximity) | 0.0167 Hz (1 rpm) |
| Min Frequency (Magnetic) | 3.3 Hz |
| RPM Accuracy | <100 rpm: ±0.1 rpm; 100–10,000 rpm: ±1 rpm; >10,000 rpm: ±0.01% |
| RPM/Min Accuracy | ±20 rpm/min |
| Alarm Levels | Configurable for each measurement |
| Alarm Time Delay (1) | 1–60 sec in 1 sec intervals |
| Alarm Time Delay (2) | 1–60 sec in 0.1 sec intervals |
| Update Rate | ~100 ms |
| Transducer Triggering Threshold | Auto: ≥1 Vpp; Manual: 500 mVpp (configurable from +9.5 to -23.5 Vdc) |
| Hysteresis Range | 0.2 V to 2.5 V, selectable |
| Power Consumption | 5.8 W (typical) |
| Physical Dimensions | 241.3 x 24.4 x 241.8 mm (Main Module) |
| Weight | 0.91 kg (Main Module + I/O Module with internal barrier) |
| Module Slots Required | 1 full-height front + 1 full-height rear |
| Front Panel Indicators | OK, TX/RX, BYPASS LEDs |
| Buffered Outputs | 1 coaxial per channel + Euro connectors at I/O |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of sensors are compatible with the 3500/50 Tachometer Module?
A1: The module accepts inputs from proximity probes and magnetic pickups. However, magnetic pickups are not suitable for reverse rotation or zero-speed detection.
Q2: Can this module be used as a primary overspeed protection system?
A2: No. The module is not designed for standalone overspeed protection or speed control systems, as it lacks protective redundancy and fast response capability.
Q3: What is the maximum number of events per revolution supported?
A3: The module supports up to 255 events per revolution. Some channel types start from 0.0039 events per revolution.
Q4: Is a separate Keyphasor module required when using this Tachometer Module?
A4: No. The 3500/50M can condition and distribute Keyphasor signals to the rack backplane, eliminating the need for a separate Keyphasor module.
Q5: What are the available output signals for monitoring purposes?
A5: The module provides 4–20 mA analog outputs and buffered transducer outputs. These are suitable for data logging, chart recording, or display—not protection.
Q6: Can alarms be configured with delay settings?
A6: Yes. Alarm 1 can be delayed from 1 to 60 seconds (1 sec steps), while Alarm 2 allows finer control from 1 to 60 seconds in 0.1-second steps.
Q7: What is the minimum detectable shaft speed for proximity probe inputs?
A7: With proximity probes, the minimum input frequency is 0.0167 Hz, equivalent to 1 rpm for 1 event per revolution.
Q8: Is the module compliant with hazardous area standards?
A8: Yes. It supports certifications including cNRTLus (Class I, Div 2) and ATEX/IECEx (Zone 2), depending on the I/O module used and installation drawings.
