Technical Specifications
| Parameter | Description |
|---|---|

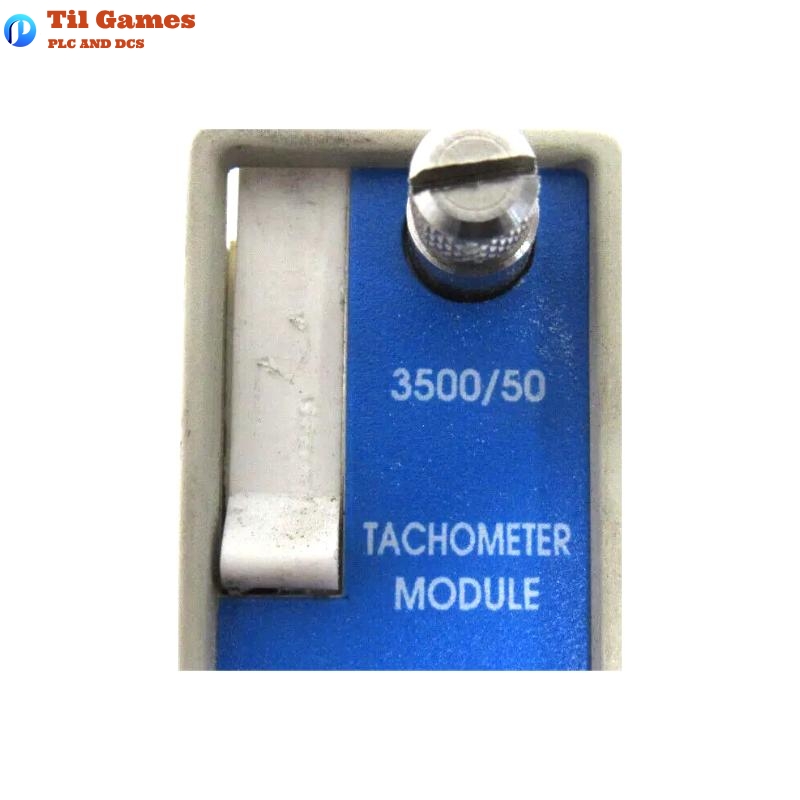

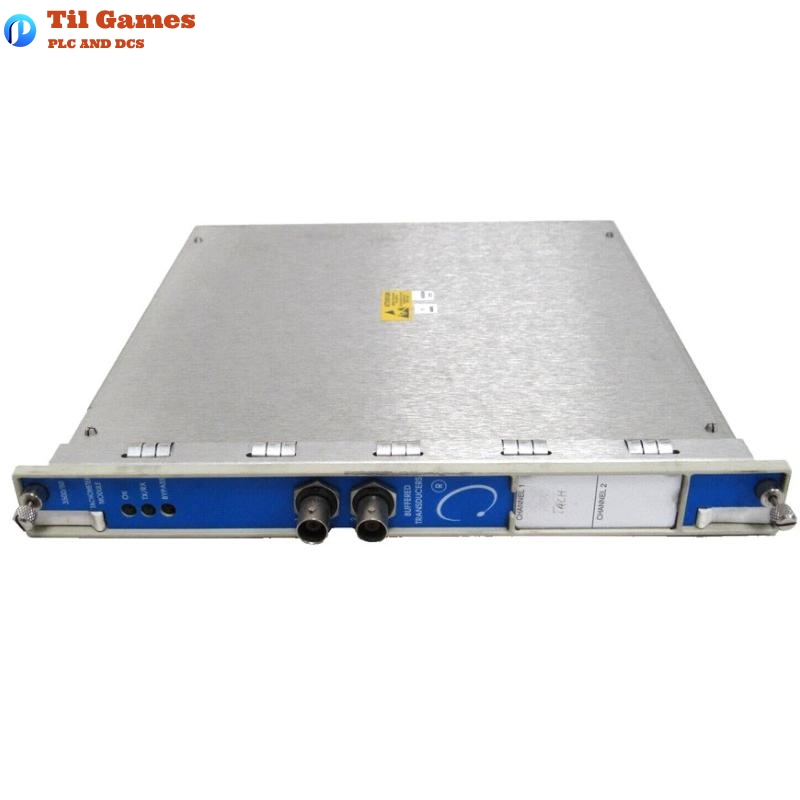

| Model | 3500/50-01-00-01 |
| Part Number | 133388-02 |
| Channels | 2 |
| Input Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ (standard), 40 kΩ (TMR), 7.15 kΩ (Internal Barrier) |
| Transducer Compatibility | Proximity probes or magnetic pickups |
| Transducer Power Supply | 24 Vdc, 40 mA max per channel |
| Power Consumption | 5.8 Watts typical |
| Buffered Outputs | One coaxial connector per channel (front panel); short circuit and ESD protected |
| Recorder Output | +4 to +20 mA |
| Output Impedance | 550 Ω |
| Voltage Compliance | 0 to +12 Vdc across load |
| Load Resistance Range | 0 to 600 Ω |
| Resolution | 0.3662 µA per bit |
| Update Rate | ~100 ms |
| Speed Input Range | Up to 255 events/rev; Max frequency: 20 kHz |
| RPM Range | 1 to 99,999 rpm |
| RPM Accuracy | <100 rpm: ±0.1 rpm; 100–10,000 rpm: ±1 rpm; >10,000 rpm: ±0.01% |
| RPM/Min Accuracy | ±20 rpm/min |
| Manual Threshold Range | +9.5 Vdc to -23.5 Vdc |
| Hysteresis Range | 0.2 to 2.5 V user selectable |
| Alarm Setpoints | Programmable via software, per measurement |
| Alarm Delays | Alarm 1: 1–60s (1s intervals); Alarm 2: 1–60s (0.1s intervals) |
| Status LEDs | OK, TX/RX, Bypass |
| Dimensions (Monitor Module) | 241.3 mm x 24.4 mm x 241.8 mm |
| Dimensions (I/O with Barrier) | 241.3 mm x 24.4 mm x 163.1 mm |
| Weight (Total) | 0.91 kg (Main Module: 0.82 kg + I/O Barrier: 0.09 kg approx.) |
| Rack Slot Requirement | 1 full-height front slot (Monitor); 1 full-height rear slot (I/O) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of transducers are compatible with the 3500/50 Tachometer Module?
A1: It supports 1 to 2 proximity probe transducers or magnetic pickups. Magnetic pickups are not recommended for reverse rotation or zero speed detection due to potential false indications.
Q2: What is the maximum speed the module can monitor?
A2: The 3500/50 Tachometer Module can monitor shaft speeds up to 99,999 rpm with an input frequency limit of 20 kHz.
Q3: Does this module provide protection features such as overspeed control?
A3: No, this module is not intended for speed control or overspeed protection. It is not designed with the protective redundancy or reaction speed required for such safety-critical functions.
Q4: Can this module be used to replace a Keyphasor module in the rack?
A4: Yes, it can be configured to supply conditioned Keyphasor signals to the 3500 rack backplane, removing the need for a separate Keyphasor module.
Q5: What are the output signal capabilities of the module?
A5: It provides 4–20 mA analog outputs per channel, proportional to full-scale speed or acceleration values. Outputs are unaffected by short circuits.
Q6: Is it possible to adjust alarm setpoints and delays for each channel?
A6: Yes, Alarm 1 and Alarm 2 setpoints and delays are fully programmable using the configuration software.
Q7: How accurate is the speed measurement?
A7: Accuracy varies by speed range—within ±0.1 rpm under 100 rpm, ±1 rpm from 100 to 10,000 rpm, and ±0.01% for speeds above 10,000 rpm.
Q8: What are the module’s dimensions and weight?
A8: The monitor module measures 241.3 x 24.4 x 241.8 mm, and with a barrier I/O module, the total weight is approximately 0.91 kg.
