Product Description

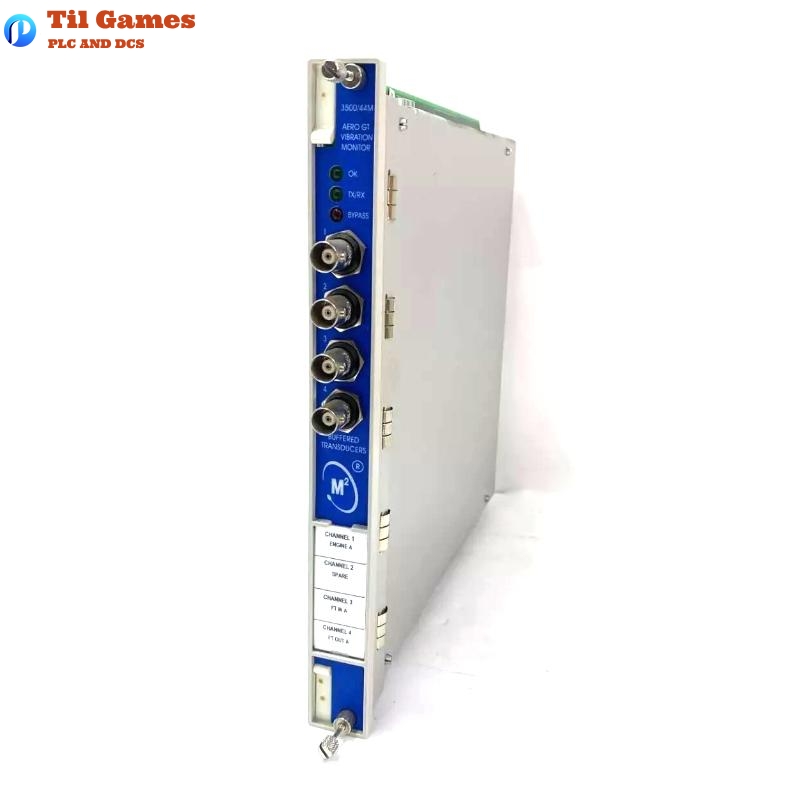

The Bently Nevada 3500/44 Aeroderivative Monitor is an advanced four-channel vibration monitoring module designed specifically for aeroderivative gas turbine (GT) applications. It is part of the Bently Nevada 3500 Machinery Protection System, providing reliable continuous condition monitoring.
The monitor detects and diagnoses vibration behaviors in aeroderivative GTs by acquiring and processing sensor signals from accelerometers and Velomitors. It compares real-time measurements against configured alarm setpoints to ensure rapid detection of anomalies.
This module is capable of tracking 1X vibration, performing bandpass filtering, and integrating signals. The 3500/44 accepts input from two independent Keyphasor signals, allowing different tracking configurations per channel pair.
Technical Specifications
General Parameters
| Parameter | Description |
|---|---|
| Input Channels | 4 independent channels |
| Compatible Sensors | Velomitor®, accelerometers (via interface modules) |
| Keyphasor Inputs | 2 independent Keyphasor signal inputs |
| Signal Processing | Direct, Bandpass, 1X Amplitude, 1X Phase Lag, Integrated Velocity/Accel. |
| Signal Filtering | Bandpass, High-pass (10–1000 Hz), Low-pass (100–5500 Hz), Tracking filter |
| Communication | Interfaces with 3500 rack system |
| Alarm Types | Alert and Danger setpoints (configurable by channel/mode) |
| Multimode Support | Yes, supports up to 8 alarm sets per channel for multiple operating modes |
Electrical & Output
| Parameter | Value |
|---|---|
| Power Consumption | 7.7 Watts typical |
| Output Impedance | 550 Ω |
| Recorder Output | 4–20 mA, proportional to full-scale |
| Voltage Compliance | 0–12 Vdc across load |
| Load Resistance | 0–600 Ω |
| Update Rate | ≤ 100 ms |
| Resolution | 0.3662 µA/bit, ±0.25% room temp, ±0.7% over temp range |
Signal Conditioning & Accuracy
| Signal Type | Frequency Response (–3 dB) | Accuracy (typical) |
|---|---|---|
| Direct (Velocity) | 4 Hz – 30 kHz | ±0.33% |
| Bandpass (Accel) | 18 Hz – 14.5 kHz (integrated); up to 30 kHz non-integrated | ±1% max |
| Tracking Filter | 2400–30,000 RPM (configurable constant Q) | ±0.33% |
Physical Specifications
| Component | Dimensions (H x W x D) | Weight |
|---|---|---|
| Monitor Module | 241.3 x 24.4 x 241.8 mm | 0.91 kg |
| I/O Module | 241.3 x 24.4 x 99.1 mm | 0.45 kg |
| Rack Slot | 1 full-height front + 1 rear slot | — |
Product Features
-
Dedicated for Aeroderivative GTs – Optimized vibration analysis for high-speed turbine dynamics.
-
Dual Keyphasor Input – Supports multiple tracking configurations simultaneously.
-
Multimode Configuration – Supports multiple machine modes with individual alarm sets.
-
High-Resolution Measurement – Precision accuracy with programmable sensitivity.
-
Independent Channel Processing – Each of the four channels can be individually configured.
-
Advanced Filtering – Includes configurable bandpass, high-pass, low-pass, and tracking filters.
Product Advantages
-
Enables early detection of mechanical faults like unbalance, misalignment, and bearing wear.
-
Fully integrates with Bently Nevada 3500 system, ensuring seamless condition monitoring.
-
Provides real-time protection with minimal delay through configurable alert/danger setpoints.
-
Enhanced diagnostic capability using multimode alarm handling for different machine states.
-
Complies with international safety and EMC standards, suitable for hazardous environments.
Typical Applications
-
Aeroderivative gas turbines in power generation, marine propulsion, and industrial drives.
-
Mobile and offshore platforms using lightweight gas turbine packages.
-
Combined-cycle power plants for real-time turbine condition monitoring.
-
Industrial turbines in oil & gas or petrochemical facilities requiring robust vibration analysis.
Latest Industry Report Title
“Precision Monitoring for Aeroderivative Turbines: Integrating the Bently Nevada 3500/44 for Enhanced Reliability”
Source: Baker Hughes Technical Insights, Q1 2025
Recommended Related Models (Same Series or Similar Function)
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 3500/42M | Proximitor® Seismic Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/46M | Hydro Monitor (for hydraulic machines) | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/50 | Tachometer Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/22M | Transient Data Interface Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/15 | Power Supply Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/32M | 4-Channel Relay Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
Popular Bently Nevada Models
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/42M-01-00 | Proximitor® Seismic Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/93 | System Display Interface | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/05 | System Rack | 482.6 x 266.7 x 241.3 | 3.2 kg |
| 3500/60 | Temperature Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3300 XL Proximitor® | Non-contact displacement sensor system | Custom (Sensor-based) | Varies |
FAQ
Frequently Asked Questions (FAQs)
Q1: What makes the 3500/44 suitable for aeroderivative gas turbines?
A1: It is engineered specifically to handle the high-frequency vibration characteristics of aeroderivative turbines, with advanced filtering and dual Keyphasor input capabilities.
Q2: How many channels does the 3500/44 support?
A2: It supports 4 independent input channels for vibration monitoring.
Q3: What types of sensors are compatible with the 3500/44?
A3: Velomitor® velocity sensors, accelerometers, and Proximitor® transducers via interface modules.
Q4: Can the module support different machine operating modes?
A4: Yes, the multimode feature allows up to 8 configurable alarm sets per channel for various modes.
Q5: How does the alarm system work?
A5: Alert and Danger setpoints are user-defined, with configurable delays and multiple measurement-based triggering conditions.
Q6: What kind of output signals are provided for external recording?
A6: Each channel provides a 4–20 mA output proportional to the full-scale reading.
Q7: Is this module compliant with hazardous area standards?
A7: Yes, it complies with Class I, Div 2 and ATEX/IECEx Zone 2 standards depending on I/O configuration.
Q8: What is the typical application environment for the 3500/44?
A8: It is deployed in power plants, offshore platforms, industrial gas turbine systems, and mobile GT units.
