Product Description

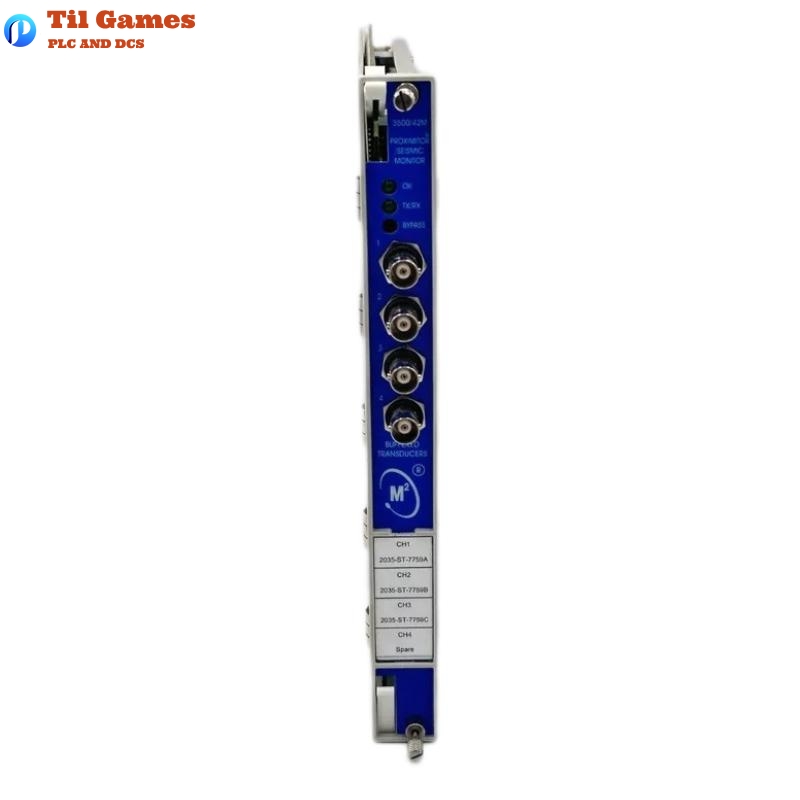

The Bently Nevada 3500/42M-09-00 Proximitor Seismic Monitor is a four-channel, high-performance module used in the 3500 Series Machinery Protection System. It accepts inputs from proximity and seismic transducers to deliver critical condition monitoring functions for rotating machinery. Each channel can be individually configured to monitor a variety of parameters, including vibration, position, acceleration, and more. By continuously comparing signal values to configured alarm setpoints, the monitor ensures timely fault detection to protect equipment and enhance maintenance efficiency.
Each monitor module uses 3500 Configuration Software and supports flexible signal conditioning, allowing users to tailor monitoring settings to specific machine applications. With features like Buffered Outputs, Recorder Outputs, and support for Static Values, the 3500/42M is essential for machinery protection and predictive maintenance.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 3500/42M-09-00 |
| Number of Channels | 4 |
| Input Types | Proximity, Velocity, Acceleration |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ |
| Buffered Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Recorder Output | +4 to +20 mA (Proportional to full scale) |
| Signal Conditioning | Programmable filters for Direct, Gap, Not 1X, 1X, 2X, Smax |
| Alarm Setpoints | Alert and Danger setpoints per channel |
| Alarm Delay | Configurable via software (up to 400s for REBAM) |
| Environmental Operating Temp | -30°C to +65°C (internal/external termination) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Certifications | FCC Part 15, EMC (EN 61000-6-x), RoHS, ATEX, IECEx, ABS |
| Physical Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
Key Features
-
Four independently configurable channels
-
Compatible with Proximitor, Velomitor, and Seismoprobe sensors
-
Static and dynamic signal analysis
-
Buffered outputs for diagnostics and monitoring
-
Multiple filter options including Not 1X, 1X, and 2X vector filters
-
High-resolution 4–20 mA outputs for each channel
-
Robust alarm and delay logic for early fault identification
-
Short-circuit protected outputs
-
Programmable signal conditioning for tailored monitoring
-
Full integration with 3500 Series racks and software
Product Advantages
-
Reliability: Designed for continuous machinery protection under industrial and marine conditions.
-
Flexibility: Modular configuration allows users to tailor the system per application using proximity or seismic sensors.
-
Accuracy: Signal processing delivers precise measurements with minimal error even under varying temperatures.
-
Comprehensive Monitoring: Supports measurement of radial vibration, thrust position, shaft absolute, eccentricity, REBAM, and more.
-
Scalability: Easily integrates into existing 3500 racks and systems with expandable I/O modules.
-
Safety Compliance: Certified for hazardous area operation (ATEX, IECEx, CSA, and more).
Typical Applications
-
Steam and gas turbines
-
Compressors (axial, centrifugal, reciprocating)
-
Electric motors and generators
-
Gearboxes and industrial pumps
-
Rolling-element bearing monitoring (REBAM)
-
Marine and offshore rotating machinery
-
Nuclear, oil & gas, chemical processing industries
Latest Report Headline
“Bently Nevada’s 3500/42M Enhances Predictive Maintenance in Next-Gen Turbomachinery Protection Systems”
Related Models (Same Series or Functionality)
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor – Std I/O | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-02-00 | Proximitor Seismic Monitor – Ext Term | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-04-00 | Internal Barrier I/O (4x Prox/Accel) | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-07-00 | Shaft Absolute I/O Internal Term | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-08-00 | Shaft Absolute I/O External Term | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-10-00 | Prox/Velom I/O External Term | 241.3 x 24.4 x 241.8 | 0.91 |
Popular Bently Nevada Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/15 | Power Supply Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/05 | System Rack (Full-Height) | Standard rack dimensions | — |
| 3500/20 | Rack Interface Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/60 | Temperature Monitor | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/25 | Keyphasor Module | 241.3 x 24.4 x 241.8 | 0.91 |
FAQ
Frequently Asked Questions (FAQs)
Q1: What types of sensors are compatible with the 3500/42M-09-00?
A1: It supports proximity probes, acceleration sensors, velocity sensors, Velomitor®, and Seismoprobe® transducers.
Q2: Can I monitor different parameters on each channel?
A2: Yes, each channel pair can be programmed independently to monitor parameters like vibration, thrust, acceleration, and more.
Q3: Is the 3500/42M suitable for use in hazardous environments?
A3: Yes, the unit is certified under ATEX, IECEx, and CSA for Zone 2 and Class I Div 2 environments.
Q4: What is the response time of the monitor for alarms?
A4: The alert delay ranges from 1 to 60 seconds; danger alarms can be set from 0.1 to 60 seconds, and up to 400 seconds for REBAM.
Q5: Are the outputs protected against short circuits?
A5: Yes, all buffered transducer and recorder outputs are short-circuit protected.
Q6: What software is required for configuration?
A6: The 3500/42M requires 3500/01 (v2.50+), 3500/02 (v2.20+), or DM2000 (v3.10+) software.
Q7: How often does the module update recorder outputs?
A7: The recorder output update rate is approximately 100 milliseconds or less.
Q8: What is REBAM and how is it supported?
A8: REBAM stands for Rolling Element Bearing Analysis Monitor. The 3500/42M can monitor BPFO, Spike, Rotor, and Gap values critical for bearing health evaluation.
