Product Description

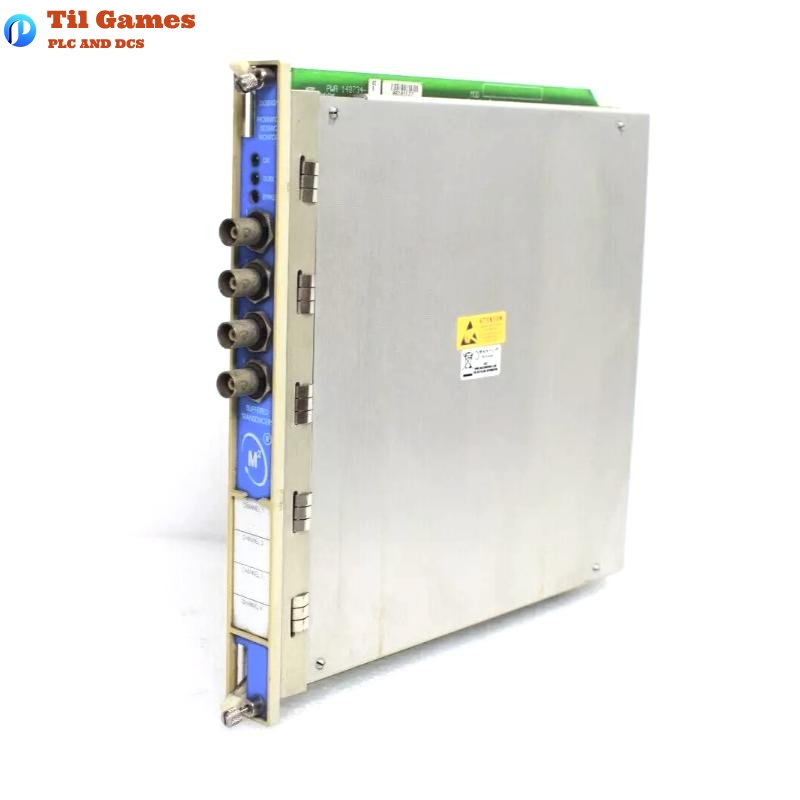

The Bently Nevada 3500/42M-01-00 140734-02 Proximitor Seismic Monitor is a four-channel monitoring module designed to safeguard rotating machinery through continuous real-time analysis of vibration and position parameters. This monitor accepts inputs from proximity probes, accelerometers, and velocity sensors, conditioning these signals to output critical static values. These values are compared against configurable alert and danger setpoints for machinery protection and operational diagnostics.
Each channel can be configured independently in pairs using the 3500 Rack Configuration Software, supporting parameters like radial vibration, acceleration, thrust position, differential expansion, shaft absolute measurements, REBAM (Rolling Element Bearing Analysis Monitor), and more. Flexible output options, environmental endurance, and extensive diagnostic capabilities make the 3500/42M suitable for the most demanding industrial applications.
Product Specifications
| Parameter | Description |
|---|---|
| Input Signal Types | Proximity, acceleration, velocity (1–4 channels) |
| Power Consumption | 7.7 W typical |
| Input Impedance | 10 kΩ for Proximitor and acceleration inputs |
| Sensitivity | Varies by measurement type (e.g., 3.94 mV/μm for vibration, 10 mV/g for accel) |
| Recorder Output | +4 to +20 mA |
| Transducer Power Supply | –24 VDC |
| Buffered Output Impedance | 550 Ω (transducer), 300 Ω (shaft absolute) |
| Operating Temperature | –30°C to +65°C (with standard I/O) |
| Storage Temperature | –40°C to +85°C |
| Humidity | 95% non-condensing |
| Compliance | CE, RoHS, ABS, DNV, ATEX, IECEx, cNRTLus |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Rack Requirement | 1 full-height front and rear slot each |
Product Features
-
Four independent input channels configurable in pairs
-
Accepts proximity, velocity, and acceleration sensor inputs
-
Capable of monitoring radial, axial, and shaft absolute vibration
-
Supports advanced measurements such as REBAM and Circular Acceptance Region
-
Alert and danger alarms with configurable delays
-
Buffered outputs for diagnostics and field calibration
-
High precision measurement with ±0.33% typical accuracy
-
EMC and hazardous area certifications
-
Front-panel status LEDs for OK, TX/RX, and Bypass modes
-
Real-time current loop (4–20 mA) output for recorder interface
Product Advantages
-
Versatility: Supports a wide range of machinery condition monitoring applications.
-
Modular Configuration: Program different parameters on each channel pair.
-
High Reliability: Built for harsh industrial and marine environments.
-
Diagnostic Transparency: Real-time outputs and alarm triggering.
-
Interoperability: Seamless integration into Bently Nevada’s 3500 rack system.
-
Advanced Filtering: Programmable filters for specific frequency ranges, including Not 1X, Smax, and REBAM filtering.
-
Multiple Certifications: Ensures safety and compliance in regulated sectors.
Applications
-
Large-scale compressors and turbines
-
Gas and steam turbines
-
Industrial motors and pumps
-
Gearboxes
-
Rolling element and journal bearings
-
Offshore and marine machinery
-
High-speed rotating equipment in chemical plants, refineries, and power stations
Latest Report Headline
“Enhanced Predictive Maintenance Enabled by 3500/42M Seismic Monitor in High-Speed Turbomachinery Applications”
Published in: Journal of Rotating Equipment Reliability, Feb 2025
Recommended Related Models (Same Series or Functional Equivalents)
| Model | Function | Key Specs |
|---|---|---|
| 3500/42M-01-00 128229-01 | Seismic Monitor w/ internal termination | 4-ch input, 241.3 x 24.4 x 241.8 mm, 0.91 kg |
| 3500/42M-01-00 128240-01 | Seismic Monitor w/ external termination | Same core function, external connection |
| 3500/40M | Proximitor Monitor | Radial & axial vibration, REBAM |
| 3500/44M | TMR Relay Module | Triple voting for output relay activation |
| 3500/25 | Keyphasor Module | Provides shaft speed and phase |
| 3500/93 | System Display Module | Displays rack data on LCD interface |
Popular Bently Nevada Models
| Model | Function | Dimensions (mm) | Weight (kg) | Remarks |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface | 241.3 × 24.4 × 241.8 | 0.91 | For real-time data capture |
| 3500/32M | 4-Channel Digital Output Module | 241.3 × 24.4 × 241.8 | 0.91 | Relay outputs for alarms |
| 3500/33 | 16-Channel Relay Module | 241.3 × 24.4 × 241.8 | 0.91 | High-density output relays |
| 3500/15 | Power Supply Module | 241.3 × 24.4 × 241.8 | 0.91 | Redundant power for 3500 racks |
| 3500/94 | VGA Display Interface | 241.3 × 24.4 × 241.8 | 0.91 | Connects rack to external VGA monitor |
| 3500/60 | Temperature Monitor Module | 241.3 × 24.4 × 241.8 | 0.91 | RTD/TC input for thermal protection |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of sensors are supported by the 3500/42M-01-00 140734-02?
A1: It supports proximity probes, velocity transducers (e.g., Velomitor), and accelerometers (e.g., Seismoprobe).
Q2: How many channels can be monitored simultaneously?
A2: It provides four channels, which can be configured in two independent channel pairs.
Q3: What is the typical power consumption?
A3: The module typically consumes 7.7 watts.
Q4: Can it operate in hazardous environments?
A4: Yes, it is certified for use in Class I, Division 2 and Zone 2 hazardous areas (ATEX, IECEx, cNRTLus).
Q5: How are alarms configured?
A5: Using 3500 Rack Configuration Software, alarm thresholds (alert and danger) can be set per static value with programmable delays.
Q6: What is the measurement accuracy?
A6: Most measurements have a typical accuracy of ±0.33% and a maximum of ±1%.
Q7: Does it support buffered output for diagnostics?
A7: Yes, each channel includes a buffered transducer output protected against short circuits.
Q8: What software and firmware are required for operation?
A8: It requires 3500/01 software v2.50+, firmware version B or newer, depending on features like REBAM and Acceleration II.
