Technical Specifications
| Parameter | Description |
|---|---|

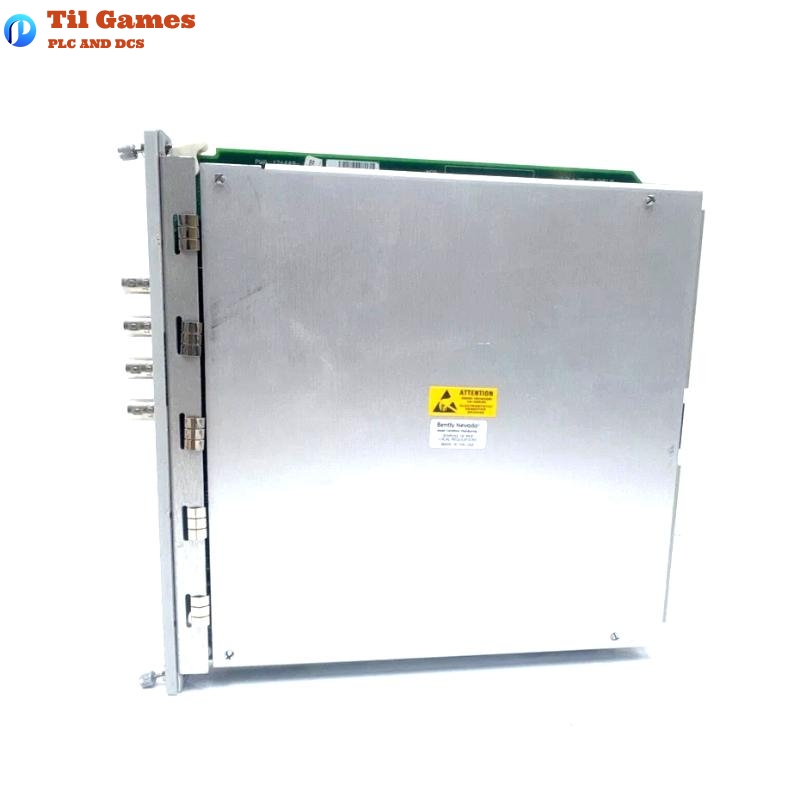

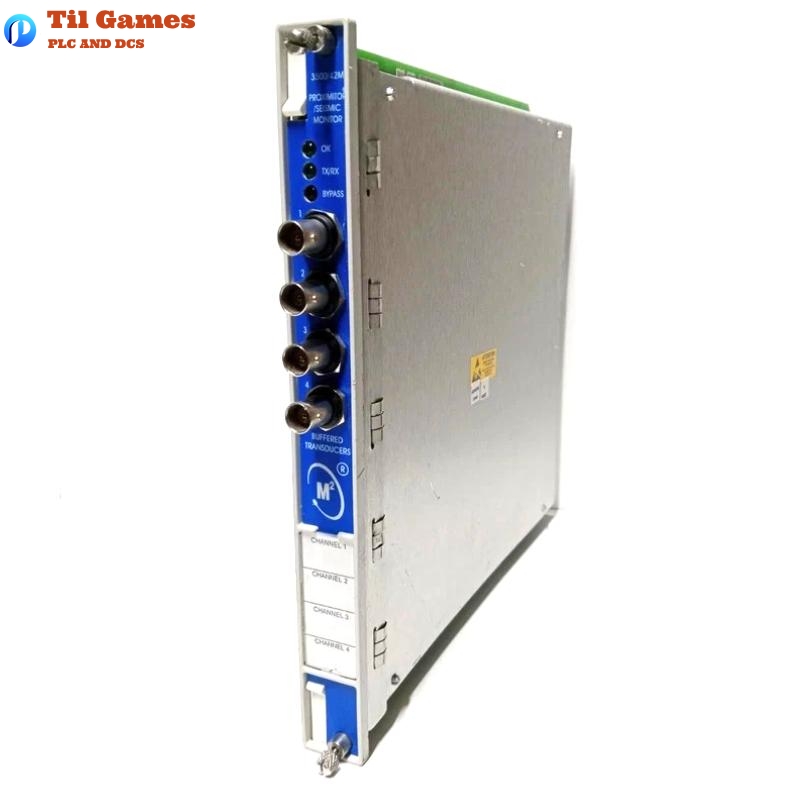

| Model | 3500/42-09-00 |

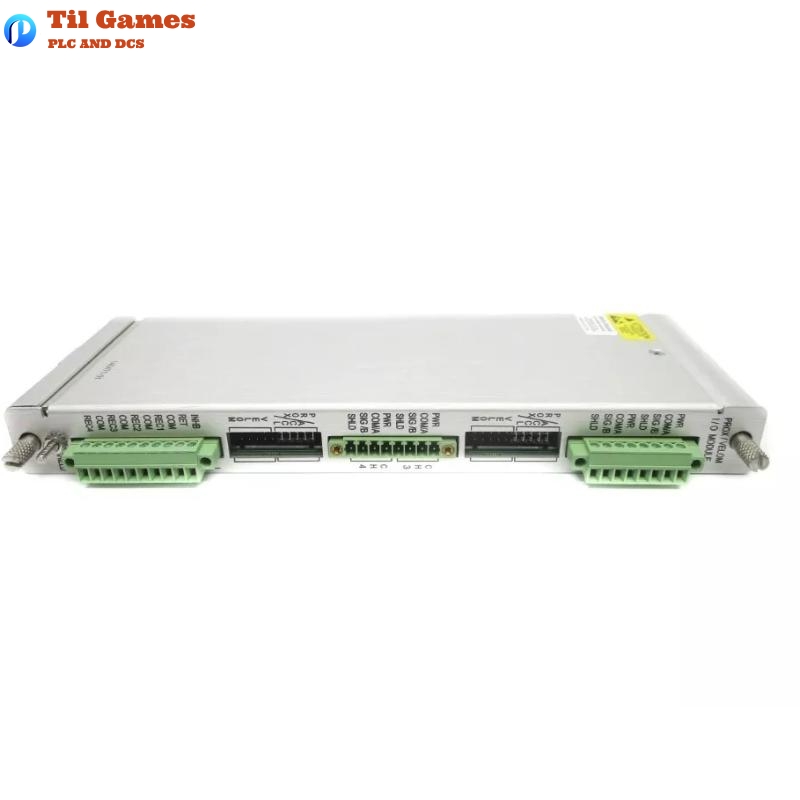

| Part Numbers | 140734-02 (Monitor Module), 140471-01 (Prox/Velom I/O Module, Internal Term.) |
| Transducer Inputs | Supports Proximity, Acceleration, and Velomitor sensors |
| Number of Channels | 4 |
| Input Impedance | 10 kΩ |
| Power Consumption | 7.7 W (typical) |
| Output Type | Buffered Transducer Output, Recorder Output (4-20 mA), Shaft Absolute Output |
| Output Impedance | 550 Ω (Buffered), 300 Ω (Shaft Absolute) |
| Recorder Output Range | +4 to +20 mA |
| Recorder Output Compliance Voltage | 0 to +12 Vdc |
| Update Rate | ≤100 ms |
| Resolution (Recorder) | 0.3662 µA per bit |
| Accuracy (Direct/Gap/1X/2X) | ±0.33% of full scale typical, ±1% max |
| Accuracy (Not 1X) | ±3% (<30,000 cpm), ±8.5% (>30,000 cpm) |
| Alarm Setpoint Range | 0–100% of full-scale value |
| Alarm Setpoint Accuracy | ±0.13% |
| Alarm Delay Settings | Alert: 1–60 s; Danger: 0.1–60 s |
| Frequency Response Range | 3 Hz – 30,000 Hz (based on configuration) |
| Environmental Operating Temp. | -30°C to +65°C (internal I/O), 0°C to +65°C (barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Monitor Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Monitor Weight | 0.91 kg |
| I/O Module Dimensions | 241.3 x 24.4 x 163.1 mm (barrier type) |
| I/O Module Weight | 0.46 kg (barrier type) |
| Compliance | FCC Part 15, EN 61000-6-x, EN 61010-1, RoHS |
| Hazardous Location Ratings | cNRTLus, ATEX, IECEx certified |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of sensors are compatible with the 3500/42-09-00 module?
A1: The module supports proximity probes, accelerometers, and Velomitor velocity sensors.
Q2: How many channels does this module monitor simultaneously?
A2: The monitor supports up to four independent input channels.
Q3: What is the output signal format for integration into control systems?
A3: Each channel provides a 4-20 mA recorder output and a buffered transducer output.
Q4: What is the maximum frequency range the module can measure?
A4: The module supports measurements up to 30,000 Hz depending on the filter configuration.
Q5: Can this monitor be configured for different vibration measurement types?
A5: Yes. Each channel pair can be independently configured to measure vibration, thrust, acceleration, velocity, REBAM, and others.
Q6: Does the monitor offer programmable alarm limits?
A6: Yes. Both alert and danger alarm thresholds are fully configurable using the 3500 Rack Configuration Software.
Q7: What certifications does the 3500/42-09-00 module meet for hazardous locations?
A7: The unit meets cNRTLus, ATEX, and IECEx certifications for Class I, Zone 2 or Division 2 applications.
Q8: How often does the module update its readings?
A8: It refreshes all outputs approximately every 100 milliseconds or less.
