Technical Specifications
| Parameter | Details |
|---|---|
| Model | 3500/42-09-00 |
| Main Function | Vibration and position monitoring using proximity and seismic transducers |
| Number of Channels | 4 channels (programmable in pairs) |
| Input Signal Types | Proximity, velocity, or acceleration transducers |
| Input Impedance | 10 kΩ (for Proximitor and acceleration inputs) |
| Power Consumption | 7.7 W (typical) |
| Output Signal (Recorder) | 4–20 mA per channel, load resistance 0–600 Ω |
| Buffered Outputs | Coaxial connectors, short-circuit protected |
| Output Impedance (Buffered) | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Frequency Response | 1 Hz to 30,000 Hz (varies by configuration and filter options) |
| Resolution | 0.3662 µA per bit |
| Update Rate | ~100 ms |
| Alarm Setpoints | 0–100% of full scale, alert and danger levels programmable |
| Alarm Accuracy | Within ±0.13% of desired setpoint |
| Alarm Delay | Programmable, 0.1 to 60 s (depends on function) |
| Accuracy (General) | ±0.33% typical, ±1% max (depends on function) |
| LED Indicators | OK, TX/RX, Bypass |
| Environmental – Operating Temp. | -30°C to +65°C (with standard I/O), 0°C to +65°C (with barrier I/O) |
| Environmental – Storage Temp. | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Module Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Module Weight | 0.91 kg |

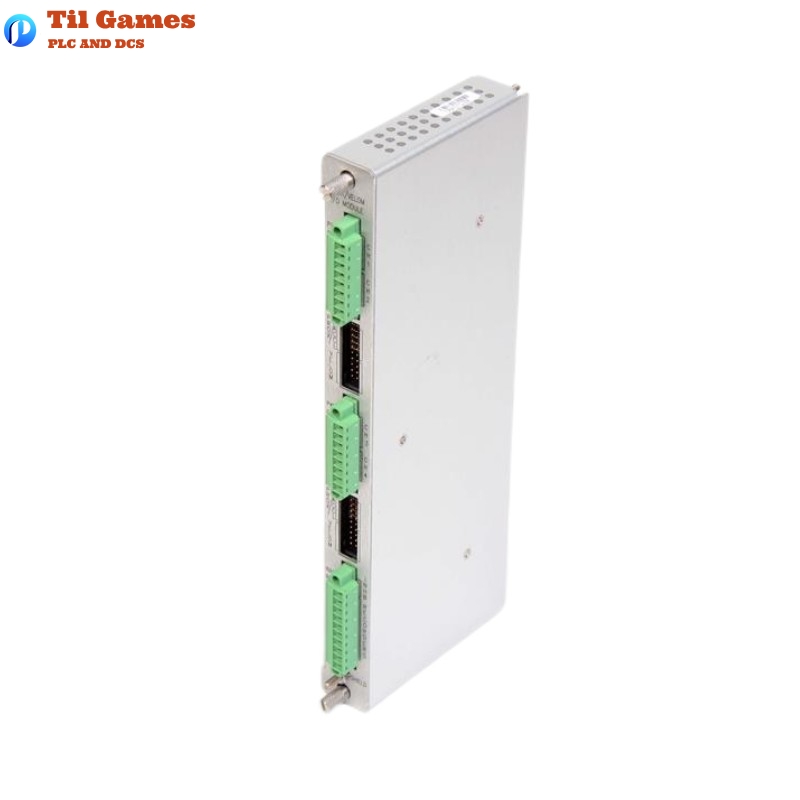

| I/O Module (140471-01) | Prox/Velom I/O Module, Internal Terminations |
| I/O Supply Voltage (U) | 23.9 V |
| I/O Current (I) | 45.5 mA |
| I/O Power (P) | 1.09 W |
| Mounting Requirements | 1 full-height front slot (monitor), 1 full-height rear slot (I/O module) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the 3500/42-09-00 module?
A1: The module monitors critical rotating machinery parameters like vibration, thrust, eccentricity, and differential expansion using proximity and seismic inputs, helping to protect assets by triggering alarms when thresholds are exceeded.
Q2: What types of sensors are supported by the 140471-01 I/O module?
A2: It supports proximity probes, Velomitor velocity sensors, and acceleration sensors, making it versatile for various machine condition monitoring needs.
Q3: How are alarms configured on this device?
A3: Alarms are set through the 3500 Rack Configuration Software, allowing users to assign alert and danger thresholds for up to two static values per channel.
Q4: Can the outputs be connected to external monitoring or control systems?
A4: Yes. Each channel has a 4–20 mA recorder output and buffered transducer outputs, which can be used for integration with external monitoring systems.
Q5: How accurate are the vibration measurements?
A5: Measurement accuracy is typically within ±0.33% of full scale, and no worse than ±1%, depending on the specific function being used.
Q6: What are the environmental limits for this module?
A6: The operating temperature range is -30°C to +65°C with standard I/O and 0°C to +65°C with barrier I/O. Storage temperature ranges from -40°C to +85°C.
Q7: What update rate can be expected for dynamic values?
A7: Recorder output values are updated approximately every 100 milliseconds, providing near real-time data reporting.
Q8: Is it possible to use only one channel in a channel pair?
A8: Yes. Certain configurations allow the use of a single channel in a pair, especially for applications like REBAM (Rolling Element Bearing Analysis Monitor).
