Technical Specifications
| Parameter | Value |
|---|---|

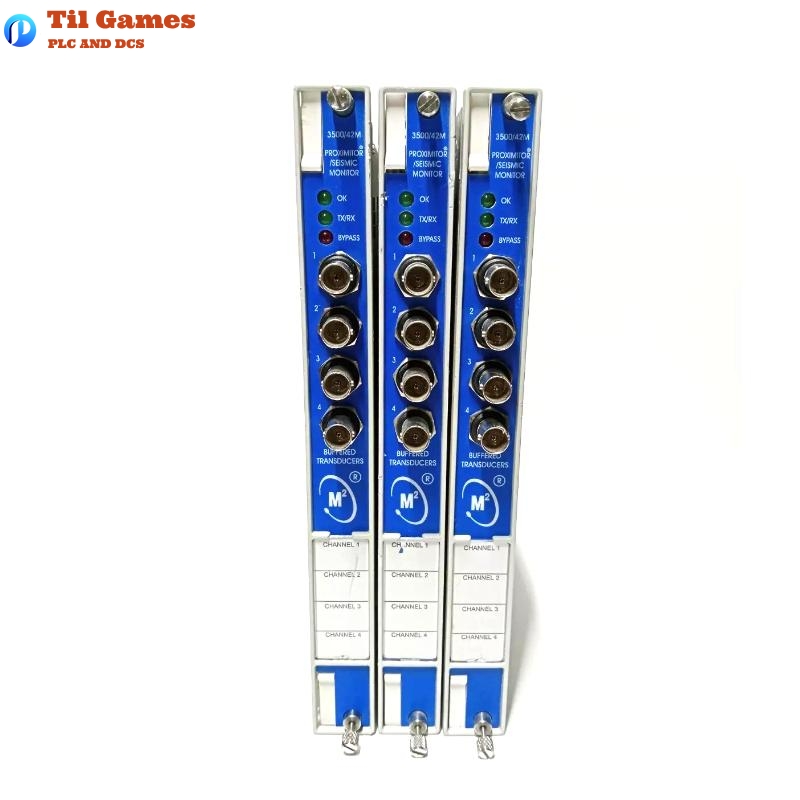

| Product Model | 3500/42-01-00 |
| Monitor Type | Proximitor Seismic Monitor |
| Channels | 4-channel monitor |
| Input Types | Proximity probes, seismic transducers (velocity, acceleration) |
| Input Impedance | 10 kΩ (Proximitor & Acceleration inputs) |
| Sensitivity (Radial, Thrust, etc.) | 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) |
| Sensitivity (Velocity) | 20 mV/(mm/s) pk, 5.8 mV/(mm/s) pk, or 4 mV/(mm/s) pk |
| Sensitivity (Acceleration) | 10 mV/(m/s²) or 100 mV/g |
| Power Consumption | 7.7 W (typical) |
| Recorder Outputs | +4 to +20 mA (0–600 Ω load), 0.3662 µA/bit resolution |
| Buffered Transducer Output | 1 per channel, short-circuit protected |
| Output Impedance (Buffered) | 550 Ω |
| Shaft Absolute Output Impedance | 300 Ω |
| Alarm Setpoints | Configurable from 0–100% full-scale using configuration software |
| Alarm Delay | Configurable from 0.1 to 400 seconds depending on function |
| Environmental Operating Range | -30°C to +65°C (with internal/external I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Certifications | FCC, CE (EMC, RoHS), ATEX, IECEx, CSA, ABS, DNV |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight | 0.91 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of sensors are compatible with the 3500/42-01-00 module?
A1: The monitor supports proximity probes, velocity transducers (Velomitor), and acceleration transducers (Seismoprobe).
Q2: How many channels does this monitor support simultaneously?
A2: It supports up to four channels, which can be configured in pairs to perform different monitoring functions.
Q3: What kind of outputs does the module provide for data logging?
A3: The module provides +4 to +20 mA proportional recorder outputs for each channel and coaxial buffered outputs.
Q4: What is the sensitivity range for velocity measurements?
A4: Velocity sensitivity can be configured as 20 mV/(mm/s), 5.8 mV/(mm/s), or 4 mV/(mm/s) peak.
Q5: What alarm configurations are supported by the monitor?
A5: The system supports programmable alert and danger alarm setpoints for each static value, with configurable delay times.
Q6: Can I use the monitor in hazardous environments?
A6: Yes, it has ATEX, IECEx, and CSA certifications for use in Class I Division 2 and Zone 2 hazardous areas.
Q7: What environmental conditions can the module withstand?
A7: The operating range is -30°C to +65°C (with standard I/O), and it can be stored between -40°C and +85°C.
Q8: Is the monitor affected by short circuits in output wiring?
A8: No, the recorder and buffered outputs are short-circuit protected and do not affect normal operation.
