Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 128718-01 |

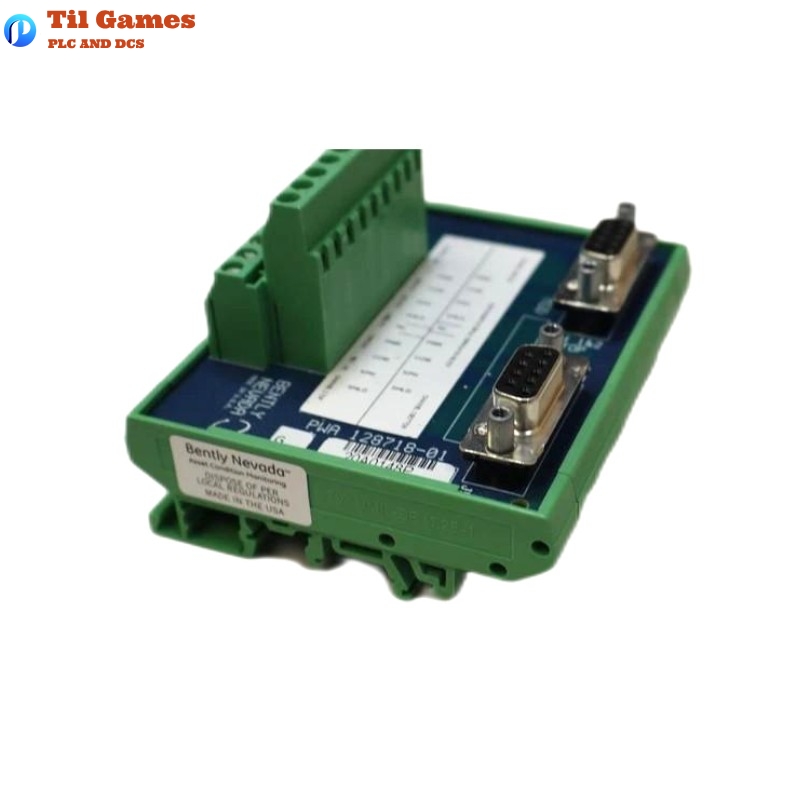

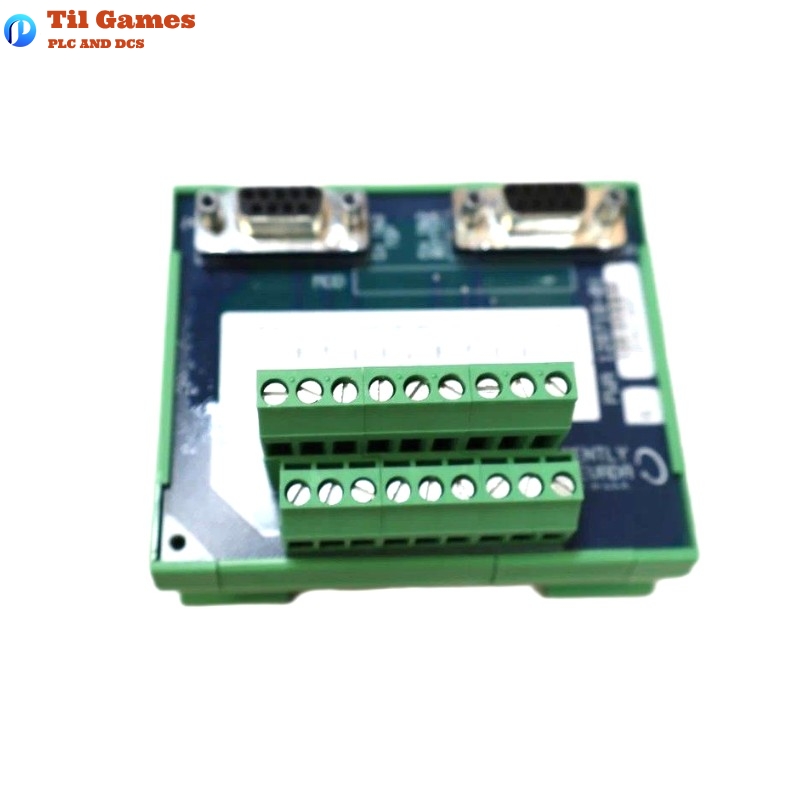

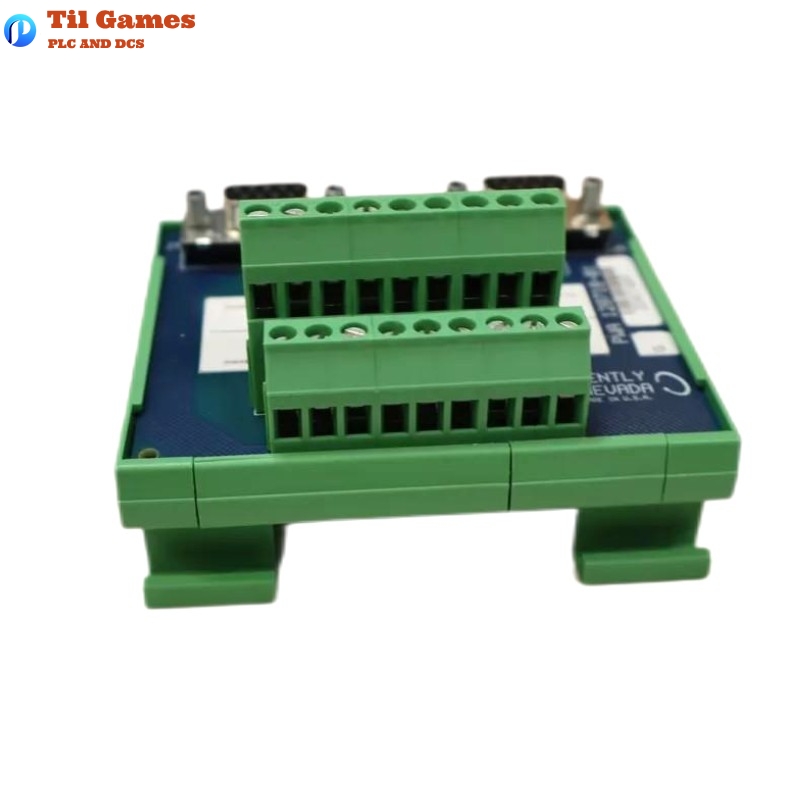

| Product Type | Keyphasor External Termination Block (Euro Style Connectors) |
| Compatibility | For use with 3500/25 Enhanced Keyphasor Modules with external terminations |
| Mounting Type | Rack-mounted (rear I/O slot) |
| Input Connections | Supports connection via 3500 Keyphasor signal cables |
| Connector Type | Euro Style Connectors |
| Application | Used for external termination of Keyphasor signals from proximity probes or magnetic pickups |
| Isolation | Supports both isolated and non-isolated configurations (depending on I/O) |
| Cable Compatibility | Works with 129530-AAAA-BB cables (5–100 ft options) |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 103.1 mm |
| Weight | 0.46 kg (1.01 lbs.) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 128718-01 External Termination Block?
A1: It provides a termination interface for Keyphasor signal wiring when using external I/O modules in the 3500/25 system, enabling signal routing from transducers like proximity probes or magnetic pickups.
Q2: Can this termination block be used with internal I/O modules?
A2: No, the 128718-01 is only compatible with I/O modules designed for external terminations. Internal termination I/O modules require different wiring configurations.
Q3: What type of connectors does the 128718-01 use?
A3: It uses Euro Style connectors to ensure secure and reliable wiring termination for Keyphasor signal inputs.
Q4: Is this block compatible with both magnetic pickups and proximity probes?
A4: Yes, when used in conjunction with the appropriate I/O module, it supports both transducer types depending on system configuration.
Q5: What are the supported cable options for connecting to the termination block?
A5: The termination block is compatible with the 129530-AAAA-BB cable series, which offers lengths from 5 to 100 feet.
Q6: Does the termination block offer signal isolation?
A6: The block itself does not provide isolation. Isolation is dependent on the type of I/O module it is paired with, such as the isolated I/O module designed for magnetic pickups.
Q7: Can this termination block be used in hazardous environments?
A7: Yes, when paired with appropriately certified I/O modules, the overall system can meet requirements for hazardous area classifications such as ATEX and CSA.
Q8: Are any additional accessories required to use this termination block?
A8: Yes, external termination blocks require matching cables (129530-AAAA-BB) and proper I/O modules. These components must be ordered separately.
