Technical Specifications
| Parameter | Specification |
|---|---|

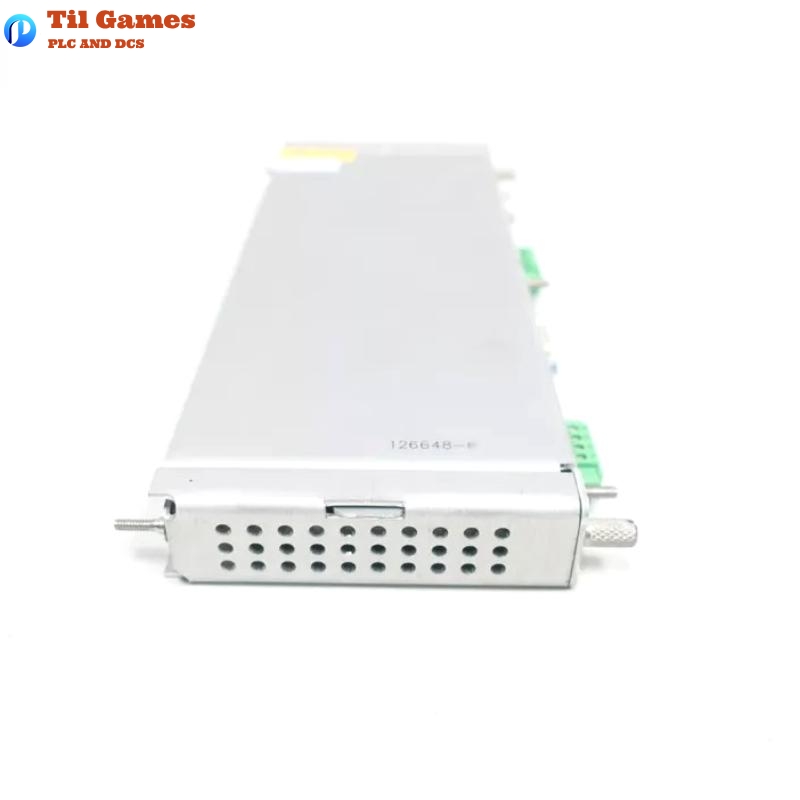

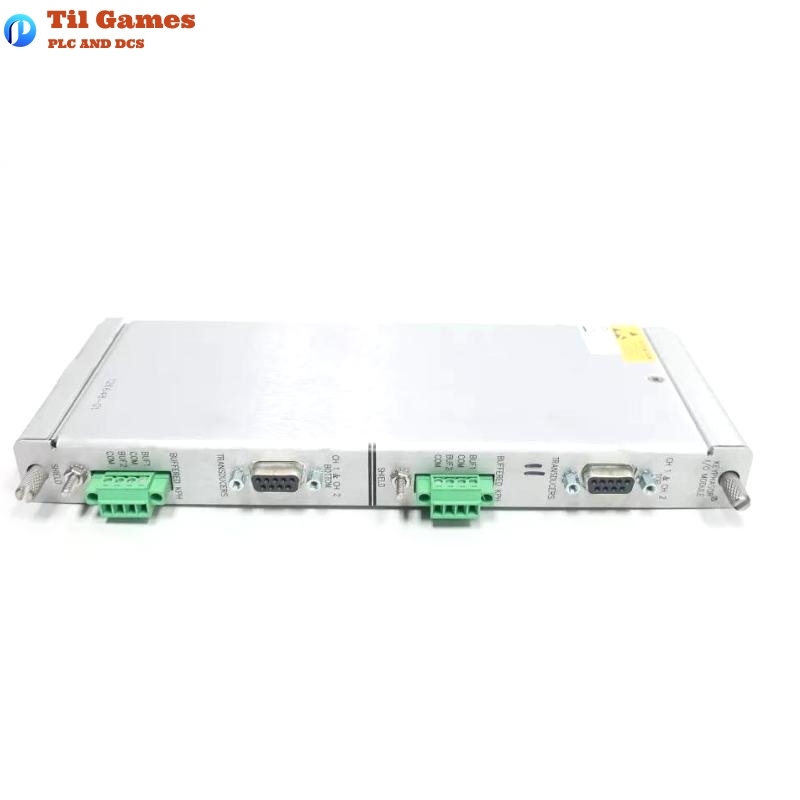

| Product Type | Isolated Keyphasor I/O Module (External Terminations) |
| Input Signal Type | Proximity probes or magnetic pickups |
| Input Signal Range | +5 V to -11 V (Isolated I/O) |
| Minimum Rotational Speed | >200 rpm for magnetic pickups |
| Input Impedance | ≥ 21.8 kΩ |
| Input Frequency Range | 1 to 1,200,000 cpm (0.017 to 20 kHz) |
| Output Frequency Range | 1 to 99,999 cpm (0.017 to 1667 Hz) |
| Buffered Outputs | Front (coaxial connectors), Rear (Euro connectors) – two per location |
| Output Impedance | Max 504 Ω |
| Transducer Power Supply | -24 Vdc, 40 mA per channel |
| Auto Threshold | Min. 2 V peak-to-peak, 120 rpm (2 Hz) |
| Manual Threshold | Adjustable 0 to -20 Vdc, Min. 500 mV peak-to-peak |
| Hysteresis (User-selectable) | 0.2 to 2.5 V |
| Power Consumption | 3.2 Watts (typical) |
| Operating Temperature | 0°C to +65°C with this I/O module |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| I/O Module Dimensions | 241.3 mm × 24.4 mm × 103.1 mm |
| I/O Module Weight | 0.46 kg |
| Compliance | FCC Part 15, EN 61000-6-2 / 6-4, EN 61010-1, RoHS 2011/65/EU |
| Hazardous Area Approvals | ATEX, IECEx, cNRTLus Class I Zone 2, Div 2 (with proper installation) |
| LED Indicators | OK (module health), TX/RX (communication with RIM) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the 3500/25 126648-02 Isolated Keyphasor I/O Module?
A1: It is designed to condition and isolate Keyphasor signals, especially when they are shared across multiple systems, such as a control system and monitoring system.
Q2: Can this module be used with both magnetic pickups and proximitor sensors?
A2: Yes. It is primarily intended for magnetic pickups but is also compatible with proximitor sensors when an external power supply is used.
Q3: Does the isolated I/O version affect phase accuracy?
A3: Yes. It introduces slightly higher phase shift than the non-isolated version, making it more suitable for speed measurement than precise phase analysis.
Q4: What are the input signal voltage limits for the isolated version?
A4: The input voltage range is from +5 V to -11 V for the isolated I/O module.
Q5: What is the minimum operating speed for reliable input detection?
A5: Magnetic pickups require a shaft speed above 200 rpm to generate sufficient signal for detection.
Q6: What kind of buffered output is available for this module?
A6: Two buffered Keyphasor outputs are available at both the front and rear (Euro connectors and coaxial jacks).
Q7: How is the signal threshold configured on this module?
A7: It supports both auto-thresholding and manual thresholding, with manual settings ranging from 0 to -20 Vdc.
Q8: What is the power supply provided to each transducer channel?
A8: The module supplies -24 Vdc at a maximum of 40 mA per channel.
