Technical Specifications
| Parameter | Specification |
|---|---|

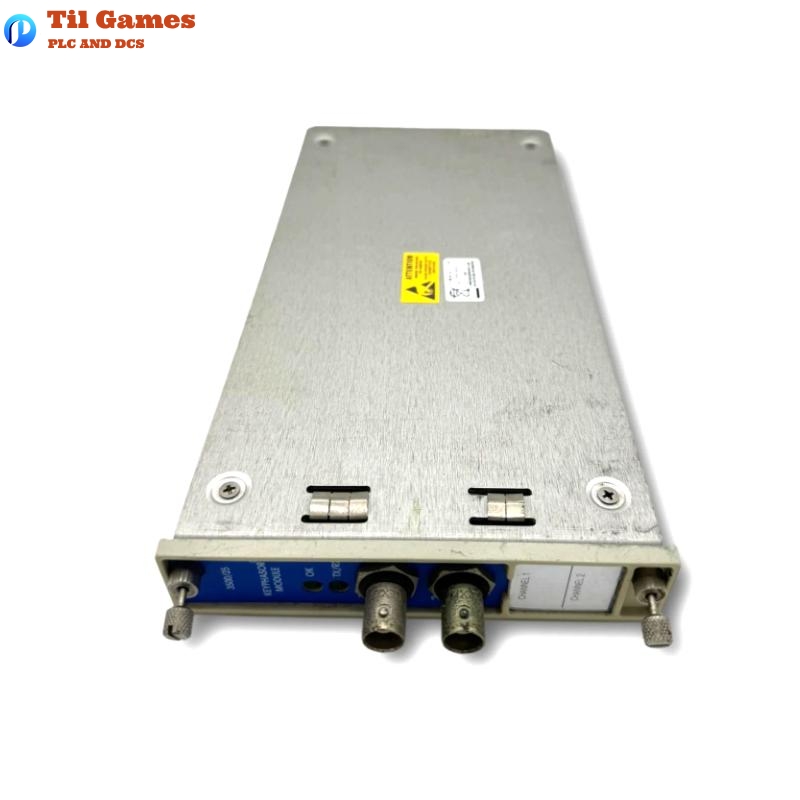

| Module Type | Two-channel Enhanced Keyphasor Module |
| Input Signal Type | Proximity probe or magnetic pickup |
| Input Voltage Range | Non-Isolated I/O: +0.8 V to -21.0 V Isolated I/O: +5 V to -11.0 V |
| Input Impedance | Minimum 21.8 kΩ |
| Speed/Frequency Input Range | 1 to 1,200,000 cpm (0.017 to 20 kHz) |
| Speed/Frequency Output Range | 1 to 99,999 cpm (0.017 to 1667 Hz) |
| Signal Accuracy (Non-Processed) | 0.017–100 Hz: ±1 cpm 101–500 Hz: ±8 cpm 501–20 kHz: ±1% of cpm |
| Signal Accuracy (Processed) | 0.017–60 Hz: ±1 cpm 61–150 Hz: ±8 cpm 151–20 kHz: ±1% of cpm |
| Transducer Thresholds | Auto: ≥2 Vp-p, ≥120 rpm Manual: ≥0.5 Vp-p, 0 to -20 Vdc |
| Hysteresis Setting | Selectable from 0.2 to 2.5 V |
| Buffered Outputs | 2 front coaxial + 2 rear Euro Style connectors |
| Buffered Output Impedance | Max 504 Ω |
| Transducer Power Supply | -24 Vdc, 40 mA max per channel |
| Power Consumption | 3.2 Watts typical |
| LED Indicators | OK LED, TX/RX LED |
| Operating Temperature | -30°C to +65°C (w/o Internal Barrier I/O) 0°C to +65°C (w/ Internal Barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Main Module Dimensions | 119.9 mm x 24.4 mm x 256.5 mm |
| Main Module Weight | 0.34 kg |
| I/O Module Dimensions | 241.3 mm x 24.4 mm x 103.1 mm |
| I/O Module Weight | 0.46 kg |
| Rack Space | Front: 1 half-height slot Rear: 1 full-height slot |
| Environmental Approvals | DNV GL, ABS, cNRTLus, ATEX/IECEx, RoHS, EMC |
| Compliance | EN 61000-6-2, EN 61000-6-4, EN 61010-1 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the Bently Nevada 3500/25 Enhanced Keyphasor Module?
A1: It converts signals from proximity probes or magnetic pickups into digital Keyphasor signals, which provide precise timing information to measure shaft speed and phase in rotating machinery.
Q2: How many Keyphasor signals can the module handle in a single rack configuration?
A2: A standard system can handle up to four Keyphasor signals, or up to eight in a paired configuration with four modules.
Q3: What types of input signals does the module accept?
A3: The module accepts signals from proximity transducers and magnetic pickups, with specific voltage ranges based on the I/O module type.
Q4: Can this module be used in TMR (Triple Modular Redundant) systems?
A4: Yes. Two Keyphasor modules are required to provide primary and secondary signals for TMR applications.
Q5: What is the minimum speed required for magnetic pickup inputs?
A5: Magnetic pickup inputs require a shaft speed greater than 200 rpm (3.3 Hz) to generate usable signals.
Q6: What are the physical dimensions and weight of the main module?
A6: The main module measures 119.9 mm x 24.4 mm x 256.5 mm and weighs 0.34 kg.
Q7: What is the purpose of the Isolated I/O Module option?
A7: The Isolated I/O Module provides electrical isolation for applications where Keyphasor signals are shared across multiple systems, especially suited for magnetic pickup inputs.
Q8: Is firmware upgrade possible in the field?
A8: Yes, the Enhanced Keyphasor Module supports field-upgradeable firmware, allowing updates without removing the module.
