Product Technical Specifications
| Category | Specification |
|---|---|
| Power Consumption | 3.2 W typical |
| Input Type | Two signals from proximity probes or magnetic pickups |
| Input Voltage Range | +0.8 V to -21.0 V (Non-Isolated), +5 V to -11 V (Isolated) |
| Input Impedance | ≥ 21.8 kΩ |
| Minimum Shaft Speed | >200 rpm (for passive magnetic pickups) |
| Signal Frequency Range | 1 to 1,200,000 cpm (0.017 to 20 kHz) |
| Output Frequency Range | 1 to 99,999 cpm (0.017 to 1667 Hz) |
| Non-processed Signal Accuracy | ±1 cpm (0.017–100 Hz), ±8 cpm (101–500 Hz), ±1% (501 Hz–20 kHz) |
| Processed Signal Accuracy | ±1 cpm (0.017–60 Hz), ±8 cpm (61–150 Hz), ±1% (151 Hz–20 kHz) |
| Auto Threshold | 2 V peak-to-peak minimum, 120 rpm (2 Hz) minimum frequency |
| Manual Threshold | 0 to -20 Vdc (user-selectable), 500 mV peak-to-peak minimum |
| Hysteresis | 0.2 to 2.5 V (user-selectable) |
| Buffered Outputs | 2 front (coaxial), 2 rear (Euro Style connectors) |
| Buffered Output Impedance | Max 504 Ω |
| Transducer Power Supply | -24 Vdc, 40 mA max per channel |
| Front Panel Indicators | OK LED (health), TX/RX LED (communication) |
| Operating Temperature | -30°C to +65°C (non-barrier I/O), 0°C to +65°C (barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Main Module Dimensions | 119.9 x 24.4 x 256.5 mm |
| Main Module Weight | 0.34 kg |
| I/O Module Dimensions | 241.3 x 24.4 x 103.1 mm |
| I/O Module Weight | 0.46 kg |
| Rack Space Requirement | 1 half-height front slot (main), 1 full-height rear slot (I/O module) |
FAQ
Frequently Asked Questions (FAQ)

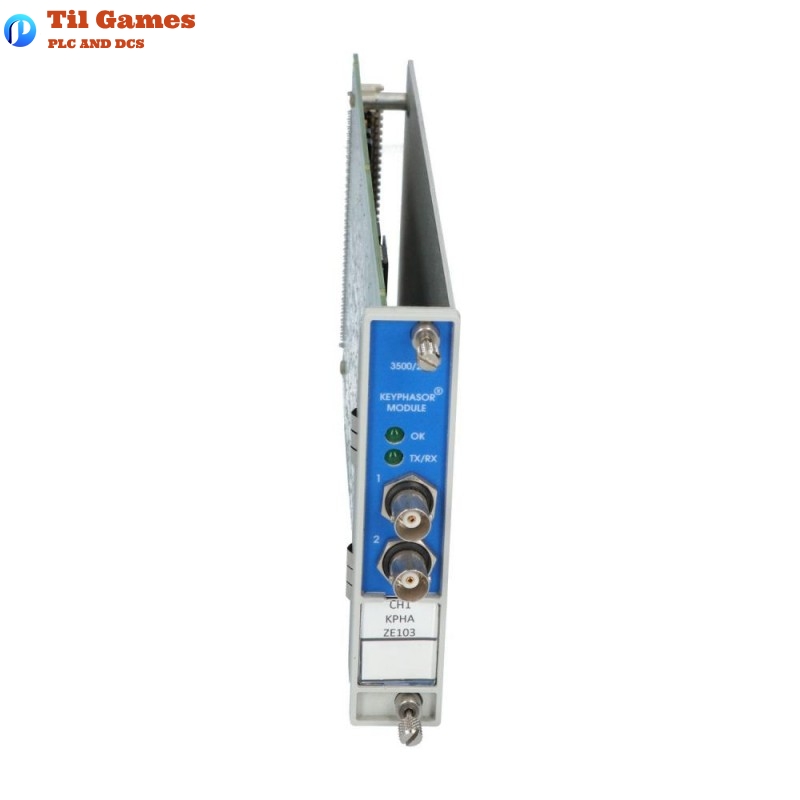

Q1: What is the function of the Bently Nevada 3500/25 Enhanced Keyphasor Module?
A1: It generates digital Keyphasor signals from proximity probes or magnetic pickups, used to synchronize vibration data with shaft rotation.
Q2: How many Keyphasor signals can a single module handle?
A2: Each module supports two channels. The system can support up to 4 signals in standard configuration, or up to 8 in a paired configuration.
Q3: Can this module be used in Triple Modular Redundant (TMR) applications?
A3: Yes, two modules are used in parallel to provide both primary and secondary Keyphasor signals for TMR systems.
Q4: What’s the minimum speed requirement for magnetic pickup signals?
A4: The minimum rotative speed required is greater than 200 rpm for magnetic pickup operation.
Q5: Is the Enhanced Keyphasor Module compatible with older Keyphasor systems?
A5: Yes, it is fully backward compatible in form, fit, and function with the previous Keyphasor modules (e.g., 125792-01).
Q6: What are the output options for buffered Keyphasor signals?
A6: Buffered signals are available via two front coaxial connectors and two rear Euro Style connectors.
Q7: What are the key differences between isolated and non-isolated I/O modules?
A7: Isolated I/O modules offer galvanic isolation and are preferred in magnetic pickup applications; however, they introduce more phase shift compared to non-isolated versions.
Q8: Does this module support field upgrades?
A8: Yes, it features field-upgradeable firmware and supports asset management data reporting for improved maintainability.
