Technical Specifications
| Parameter | Description |
|---|---|

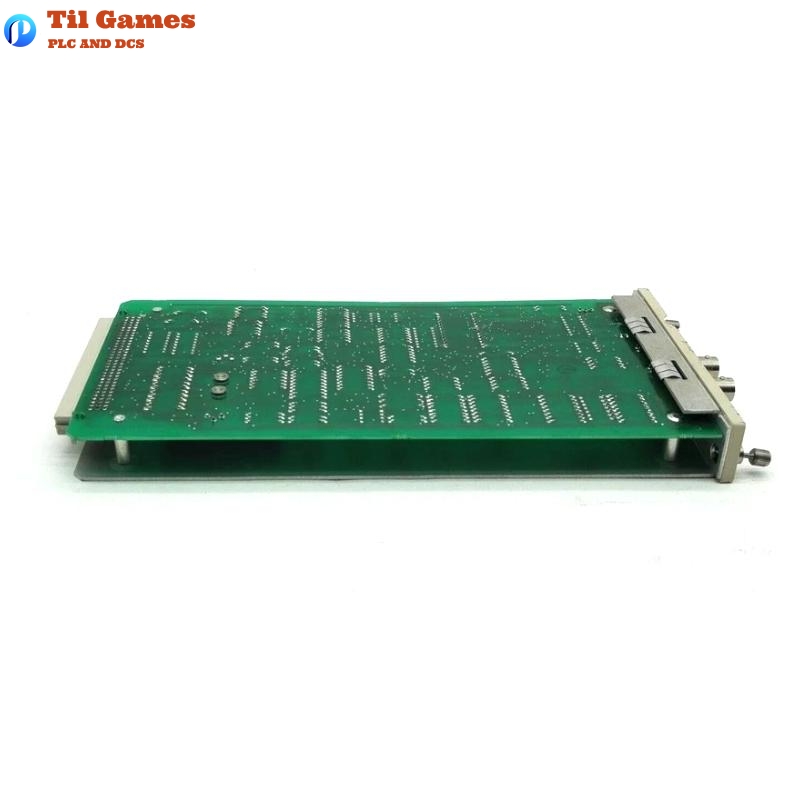

| Module Type | Two-channel, half-height Keyphasor Module |
| Power Consumption | 3.2 W typical |
| Input Type | Proximity probes or magnetic pickups |
| Input Voltage Range | +0.8 V to -21.0 V (Non-Isolated), +5 V to -11 V (Isolated) |
| Input Impedance | ≥ 21.8 kΩ |
| Input Speed Range | 1 to 1,200,000 cpm (0.017 to 20 kHz) |
| Output Speed Range | 1 to 99,999 cpm (0.017 to 1667 Hz) |
| Speed Accuracy (Non-processed) | ±1 cpm (0.017–100 Hz), ±8 cpm (101–500 Hz), ±1% (501 Hz–20 kHz) |
| Speed Accuracy (Processed) | ±1 cpm (0.017–60 Hz), ±8 cpm (61–150 Hz), ±1% (151 Hz–20 kHz) |
| Auto Threshold | ≥ 2 V peak-to-peak, ≥ 120 rpm (2 Hz) |
| Manual Threshold Range | 0 to -20 Vdc; min signal 500 mV peak-to-peak |
| Hysteresis | Selectable: 0.2 to 2.5 V |
| Buffered Outputs (Front/Rear) | Coaxial (front), Euro Style (rear) |
| Output Impedance | ≤ 504 Ω |
| Transducer Power Supply | -24 Vdc, max 40 mA per channel |
| LED Indicators | OK (Module status), TX/RX (Communication with RIM) |
| Operating Temperature | -30°C to +65°C (non-barrier I/O), 0°C to +65°C (with internal barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Main Module Dimensions (H x W x D) | 119.9 x 24.4 x 256.5 mm (4.72 x 0.96 x 10.10 in) |
| Main Module Weight | 0.34 kg (0.76 lbs.) |
| I/O Module Dimensions (H x W x D) | 241.3 x 24.4 x 103.1 mm (9.50 x 0.96 x 4.06 in) |
| I/O Module Weight | 0.46 kg (1.01 lbs.) |
| Rack Slot Requirement | 1 half-height front slot (Main), 1 full-height rear slot (I/O Module) |
| Compliance | FCC Part 15, EN 61000-6-2, EN 61000-6-4, EN 61010-1, RoHS 2011/65/EU |
| Hazardous Area Approvals | cNRTLus, ATEX, IECEx, CSA depending on configuration |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the Bently Nevada 3500/25 Enhanced Keyphasor Module?
A1: The module generates digital Keyphasor signals from rotating machinery to provide timing information for monitoring shaft speed and vibration phase measurements.
Q2: What types of sensors are compatible with the module?
A2: The module supports both proximity probes and magnetic pickups for signal input.
Q3: What is the maximum speed range the module can measure?
A3: It supports input frequencies up to 1,200,000 cpm (20 kHz) and outputs up to 99,999 cpm (1,667 Hz).
Q4: How many channels are available on a single 3500/25 module?
A4: Each module provides two channels for Keyphasor signal input and output.
Q5: Is the module suitable for use in hazardous environments?
A5: Yes, when ordered with appropriate options, the module carries approvals for Class I, Div 2, and ATEX/IECEx Zone 2 environments.
Q6: What are the installation slot requirements in a 3500 rack?
A6: The main module requires one half-height front slot, and the I/O module occupies one full-height rear slot.
Q7: What is the minimum speed required for magnetic pickups to operate properly?
A7: Magnetic pickups require a shaft speed greater than 200 rpm (3.3 Hz).
Q8: Can this module be used in Triple Modular Redundant (TMR) systems?
A8: Yes, for TMR systems, two modules are used in parallel to provide primary and secondary Keyphasor signals.
