Technical Specifications
| Parameter | Specification |
|---|---|

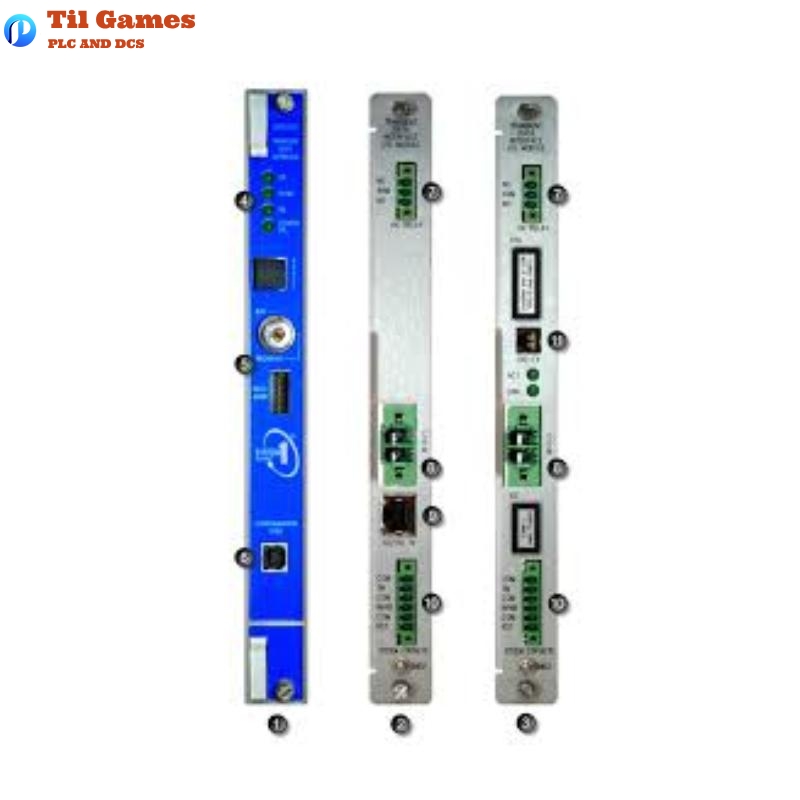

| Model Number | 3500/22M 288055-02 |
| Function | Interface between 3500 System and System 1 software for static/dynamic data |
| Installation Slot | Slot 1 (next to power supply in 3500 rack) |
| Power Consumption | 10.5 W |
| Communication Interfaces | USB-B, 10Base-T/100Base-TX Ethernet, 100Base-FX Fiber Ethernet |
| Protocols Supported | BN Host Protocol, BN TDI Protocol |
| Waveform Channels Supported | Up to 48 channels |
| Waveform Types | Synchronous & Asynchronous |
| Static Data Sampling | 1s intervals (10 min pre / 1 min post alarm), 100ms (20s pre / 10s post) |
| Waveform Data Capture | 2.5 min before alarm, 1 min after at 10s intervals |
| Startup/Coastdown Recording | Yes, with programmable speed/time intervals |
| Keyphasor Inputs | Supports up to 4 signals |
| Speed Range (1-16 channels) | 1 rpm to 100,000 rpm |
| Speed Range (17-24 channels) | 1 rpm to 60,000 rpm |
| Speed Range (25-48 channels) | 1 rpm to 30,000 rpm |
| Synchronous Sample Rates | 16 to 1024 samples/rev depending on revolutions |
| Asynchronous Spectrum Ranges | 10 Hz to 30 kHz |
| Relay Contact Rating | 5A @ 24 VDC / 120 VAC, 120W / 600 VA |
| Environmental Limits | Operating: -30°C to +65°C; Storage: -40°C to +85°C |
| Humidity | 95% non-condensing |
| Battery Life (powered) | 38 years @ 50°C |
| Battery Life (unpowered) | 12 years @ 50°C |
| Dimensions (HxWxD) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Mounting Requirements | 1 full-height front slot (TDI), 1 rear slot (I/O module) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary role of the 3500/22M TDI module in a 3500 system?
A1: The 3500/22M TDI serves as the interface between the 3500 monitoring system and System 1 software, enabling both static and transient data acquisition and communication via Ethernet.
Q2: Can the 3500/22M module capture transient vibration events such as machine startups and shutdowns?
A2: Yes, the TDI supports startup and coastdown data collection based on programmable speed/time intervals and trigger windows.
Q3: How many waveform channels can the TDI handle simultaneously?
A3: The 3500/22M TDI can collect waveform data from up to 48 dynamic channels.
Q4: Is the TDI module part of the machinery protection path?
A4: No, the TDI is not part of the critical protection path. It handles data collection and communication without affecting protection functions.
Q5: Does the 3500/22M support synchronous waveform sampling?
A5: Yes, it offers multiple user-selectable synchronous sampling rates, ranging from 16 to 1024 samples per revolution.
Q6: What types of Ethernet connections are supported for data communication?
A6: The module supports both copper (10Base-T/100Base-TX RJ-45) and fiber optic (100Base-FX MT-RJ) Ethernet connections.
Q7: Are there specific installation requirements when replacing a RIM with a TDI?
A7: Yes, when upgrading from a RIM to a TDI, the RIM I/O must be removed before inserting the TDI I/O to avoid damaging the module.
Q8: What is the operational temperature range for the TDI?
A8: The operating temperature range for the TDI is from -30°C to +65°C.
