Technical Specifications
| Parameter | Description |
|---|---|

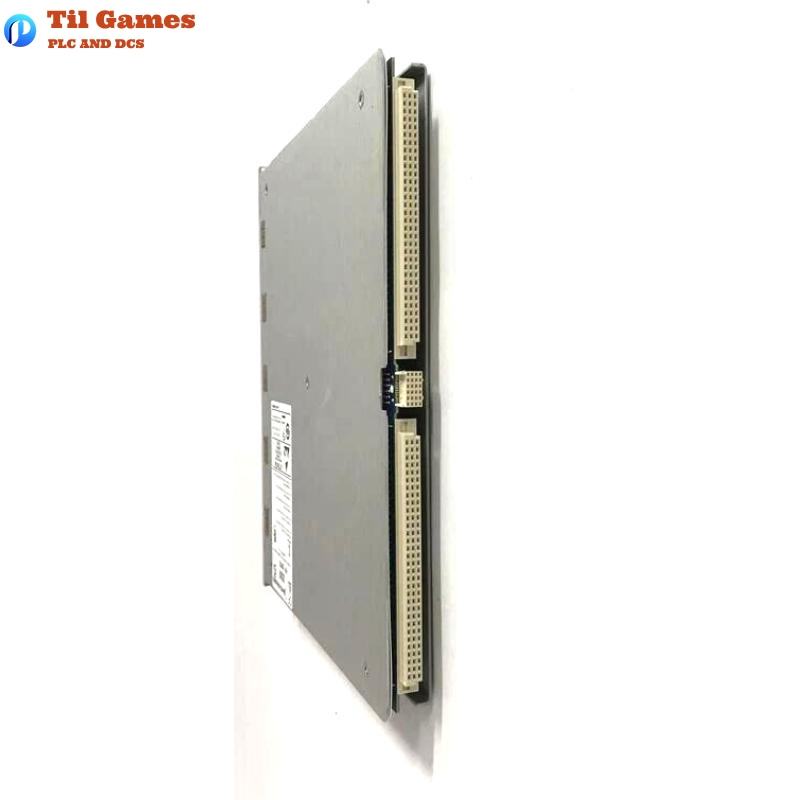

| Model | 3500/22M 288055-01L |
| Function | Transient Data Interface Module (TDI) for condition monitoring and system configuration |
| Power Consumption | 10.5 W |
| Data Ports | USB-B (Front), 10Base-T/100Base-TX Ethernet, 100Base-FX Fiber-Optic Ethernet |
| Front Panel Indicators | OK, TX/RX, TM, CONFIG OK LEDs |
| Relay Output Rating | 5A @ 24 VDC / 120 VAC (Standard); 1 mA @ 1 VDC (Gold-plated contact) |
| Data Collection Capabilities | Static, waveform (synchronous & asynchronous), transient, alarm-based, startup/coastdown |
| Waveform Channels Supported | Up to 48 channels |
| Waveform Sample Rates | From 16 to 1024 samples/rev over multiple revolutions |
| Spectrum Frequency Range | 10 Hz to 30 kHz |
| Keyphasor Inputs | Supports up to 4 inputs; max speed 100,000 RPM (16 channels), 60,000 RPM (24 channels), 30,000 RPM (48 channels) |
| Protocols Supported | BN Host Protocol, BN TDI Protocol over TCP/IP |
| Ethernet Port (Copper) | RJ-45, IEEE802.3 compliant, max length: 100 m |
| Ethernet Port (Fiber) | MT-RJ, IEEE802.3u compliant, max length: 2000 m (multimode fiber) |
| Environmental – Operating Temperature | -30°C to +65°C |
| Environmental – Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Battery Life (Powered/Unpowered) | 38 years / 12 years @ 50°C |
| Mounting Location | Slot 1 (next to power supply) |
| Compliance | FCC Part 15, EN 61000-6-2/6-4, EN 61010-1, RoHS, ATEX, IECEx, DNV, ABS |
| Dimensions (TDI Module) | 241.3 x 24.4 x 241.8 mm |
| Weight (TDI Module) | 0.91 kg |
| Dimensions (I/O Module) | 241.3 x 24.4 x 99.1 mm |
| Weight (I/O Module) | 0.20 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary role of the 3500/22M TDI module?
A1: It serves as the communication bridge between the 3500 system and condition monitoring/configuration software such as System 1. It combines the functions of a RIM and a communication processor.
Q2: Where should the 3500/22M be installed in the rack?
A2: The TDI must be installed in Slot 1, adjacent to the power supply module of the 3500 rack.
Q3: Is the 3500/22M part of the critical protection path?
A3: No. While it facilitates data transfer and configuration, it is not part of the primary protection path and does not affect automatic machine protection functions.
Q4: Can this module capture transient events like startup and coastdown?
A4: Yes, it supports collection of transient waveform data based on speed and time intervals during startup and coastdown events.
Q5: How many waveform channels does the 3500/22M support?
A5: It supports waveform sampling for up to 48 dynamic channels simultaneously.
Q6: What kind of network interfaces are available?
A6: It supports both copper (10Base-T/100Base-TX) and fiber-optic (100Base-FX) Ethernet interfaces with RJ-45 or MT-RJ connectors.
Q7: What environmental conditions can the module withstand?
A7: It operates in temperatures from -30°C to +65°C and can be stored at -40°C to +85°C. It also tolerates up to 95% non-condensing humidity.
Q8: Is special software required to enable full waveform data capture?
A8: Yes. A Channel Enabling Disk must be used to unlock dynamic data features for steady-state and transient waveform collection.
