Technical Specifications
| Parameter | Details |
|---|---|
| Power Consumption | 10.5 Watts |
| Ethernet Interface | 10Base-T/100Base-TX or 100Base-FX Fiber Optic (autosensing) |
| Front Panel Interface | USB-B (supports BN Host Protocol) |
| Communication Protocols | BN Host Protocol, BN TDI Protocol |
| Alarm Relay Rating | 5A @ 24 VDC/120 VAC (Standard), 1 mA @ 1 VDC (Gold-Plated) |
| Alarm Relay Type | Normally Energized, OPEN or CLOSED configurable |
| Waveform Channels | Up to 48 channels |
| Keyphasor Inputs | Supports up to 4 signals, speed range: 1 to 100,000 rpm (based on channels) |
| Startup/Coastdown Data | Supports programmable data capture during speed variation |
| Alarm Data | Static: 1s for 10 min pre / 1 min post; Waveform: 10s for 2.5 min pre / 1 min post |
| Waveform Sampling Options | Multiple sync rates (1024 to 16 samples/rev), async spans from 10 Hz to 30 kHz |
| Environmental Temperature | Operating: -30°C to +65°C; Storage: -40°C to +85°C |
| Humidity | 95% non-condensing |
| Battery Life | Powered: 38 years @ 50°C; Unpowered: 12 years @ 50°C |
| USB Cable Length | 5 m max (3 m included) |
| Ethernet Cable Length | Copper: 100 m max; Fiber: 2000 m max |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Rack Requirements | 1 full-height front slot (TDI), 1 full-height rear slot (I/O module) |
| Certifications | FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS 2011/65/EU |
| Hazardous Area Approvals | ATEX, IECEx, CSA/NRTL/C, Class I Div 2 & Zone 2 (consult detailed drawing) |
FAQ
Frequently Asked Questions (FAQ)

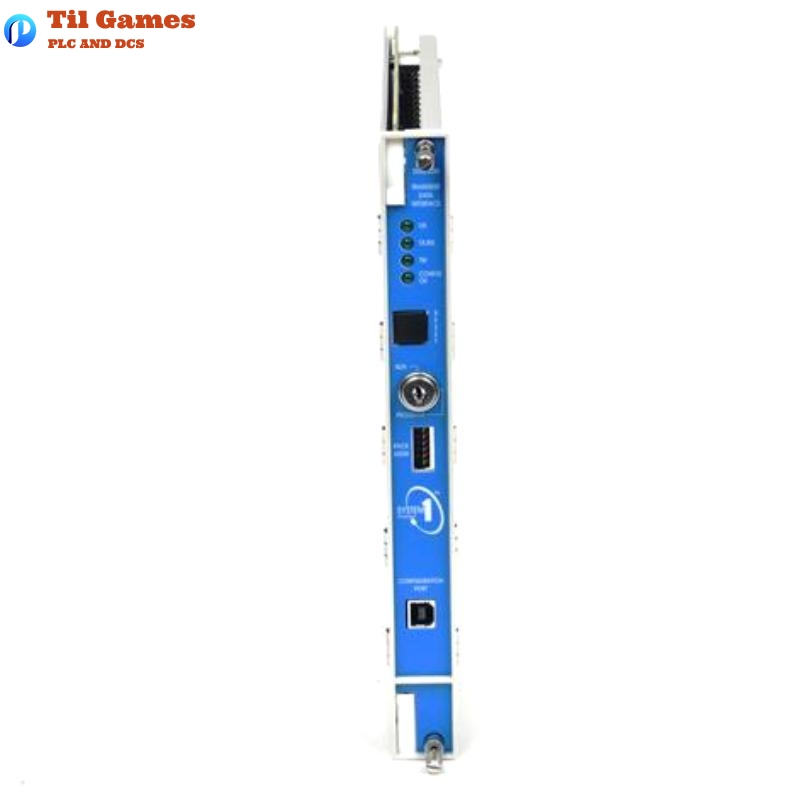

Q1: What is the primary function of the 3500/22M TDI module?
A1: The 3500/22M TDI serves as the interface between the 3500 monitoring system and System 1 or configuration software. It combines rack interface and communication functions.
Q2: Can the 3500/22M TDI operate without affecting machine protection?
A2: Yes, the TDI is not part of the critical protection path. It does not impact the machine’s automatic protection functions.
Q3: What kind of data does the 3500/22M collect?
A3: It collects steady-state, transient, static, and waveform data, including alarm and startup/coastdown data.
Q4: Is a special disk required for transient waveform capture?
A4: Yes, a Channel Enabling Disk must be installed to activate dynamic and transient waveform capture features.
Q5: What are the available network connection options for the module?
A5: The module supports both copper (10Base-T/100Base-TX) and fiber optic (100Base-FX) Ethernet interfaces.
Q6: How many waveform sampling configurations are supported?
A6: The module supports multiple synchronous sampling configurations ranging from 1024 to 16 samples per revolution and asynchronous spans from 10 Hz to 30 kHz.
Q7: Where should the 3500/22M be installed in the rack?
A7: The module must be installed in Slot 1, directly adjacent to the power supplies.
Q8: What is the operational temperature range of the 3500/22M TDI?
A8: The module operates within a temperature range of -30°C to +65°C, suitable for harsh industrial environments.
