Technical Specifications
| Parameter | Description |
|---|---|
| Power Consumption | 10.5 Watts |
| Communication Ports | USB-B (Front), RJ-45 for 10Base-T/100Base-TX, MT-RJ for 100Base-FX (fiber) |
| Protocols Supported | BN Host Protocol, BN TDI Protocol (Ethernet TCP/IP) |
| Waveform Sampling | Synchronous: 16–1024 samples/rev (up to 128 revs); Asynchronous: up to 30 kHz |
| Dynamic Channels Supported | Up to 48 channels for waveform collection |
| Keyphasor Inputs | 4 signals; up to 100,000 rpm (dependent on number of channels) |
| Startup/Coastdown Capture | Time and speed interval programmable; multiple events supported |
| Alarm Data Collection | Pre/post-event data; static values at 1s & 100ms; waveform every 10s |
| Front Panel Indicators | OK, TX/RX, TM, CONFIG OK LEDs |
| Relay Contact Rating | 5A @ 24VDC/120VAC (Standard); 1 mA @ 1VDC (Gold-plated) |
| Control Interfaces | Rack Reset button, Address switch, Configuration Keylock |
| Environmental Limits | -30°C to +65°C operating; -40°C to +85°C storage; 95% non-condensing humidity |
| Compliance | FCC, CE, DNV GL, ABS, CSA, ATEX, IECEx, RoHS |
| Battery Life | 38 years (powered), 12 years (unpowered) @ 50°C |
| Rack Slot Requirement | 1 full-height front slot (TDI), 1 full-height rear slot (I/O Module) |
| Dimensions (Main TDI Module) | 241.3 mm x 24.4 mm x 241.8 mm (H x W x D) |
| Weight (Main TDI Module) | 0.91 kg |
| Dimensions (I/O Module) | 241.3 mm x 24.4 mm x 99.1 mm (H x W x D) |
| Weight (I/O Module) | 0.20 kg |
FAQ
Frequently Asked Questions (FAQ)

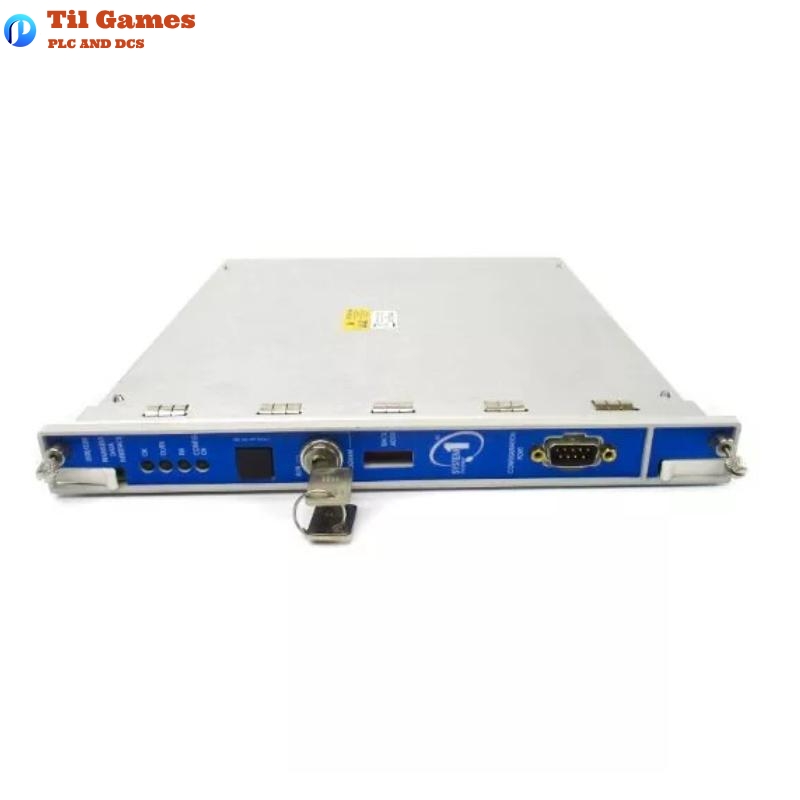

Q1: What is the primary function of the 3500/22M Transient Data Interface Module?
A1: The 3500/22M TDI serves as the main interface between the 3500 monitoring rack and software such as System 1. It combines rack interface functionality with transient and steady-state data acquisition over Ethernet.
Q2: Can the TDI collect both static and dynamic data?
A2: Yes, the TDI collects static data by default. For dynamic waveform data, an optional Channel Enabling Disk is required.
Q3: Where is the 3500/22M installed within the 3500 rack?
A3: The TDI is always installed in Slot 1, directly adjacent to the power supplies of the rack.
Q4: How many dynamic channels can be enabled on the TDI?
A4: The TDI supports waveform data collection for up to 48 channels, depending on configuration.
Q5: What type of Ethernet connections are supported by the TDI?
A5: The module supports both copper (10Base-T/100Base-TX) via RJ-45 and fiber optic (100Base-FX) via MT-RJ connectors.
Q6: Does the TDI impact the safety shutdown path of the 3500 system?
A6: No, the TDI is not in the critical monitoring path. It does not interfere with the protection functions of the rack.
Q7: What is the difference between synchronous and asynchronous waveform collection in the TDI?
A7: Synchronous collection is tied to machine speed (samples per revolution), while asynchronous collection is time-based and suited for spectrum analysis up to 30 kHz.
Q8: How do I know if the TDI is functioning correctly?
A8: The front panel includes status LEDs for power (OK), communication (TX/RX), configuration status (CONFIG OK), and Trip Multiply mode, providing clear operational indicators.
