Technical Specifications
| Parameter | Description |
|---|---|

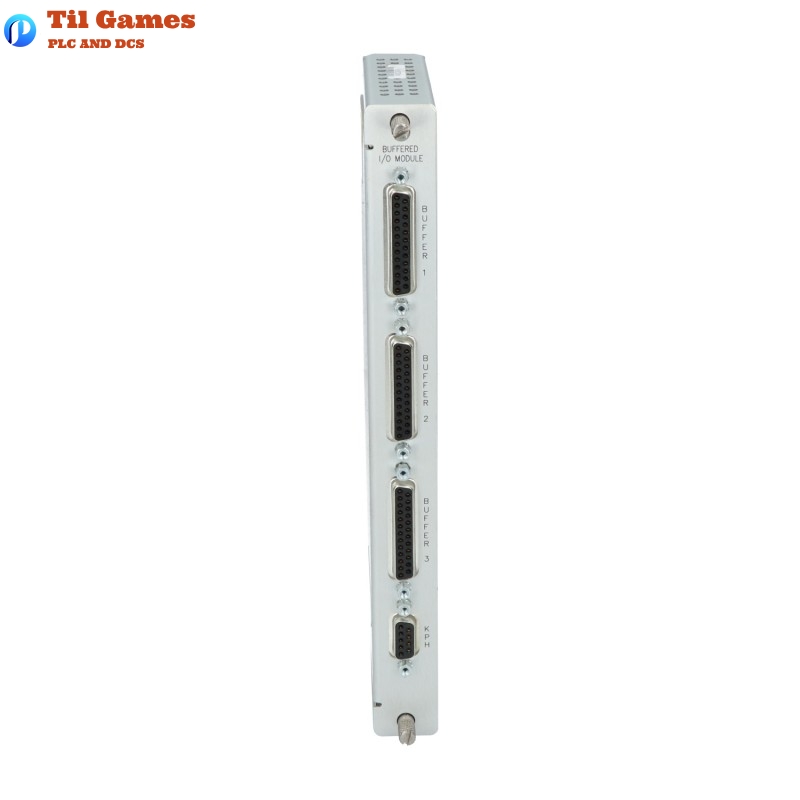

| Module Function | Buffered Signal Output Module (I/O Module for TDI) |
| Part Number | 147364-01 |
| Application | Interfaces with 3500/22M TDI Module; provides buffered outputs of sensor data |
| Ethernet Communication | 10Base-T / 100Base-TX or 100Base-FX (fiber optic), auto-sensing |
| Communication Protocols | BN Host Protocol, BN TDI Protocol (Ethernet TCP/IP) |
| Cable Connector Type | RJ-45 for copper, MT-RJ male for fiber optic |
| Cable Length (Max) | 100 m (Ethernet), 2000 m (Fiber optic) |
| Relay Contact Rating | 5 A @ 24 VDC/120 VAC; 120 W / 600 VA max |
| Min Relay Load (Gold-plated) | 1 mA @ 1 VDC |
| OK Relay Contact Type | Normally Energized, configurable (Open/Closed) |
| Front Panel Indicators | OK, TX/RX, TM, CONFIG OK LEDs |
| Keyphasor Input Support | Up to 4 Keyphasor signals, speed up to 100,000 rpm (depends on channel count) |
| Data Sampling (Synchronous) | Configurable from 1024 samples/rev down to 16 samples/rev over various revs |
| Data Sampling (Asynchronous) | Spectrum up to 30 kHz, anti-alias filtered |
| Waveform Channels Supported | Up to 48 channels for waveform capture |
| Alarm Data Capture | Pre/post-event static and waveform data, programmable intervals |
| Environmental Rating | – Operating Temp: -30°C to +65°C |
| – Storage Temp: -40°C to +85°C | |
| – Humidity: 95%, non-condensing | |
| Compliance | FCC, EMC (EN61000-6-2, EN61000-6-4), EN61010-1, RoHS, Maritime (DNV, ABS) |
| Hazardous Area Approvals | Class I Div 2, Zone 2 (ATEX, IECEx, CSA) |
| Power Consumption | 10.5 W |
| Dimensions (I/O Module) | 241.3 x 24.4 x 99.1 mm |
| Weight (I/O Module) | 0.20 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 3500/22M 147364-01 Buffered Signal Output Module?
A1: It provides buffered outputs of dynamic sensor signals from the 3500 system, enabling connection to external data acquisition and analysis systems.
Q2: Is the 147364-01 module compatible with fiber optic networks?
A2: Yes, it supports 100Base-FX fiber optic communication using an MT-RJ connector.
Q3: What Ethernet standards are supported?
A3: It supports 10Base-T and 100Base-TX for copper connections, and 100Base-FX for fiber optics, all auto-sensing.
Q4: Can this module be used in hazardous environments?
A4: Yes, it is certified for Class I, Division 2 and Zone 2 environments, with ATEX, IECEx, and CSA approvals.
Q5: What is the maximum cable length for communication?
A5: For copper Ethernet, the maximum is 100 meters; for fiber optic connections, it can go up to 2000 meters.
Q6: What kind of signal data can be collected?
A6: It supports synchronous and asynchronous waveform collection, static values, and transient data including pre- and post-alarm records.
Q7: How many waveform channels does the module support?
A7: It can collect waveform data from up to 48 channels simultaneously.
Q8: What are the dimensions and weight of the Buffered Signal Output Module?
A8: The dimensions are 241.3 mm x 24.4 mm x 99.1 mm, and the weight is 0.20 kg.
