Technical Specifications
| Parameter | Details |
|---|---|

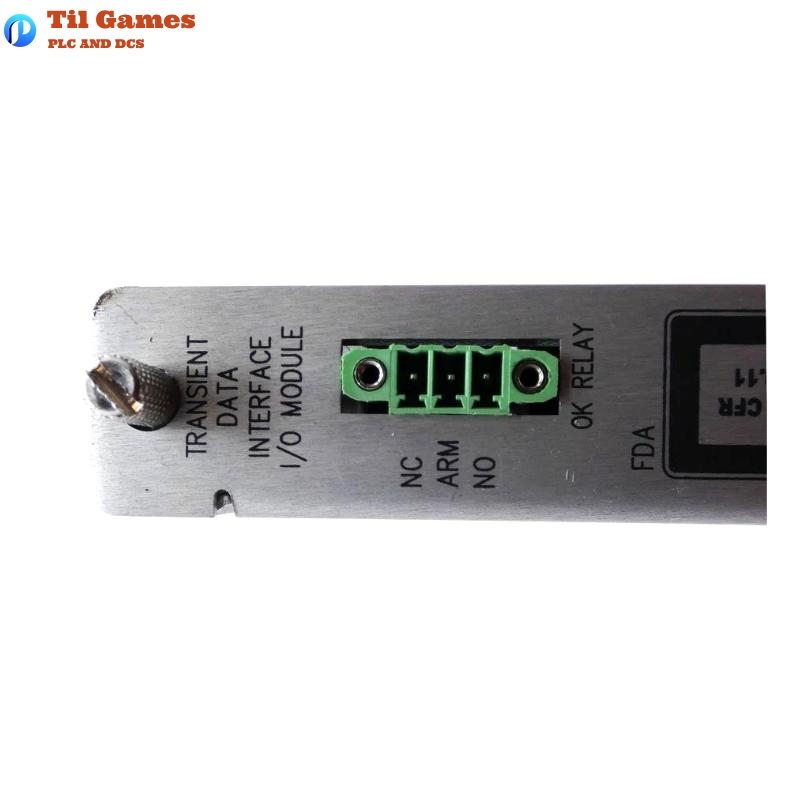

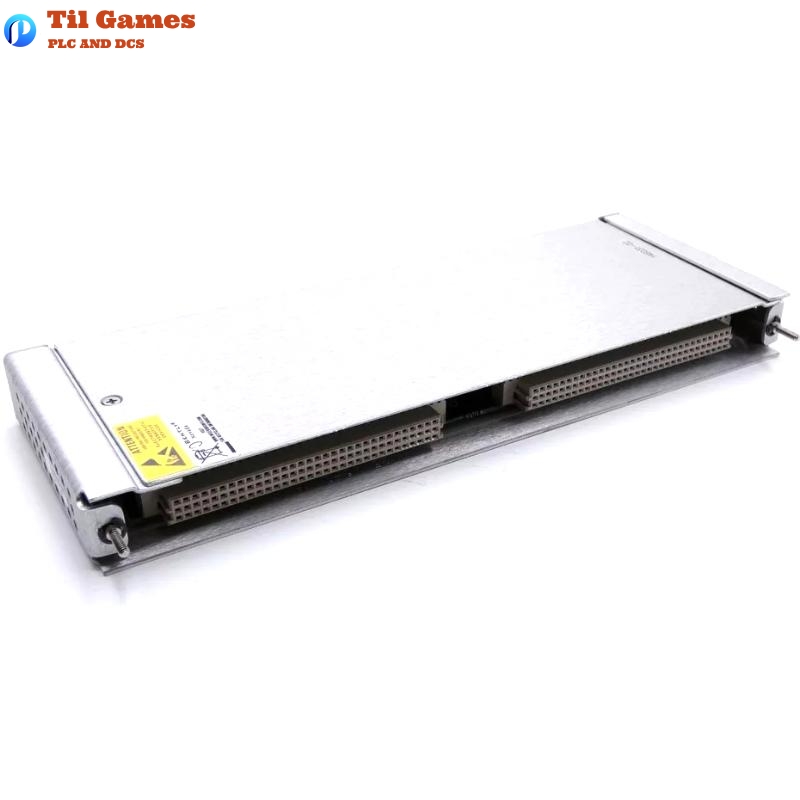

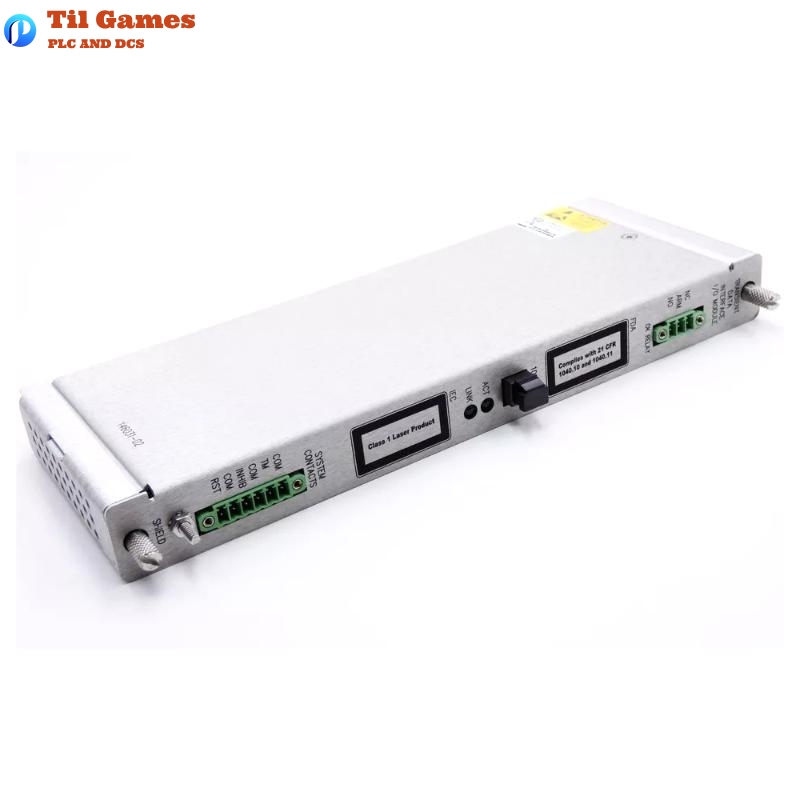

| Product Type | Transient Data Interface (TDI) I/O Module |
| Part Number | 146031-02 |
| Ethernet Interface | 100Base-FX (Fiber Optic), Full Duplex Multimode |
| Protocols Supported | BN Host Protocol, BN TDI Protocol (Ethernet TCP/IP) |
| Connector Type | MT-RJ Male Fiber Optic Connector |
| Maximum Cable Length | 2000 meters (6560 feet) |
| Mounting Location | One full-height rear slot in 3500 rack |
| Power Consumption | Provided through TDI Main Module |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 95%, non-condensing |
| Status Indicators | OK, TX/RX, TM, CONFIG OK LEDs |
| OK Relay Rating (Standard) | 5A @ 24VDC/120VAC, max 120W/600VA |
| OK Relay Rating (Gold-plated) | Down to 1mA @ 1VDC |
| Arc Suppression | Built-in |
| Reset and Address Control | Front Panel Reset Button, Address Switch, Configuration Keylock |
| Hazardous Area Approvals | ATEX, IECEx, cNRTLus (Class I, Div 2 and Zone 2) |
| Environmental Certifications | EN 61000-6-2, EN 61000-6-4, EN 61010-1, RoHS Directive 2011/65/EU |
| Dimensions (H x W x D) | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.20 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 146031-02 I/O Module?
A1: It provides fiber optic Ethernet communication (100Base-FX) between the 3500/22M TDI and the host software for transient and static data transfer.
Q2: What type of connector does the 146031-02 module use?
A2: It uses an MT-RJ male fiber optic connector for 100Base-FX Ethernet connections.
Q3: What is the maximum supported fiber optic cable length?
A3: The maximum cable length for 100Base-FX fiber optic connection is 2000 meters (6560 feet).
Q4: Is the module compatible with hazardous environments?
A4: Yes, it is certified for use in hazardous areas including ATEX and IECEx Zone 2, and Class I Division 2.
Q5: Can this module be used as a standalone interface in a rack?
A5: No, it must be used in conjunction with the 3500/22M TDI main module and occupies a rear I/O slot.
Q6: How is the module powered?
A6: The 146031-02 I/O module receives power through its connection to the TDI main module. It does not require separate power input.
Q7: Does the module support redundancy?
A7: No, the TDI and associated I/O modules do not inherently support redundancy; however, redundancy can be implemented at the system level.
Q8: How does the module indicate its operational status?
A8: It uses front-panel LEDs to display OK, TX/RX communication, Trip Multiply mode, and configuration status.
