Technical Specifications
| Parameter | Details |
|---|---|

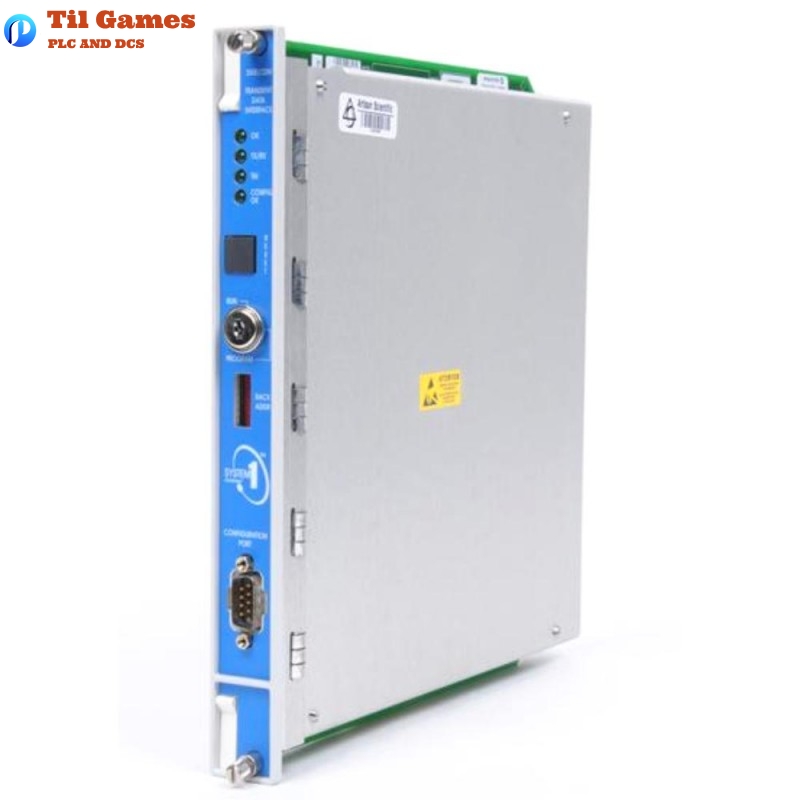

| Product Type | Transient Data Interface Module |
| Model Number | 3500/22M with I/O Module 146031-01 + TDI Module 288055-01 |
| Power Consumption | 10.5 Watts |
| Communication Interfaces | USB-B, 10Base-T/100Base-TX Ethernet, 100Base-FX Fiber-Optic Ethernet |
| Communication Protocols | BN Host Protocol, BN TDI Protocol |
| Keyphasor Input Support | Up to 4 Keyphasor signals, speed up to 100,000 rpm |
| Waveform Channels Supported | 48 channels |
| Synchronous Sampling Rates | From 1024 samples/rev (2 revs) to 16 samples/rev (128 revs) |
| Asynchronous Sampling Ranges | 10 Hz to 30 kHz (anti-alias filtered) |
| Front Panel Indicators | OK, TX/RX, TM, CONFIG OK LEDs |
| Relay Rating | 5A @ 24 VDC / 120 VAC; gold-plated contacts rated down to 1 mA @ 1 VDC |
| Controls | Rack Reset Button, Address Switch, Configuration Keylock |
| Environmental – Operating Temp. | -30°C to +65°C (-22°F to +149°F) |
| Environmental – Storage Temp. | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Battery Life (Powered / Unpowered) | 38 years / 12 years @ 50°C |
| Data Types Supported | Static, Transient, Startup/Coastdown, Alarm Pre/Post |
| Compliance | FCC, EMC, RoHS, DNV GL, ABS, ATEX/IECEx, cNRTLus |
| Physical Dimensions (Main Module) | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight (Main Module) | 0.91 kg (2.0 lbs) |
| Physical Dimensions (I/O Module) | 241.3 mm x 24.4 mm x 99.1 mm |
| Weight (I/O Module) | 0.20 kg (0.44 lbs) |
| Rack Space Requirements | 1 full-height front slot (TDI), 1 full-height rear slot (I/O module) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the 3500/22M Transient Data Interface Module?
A1: The 3500/22M TDI functions as the interface between the 3500 monitoring system and software such as System 1. It integrates rack communication and data acquisition capabilities in one module.
Q2: Can the TDI module replace the 3500/20 RIM in a rack?
A2: Yes, the TDI replaces the RIM and enhances the rack with data capture and communication functions. However, the old RIM I/O module must be removed before installing the TDI to prevent damage.
Q3: How is the 3500/22M installed in the rack?
A3: It is installed in Slot 1 of the rack, which is adjacent to the power supply. The corresponding I/O module is mounted at the rear of the same slot.
Q4: What are the data acquisition capabilities of this module?
A4: It captures static, transient, and alarm data, and supports waveform sampling for up to 48 channels with both synchronous and asynchronous options.
Q5: How is configuration security maintained?
A5: The front panel includes a configuration keylock that allows switching between RUN and PROGRAM modes. This ensures unauthorized configuration changes are prevented.
Q6: Does the module support fiber-optic communication?
A6: Yes, the 100Base-FX option supports full-duplex multimode fiber-optic Ethernet with MT-RJ connectors, allowing up to 2000 meters of cable length.
Q7: What environmental conditions can the 3500/22M tolerate?
A7: The module operates in temperatures ranging from -30°C to +65°C and can be stored from -40°C to +85°C with 95% non-condensing humidity tolerance.
Q8: Is special software required for the TDI?
A8: Yes, it works with Bently Nevada’s System 1 software for condition monitoring and diagnostic purposes, and with 3500 Configuration Software for rack setup.
