Technical Specifications
| Parameter | Specification |
|---|---|

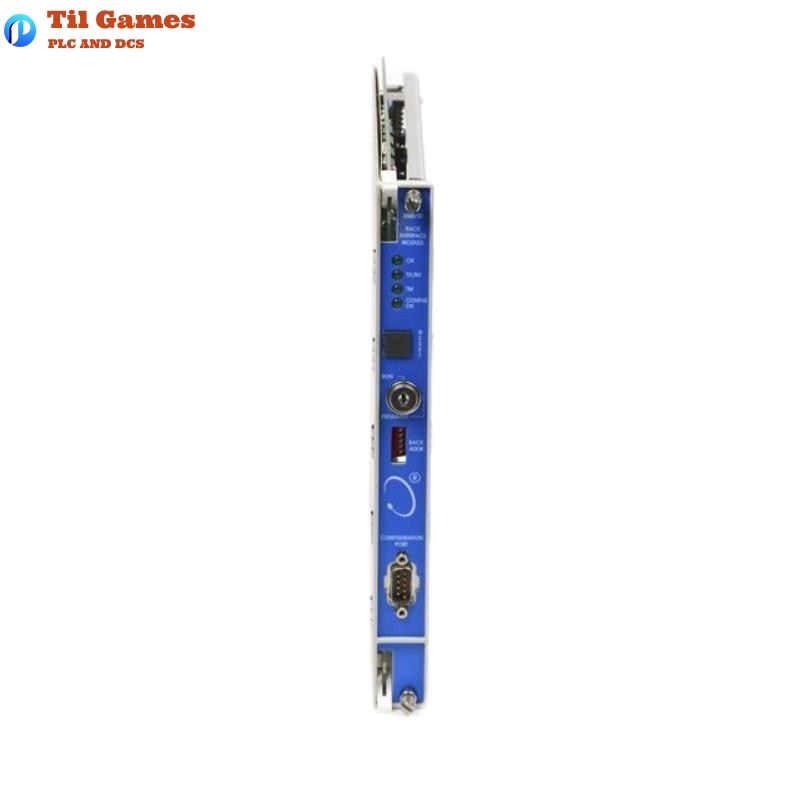

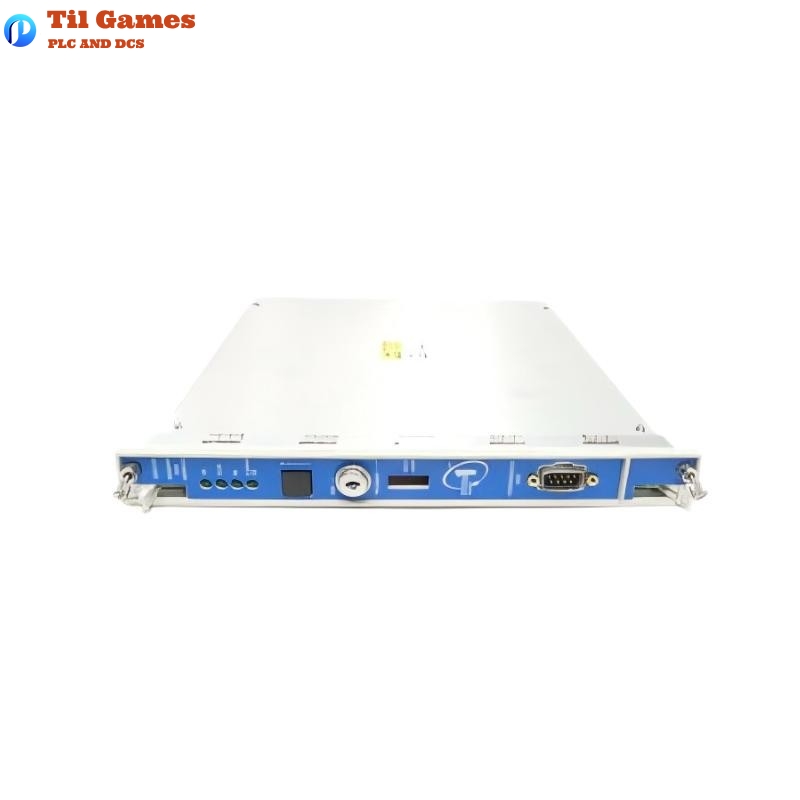

| Module Type | Transient Data Interface Module (TDI) |
| Model Number | 3500/22M 138607-01A |
| Power Consumption | 10.5 Watts |
| Front Panel Interface | USB-B |
| Ethernet I/O (Copper) | 10Base-T/100Base-TX, RJ-45, up to 100 meters |
| Ethernet I/O (Fiber) | 100Base-FX, MT-RJ Male, up to 2000 meters (multimode fiber) |
| Communication Protocols | BN Host Protocol, BN TDI Protocol (TCP/IP) |
| LED Indicators | OK, TX/RX, TM (Trip Multiply), CONFIG OK |
| Relay Contact Rating | 5A @ 24 VDC/120 VAC; 1mA @ 1 VDC (gold-plated) |
| Environmental – Operating | -30°C to +65°C (-22°F to +149°F) |
| Environmental – Storage | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Battery Life (Powered) | 38 years @ 50°C |
| Battery Life (Unpowered) | 12 years @ 50°C |
| Keyphasor Support | Up to 4 signals; up to 100,000 rpm (1–16 ch), 60,000 rpm (17–24 ch), 30,000 rpm (25–48 ch) |
| Waveform Channels Supported | Up to 48 |
| Synchronous Waveform Rates | From 16 samples/rev to 1024 samples/rev |
| Asynchronous Sampling Range | From 10 Hz to 30 kHz |
| Transient Event Capture | Triggered by speed bands, multiple events, user-configurable |
| Alarm Data Capture | Static and waveform data before and after alarm events |
| Data Capture Resolution | 100 ms for 30 sec total, 1 sec for 11 min total, waveform at 10s intervals |
| Mounting Requirement | 1 full-height front and rear rack slot |
| Physical Dimensions (TDI) | 241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
| Weight (TDI) | 0.91 kg (2.0 lbs) |
| I/O Module Dimensions | 241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
| I/O Module Weight | 0.20 kg (0.44 lbs) |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the main purpose of the 3500/22M TDI module?
A1: It serves as the communication interface between the 3500 monitoring rack and external condition monitoring software, capturing both steady-state and transient data.
Q2: Can this module support dynamic waveform data capture?
A2: Yes, with the use of a Channel Enabling Disk, the module can capture high-resolution waveform and transient data.
Q3: How many channels can the 3500/22M monitor for waveform data?
A3: The module supports waveform data collection for up to 48 dynamic channels.
Q4: What types of network interfaces does the 3500/22M support?
A4: It supports both 10Base-T/100Base-TX Ethernet (copper) and 100Base-FX (fiber optic) Ethernet connections.
Q5: What happens if the RIM I/O is left installed when replacing it with a TDI?
A5: It will damage the new TDI. Always remove the RIM and its I/O before installing the TDI and its corresponding I/O.
Q6: What are the operational environmental limits for the TDI module?
A6: The operating temperature range is -30°C to +65°C, and it can be stored at -40°C to +85°C with up to 95% non-condensing humidity.
Q7: Is this module involved in automatic machinery protection functions?
A7: No, the TDI is not part of the critical protection path. Its failure does not affect the protection capabilities of the rack.
Q8: What software platforms are compatible with the 3500/22M?
A8: It is compatible with Bently Nevada’s System 1 Condition Monitoring software and 3500 Configuration software.
