Product Description

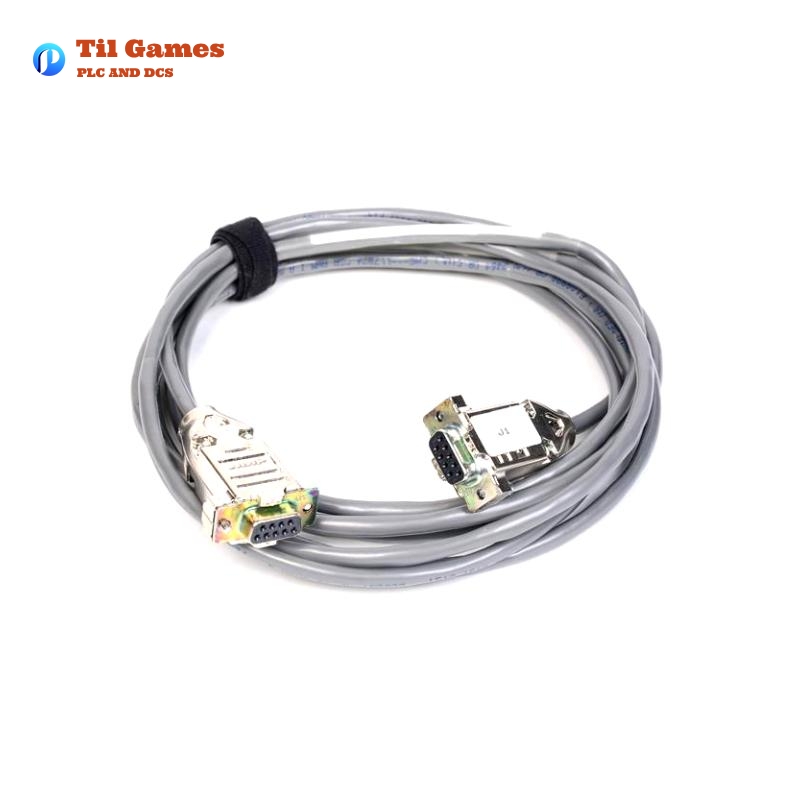

The Bently Nevada 3500/20 131178-01 Female to Female DB9 Cable is a high-quality communication cable designed for use within the Bently Nevada 3500 System. This cable plays a critical role in ensuring reliable data transmission between various system modules. Built with durable shielding and robust insulation, it ensures high-performance signal integrity while minimizing interference.

This DB9 (9-position D-Sub) female-to-female cable is optimized for connecting Bently Nevada monitoring and diagnostic modules, particularly within industrial and machinery protection environments. The 300V-rated gray cable is engineered for stability in harsh conditions, offering superior electrical characteristics that guarantee precision data transfer.

---

Product Specifications

Attribute	Details
Product Name	Bently Nevada 3500/20 131178-01 DB9 Cable
Part Number	131178-01
Brand	Bently Nevada
Connector Type	DB9 Female to DB9 Female
Cable Type	Shielded Communication Cable
Rated Voltage	300V
Cable Length	Varies based on system requirements
Color	Gray
Insulation Material	High-quality PVC
Shielding	EMI/RFI Shielded
Operating Temperature	-40°C to +85°C
Application	Bently Nevada 3500 System Communication
Dimensions	25 x 15 mm
Weight	0.5 kg

---

Applications

The Bently Nevada 3500/20 131178-01 DB9 Female-to-Female Cable is used for multiple applications within industrial monitoring and protection systems, ensuring stable communication and data integrity between different modules.

• Machinery Protection Systems – Connects diagnostic modules within the Bently Nevada 3500 series to ensure continuous monitoring of critical rotating equipment.
• Vibration Monitoring Systems – Facilitates precise signal transmission for real-time condition monitoring.
• Data Acquisition Systems – Used for transmitting critical machine condition data to controllers and processors.
• Industrial Control Systems – Ensures seamless communication between various subsystems within plant automation.
• Remote Monitoring – Aids in extending communication capabilities between remote Bently Nevada system modules.

---

Product Advantages

The Bently Nevada 3500/20 131178-01 DB9 Cable offers numerous benefits in high-performance industrial environments:

✔ High Signal Integrity – Engineered with shielding to minimize EMI/RFI interference, ensuring reliable data transmission.

✔ Durable Construction – Built with high-quality PVC insulation and robust connectors for enhanced durability in industrial applications.

✔ Wide Compatibility – Designed for seamless integration within Bently Nevada 3500 monitoring systems and compatible diagnostic equipment.

✔ Stable Power and Signal Transmission – Ensures consistent performance, minimizing data loss and signal degradation.

✔ Temperature Resistant – Operates effectively in extreme temperature ranges from -40°C to +85°C, suitable for demanding environments.

✔ Easy Installation – Standard DB9 female-to-female connectors allow for straightforward plug-and-play connectivity.

✔ Reliable Performance – Used in mission-critical monitoring systems to maintain equipment reliability and minimize unplanned downtime.

---
