Product Introduction:

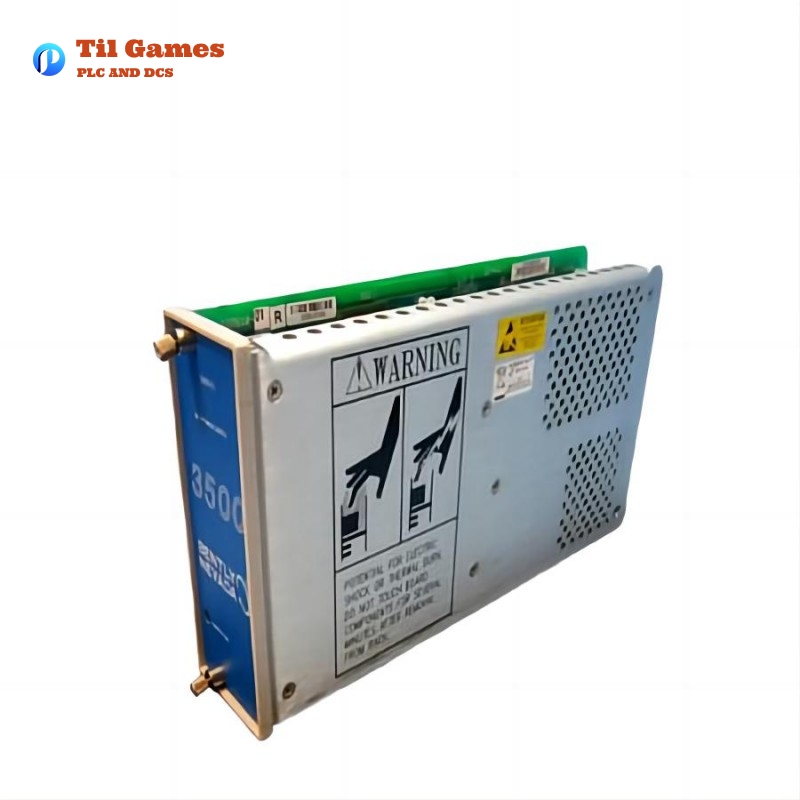

The Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply is a robust and reliable power supply unit designed for use within the Bently Nevada 3500 Machinery Protection System. This half-height module is part of the 3500/15 system, which is designed for integration into specialized racks. The Universal AC Power Supply ensures continuous and uninterrupted operation of machinery protection and monitoring systems by providing the necessary power to the modules in the rack. It is designed to support AC or DC input configurations for system flexibility.
Product Applications:
The Universal AC Power Supply is suitable for use in critical industrial applications where machinery protection and monitoring are essential. These include:
- Power Generation Plants: Ensuring continuous power to protective modules in turbine generators, compressors, and other machinery.
- Oil and Gas Industries: Reliable power supply for monitoring and protection systems in hazardous environments.
- Manufacturing: Powering systems that monitor heavy machinery such as motors, pumps, and conveyors.
- Refineries and Petrochemical Plants: Power supply for systems used to safeguard high-value industrial equipment.
The versatility of the Universal AC Power Supply makes it compatible with a wide range of applications, enhancing its reliability in various industrial environments.
Product Features:
- Hot-swappable Power Supply: As long as two power supplies are installed in the system, the removal or insertion of one does not affect the system’s operation.
- Wide Input Voltage Range: Supports 110-220 Vac nominal, and operates from 85-264 Vac RMS in non-hazardous areas, and 85-250 Vac RMS in hazardous areas.
- Redundant Power Supply Configuration: A backup power supply ensures uninterrupted operation of the system if the primary supply fails.
- Compatibility with Universal PIM: It works with the Universal AC Power Input Module (PIM), which is designed for a broader range of industrial applications.
- Failure-Tolerant: The system can continue to operate normally even if one power supply module is removed or fails.
- Dimensions and Weight: Compact design with dimensions of 120.7 x 50.8 x 251.5 mm and weight of 1.39 kg for easy installation and space optimization.
Product Advantages:
- Reliability: The 3500/15 Universal AC Power Supply ensures continuous and dependable power, reducing downtime and ensuring system performance.
- Flexibility: With its wide voltage range and ability to support both AC and DC power inputs, the module can be adapted to meet various industrial requirements.
- Redundancy: Dual power supplies (primary and backup) ensure that the system remains operational even in the event of a failure of one unit.
- Compact Design: The half-height module saves space within the rack, enabling better utilization of the available space.
- Hot-Swappable: Modules can be replaced or installed without impacting the functioning of the rest of the system.
Latest Product News:
- “Bently Nevada Expands Flexibility with the 3500/15 Universal AC Power Supply”
- “New Universal AC Power Supply Enhances the Efficiency of Machinery Protection Systems”
- “Bently Nevada Delivers Robust, Redundant Power Solutions for Critical Industrial Systems”
Product Specifications:
| Parameter | Specification |
|---|---|
| Product Name | Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply |
| Input Voltage | 110 to 220 Vac (nominal), 85 to 264 Vac (rms) for non-hazardous, 85 to 250 Vac (rms) for hazardous areas |
| Input Frequency | 47 to 63 Hz |
| Input Voltage Peak | 120 to 373 Vac pk |
| Dimensions | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Compatibility | Compatible with Universal AC PIM, incompatible with legacy AC or DC supplies |
| Backup Configuration | Dual Power Supply (Primary and Backup) |
| System Rack Placement | Half-height module, installed in specific left-side slots |
| Environmental Compatibility | Suitable for both non-hazardous and hazardous areas |
Related Models:
| Model Number | Description | Key Features |
|---|---|---|
| 3500/15 106M1080-01 | Universal DC Power Supply | DC input, compatible with 3500 system, redundant design |
| 3500/15 106M1090-01 | High Voltage AC Power Supply | High voltage AC input, backup power supply option |
| 3500/15 106M1100-01 | Low Voltage AC Power Supply | Low voltage AC input, used in harsh environments |
| 3500/16 106M1071-01 | 3500 System Power Distribution Unit | Distributes power to all 3500 modules |
| 3500/18 106M1012-01 | 3500 System 24VDC Power Supply | 24VDC output, suitable for control systems |
| 3500/19 106M1060-01 | Remote Power Input Module | For remote locations with specialized power needs |
| 3500/15 106M1079-02 | Universal AC Power Supply (alternative model) | Offers same functionality with slight modifications |
| 3500/19 106M1099-01 | Battery Backup Power Supply | Provides battery backup in case of power failure |
| 3500/20 106M1111-01 | Backup AC Power Supply | Standalone backup power unit for critical systems |
| 3500/15 106M1122-01 | Dual AC Power Supply (High Voltage) | Dual voltage AC input, for high-demand industrial use |
Bently Nevada Popular Models:
| Model Number | Description | Key Features |
|---|---|---|
| 3500/22 106M1041-01 | Vibration Monitoring System | High-performance vibration sensors and monitoring |
| 3500/25 106M1003-01 | Machinery Protection System | Protects machinery against unplanned shutdowns |
| 3500/40 106M1020-01 | Gas Turbine Monitoring System | Designed for gas turbine protection and monitoring |
| 3500/42 106M1055-01 | Motor Protection System | Provides monitoring for motor health and performance |
| 3500/45 106M1093-01 | Pump Monitoring System | Ensures continuous pump operation and performance |
| 3500/50 106M1078-01 | Rotating Equipment Protection System | Protection and analysis of rotating machinery |
| 3500/60 106M1043-01 | Compressor Monitoring System | Designed for continuous monitoring of compressors |
| 3500/70 106M1015-01 | Electrical Protection and Monitoring | Protects electrical equipment from faults and overload |
| 3500/80 106M1085-01 | Generator Protection System | Specifically for generator machinery protection |
| 3500/90 106M1063-01 | Control System Monitoring | Monitoring and protection for control systems |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply?
A1: The Universal AC Power Supply provides a reliable and redundant power source for the Bently Nevada 3500 machinery protection and monitoring system.
Q2: What is the input voltage range for this power supply?
A2: The input voltage range is 110 to 220 Vac nominal, and it supports 85 to 264 Vac RMS for non-hazardous areas, and 85 to 250 Vac RMS for hazardous areas.
Q3: Can I use this power supply in hazardous areas?
A3: Yes, the Bently Nevada 3500/15 Universal AC Power Supply is compatible with hazardous areas, providing reliable power to monitoring systems.
Q4: Is the Universal AC Power Supply hot-swappable?
A4: Yes, the Universal AC Power Supply is hot-swappable, meaning you can replace it without affecting system operation if a secondary power supply is installed.
Q5: How does the backup power supply work in the 3500/15 system?
A5: If two power supplies are installed, the lower one serves as the primary power supply, and the upper one serves as the backup. If the primary fails, the backup takes over.
Q6: Can the Universal AC Power Supply be used with other Bently Nevada modules?
A6: Yes, it is compatible with other Bently Nevada 3500 series modules, providing power to systems like machinery protection, vibration monitoring, and more.
Q7: What are the environmental conditions for installing the 3500/15 Universal AC Power Supply?
A7: It can be installed in both non-hazardous and hazardous areas, provided the environmental requirements for input voltage and frequency are met.
Q8: How is the power supply installed in the rack?
A8: The Universal AC Power Supply is a half-height module designed for installation in specific slots on the left side of the 3500 rack.
Q9: What is the weight and dimensions of this power supply?
A9: The dimensions are 120.7 x 50.8 x 251.5 mm, and the weight is 1.39 kg.
Q10: What are the benefits of using a redundant power supply system with this model?
A10: Redundancy ensures that if the primary power supply fails, the backup takes over immediately, maintaining system uptime and protecting critical machinery.
