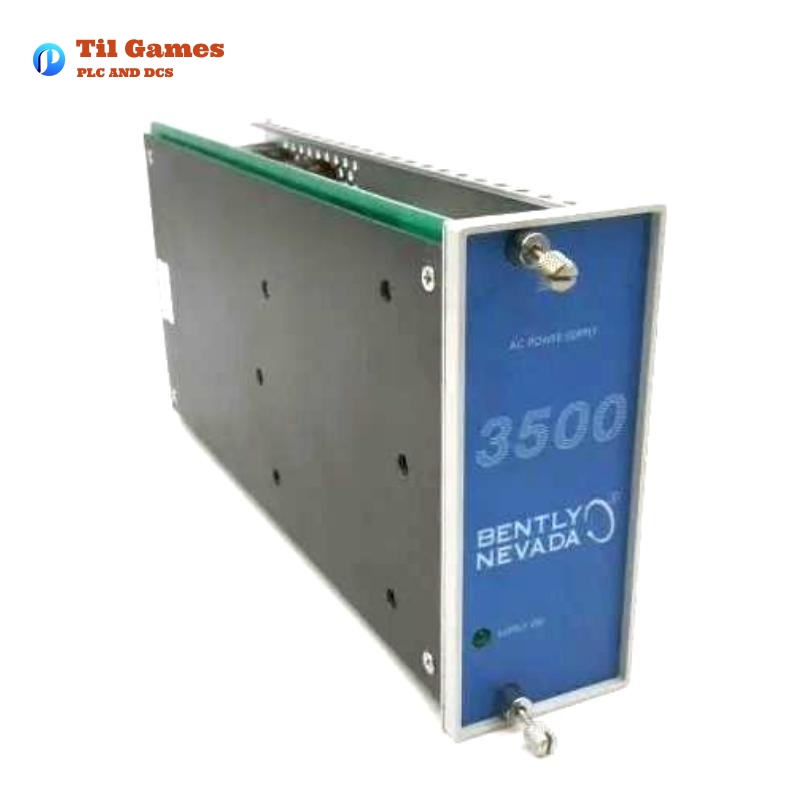

Bently Nevada 3500/15-05-05-02 AC/DC Power Supply Module
The Bently Nevada 3500/15 AC/DC Power Supply Module is a crucial component of the Bently Nevada 3500 Machinery Protection and Condition Monitoring system. It provides reliable power to other modules in the 3500 series, ensuring continuous and stable operation of machinery protection systems. This power supply module can operate in various environments, offering robust performance in both hazardous and non-hazardous areas.
Product Specifications
| Parameter | Description |
|---|---|
| Power Supply Type | Universal AC, High Voltage DC, Low Voltage DC |
| Input Voltage | Universal AC: 85 to 264 Vac rms |
| High Voltage DC: 88 to 140 Vdc | |
| Low Voltage DC: 20 to 30 Vdc | |
| Input Frequency | 47 to 63 Hz |
| Full Rack Current Draw | Universal AC: 2.8 A rms |
| High Voltage DC: 2.5 A | |
| Low Voltage DC: 11.0 A | |
| Outputs | Power output for 3500 system modules |
| LED Indicators | Supply OK LED (green) for operation status |
| Dimensions (L x W x D) | 120.7 mm x 50.8 mm x 251.5 mm |
| Weight | 1.39 kg (3.06 lbs) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
Key Features
-
Redundancy: The module supports dual power supplies for redundancy. When two power supplies are installed, one acts as the primary and the other as a backup, ensuring uninterrupted power in case of failure.
-
Wide Input Range: The module supports universal AC power, high voltage DC, and low voltage DC, making it adaptable to various power sources.
-
High Reliability: Designed to meet industrial standards, the module features built-in protection against over-voltage and under-voltage conditions.
-
Modular Design: Integrates seamlessly into the 3500 rack-based system, offering easy installation and flexibility in configuration.
-
Self-Monitoring: Includes self-diagnostic features to monitor the health of the power supply and alert operators through the “Supply OK” LED.
Advantages
-
Flexibility: The ability to operate with various input voltages makes the 3500/15 versatile for global use.
-
Continuous Operation: Dual power supply configuration ensures the system continues running even if one power supply fails.
-
Compliance: Meets industry safety and electromagnetic compatibility (EMC) standards, including FCC, ATEX, and IECEx certifications for hazardous environments.
-
Easy Maintenance: The power supply can be replaced or removed without disrupting system operation, as long as a second power supply is installed.
Applications
The Bently Nevada 3500/15 AC/DC Power Supply Module is used in various critical applications such as:
-
Power generation (turbines, compressors, generators)
-
Mechanical drive service
-
Oil and gas machinery protection
-
Industrial automation systems requiring robust, reliable power
Related Models (3500 Series)
| Model | Description | Input Voltage | Weight | Dimensions |
|---|---|---|---|---|
| 3500/15-00-00-00 | Basic Power Supply Module | Universal AC 85-264 Vac | 1.39 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/15-03-00-00 | High Voltage DC Power Supply | 88 to 140 Vdc | 1.39 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/15-06-00-00 | Low Voltage DC Power Supply | 20 to 30 Vdc | 1.39 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/15-05-00-00 | Universal AC Power Supply with Backup | 85 to 264 Vac rms | 1.39 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/15-07-00-00 | Redundant Power Supply Module | Universal AC | 1.39 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/15-04-00-00 | High Voltage DC Power Supply with Backup | 88 to 140 Vdc | 1.39 kg | 120.7 x 50.8 x 251.5 mm |
Popular Bently Nevada Models
| Model | Description | Input Voltage | Weight | Dimensions |
|---|---|---|---|---|
| 3500/40M | Radial Vibration Monitor | 10 to 30 Vdc | 1.0 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/42M | Vibration Monitor with Enhanced Channel Options | 10 to 30 Vdc | 1.0 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/45 | Position Monitor | 20 to 30 Vdc | 1.2 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/61 | Temperature Monitor | 10 to 30 Vdc | 0.8 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/72M | Reciprocating Compressor Monitoring | 10 to 30 Vdc | 1.3 kg | 120.7 x 50.8 x 251.5 mm |
| 3500/33 | 16-Channel Relay Module | 10 to 30 Vdc | 1.5 kg | 120.7 x 50.8 x 251.5 mm |
FAQ
FAQ
Q1: What is the power input range of the 3500/15 module?
-
A1: The 3500/15 module accepts universal AC input from 85 to 264 Vac rms, high voltage DC from 88 to 140 Vdc, and low voltage DC from 20 to 30 Vdc.
Q2: How many power supplies can be installed in a 3500 rack?
-
A2: A 3500 rack can accommodate one or two power supplies, providing redundancy for continuous operation.
Q3: What is the operating temperature range for the 3500/15 module?
-
A3: The operating temperature range for the 3500/15 is -30°C to +65°C (-22°F to +150°F).
Q4: Can the 3500/15 be used in hazardous environments?
-
A4: Yes, the 3500/15 meets various hazardous area certifications, including ATEX and IECEx for Zone 2, and Class 1, Division 2.
Q5: Is the 3500/15 module compatible with older 3500 power supplies?
-
A5: No, the 3500/15 is not compatible with legacy power supplies such as the High Voltage AC or Low Voltage AC units.
Q6: How does the redundancy feature work in the 3500/15 module?
-
A6: When two power supplies are installed, the lower one serves as the primary supply, while the upper one serves as a backup. If the primary supply fails, the backup automatically takes over without interrupting operations.
Q7: What are the size and weight of the 3500/15 power supply module?
-
A7: The module measures 120.7 x 50.8 x 251.5 mm and weighs 1.39 kg (3.06 lbs).
Q8: Can I install the power supply module without shutting down the system?
-
A8: Yes, the module can be removed or inserted while the system is powered on, as long as a backup power supply is installed.
