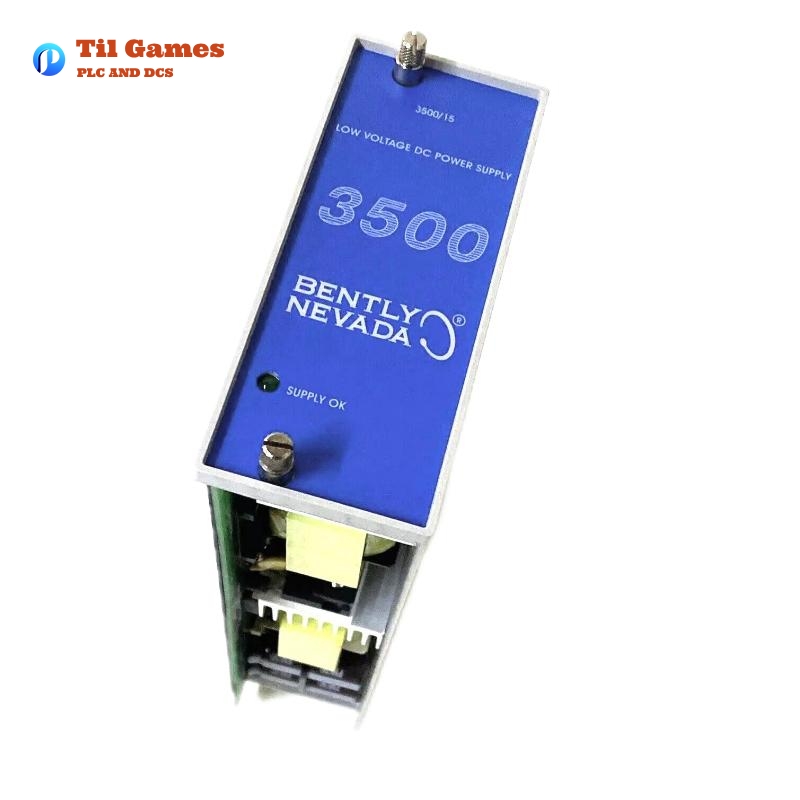

Bently Nevada 3500/15-05-05-00 AC/DC Power Supply Module
The Bently Nevada 3500/15-05-05-00 is a versatile AC/DC power supply module designed for use with the Bently Nevada 3500 series machinery protection system. It serves as a key component for powering other modules in the system, ensuring reliability and performance in industrial environments. This power supply is available in several configurations, including universal AC, high voltage DC, and low voltage DC options, making it adaptable to a wide range of industrial applications.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions (L x W x D) | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Input Voltage (Universal AC) | 85-264 Vac rms (non-hazardous) |
| Input Voltage (High Voltage DC) | 88-140 Vdc |
| Input Voltage (Low Voltage DC) | 20-30 Vdc |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Current Draw (Universal AC) | 2.8 A rms (maximum) |
| Current Draw (High Voltage DC) | 2.5 A (maximum) |
| Current Draw (Low Voltage DC) | 11.0 A (maximum) |
Product Features
-
Redundant Power Supply Setup: The 3500/15 can be configured with one or two power supplies in a single rack. The second power supply acts as a backup, ensuring continuous operation in case of failure.
-
Flexible Input Voltage Range: It supports a wide input voltage range, making it compatible with global power systems. The universal AC option supports 85 to 264 Vac, and the DC options provide high and low voltage choices for specific industrial needs.
-
Reliability: The module is designed for operation in hazardous areas and supports redundant configurations without disrupting the operation, even during the insertion or removal of modules.
-
Front Panel LED Indicators: These LEDs provide clear indications of the operational status of the power supply, ensuring ease of monitoring.
Product Advantages
-
High Availability: The redundant configuration ensures high system availability, preventing downtime.
-
Compatibility with Bently Nevada 3500 System: Fully integrated with the 3500 series, ensuring seamless performance in critical machinery protection and condition monitoring systems.
-
Ease of Maintenance: The ability to insert or remove power supply modules without disturbing other system components adds flexibility in maintenance.
-
Global Compatibility: With wide voltage input support, this power supply is ideal for installations in different regions, ensuring consistency in power delivery.
Applications
The 3500/15 Power Supply Module is used in a wide range of industrial applications where reliable power delivery is critical, such as:
-
Machinery Protection Systems: Ensures continuous power for machinery monitoring and protection, preventing equipment damage from unexpected failures.
-
Condition Monitoring Systems: Used in environments where predictive maintenance and monitoring are essential to avoid costly breakdowns.
-
Industrial Automation: Powers control systems, automation equipment, and sensors in large-scale industrial environments, ensuring optimal operation.
-
Hazardous Area Applications: Approved for use in Class I, Zone 2 hazardous areas, making it suitable for industries like oil and gas, chemical processing, and mining.
Related Model Recommendations
| Model | Input Voltage | Dimensions (L x W x D) | Weight |
|---|---|---|---|
| 3500/15-Universal AC Power | 85-264 Vac | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/15-High Voltage DC Power | 88-140 Vdc | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/15-Low Voltage DC Power | 20-30 Vdc | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/16-Universal AC PIM | 85-264 Vac | 120.7 x 25.4 x 114.3 mm | 0.34 kg |
| 3500/16-High Voltage DC PIM | 88-140 Vdc | 120.7 x 25.4 x 114.3 mm | 0.34 kg |
| 3500/16-Low Voltage DC PIM | 20-30 Vdc | 120.7 x 25.4 x 114.3 mm | 0.34 kg |
Popular Bently Nevada Models
| Model | Input Voltage | Dimensions (L x W x D) | Weight |
|---|---|---|---|
| 3500/40 | 24 Vdc | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/42 | 24 Vdc | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/45 | 24 Vdc | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/16 | 85-264 Vac | 120.7 x 25.4 x 114.3 mm | 0.34 kg |
| 3500/52 | 24 Vdc | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/53 | 24 Vdc | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
FAQ
Frequently Asked Questions (FAQ)
-
Q1: What is the input voltage range for the 3500/15 power supply module?
-
A1: The input voltage range varies by type. The universal AC power supply accepts 85-264 Vac, the high voltage DC power supply accepts 88-140 Vdc, and the low voltage DC power supply accepts 20-30 Vdc.
-
-
Q2: Can the 3500/15 power supply module be used in hazardous areas?
-
A2: Yes, it is certified for use in Class I, Zone 2 hazardous areas, making it suitable for industries like oil and gas and chemical processing.
-
-
Q3: How many power supplies can be installed in a 3500 rack?
-
A3: A 3500 rack can accommodate one or two power supplies, providing redundant configurations to ensure continuous operation.
-
-
Q4: What happens if the power supply fails?
-
A4: If one power supply fails, the backup power supply takes over, ensuring that the system remains operational without interruption.
-
-
Q5: What is the operating temperature range of the 3500/15 power supply?
-
A5: The operating temperature range is -30°C to +65°C, which is suitable for a variety of industrial environments.
-
-
Q6: Can I replace the power supply without shutting down the system?
-
A6: Yes, the modular design allows for hot swapping, meaning you can replace the power supply without disrupting the operation of the system as long as a backup supply is in place.
-
-
Q7: What certifications does the 3500/15 power supply module have?
-
A7: The 3500/15 power supply module complies with various international standards, including FCC, EMC, and electrical safety certifications. It is also RoHS compliant.
-
-
Q8: What is the weight of the 3500/15 power supply module?
-
A8: The 3500/15 power supply module weighs 1.39 kg (3.06 lb), which is manageable for installation and maintenance in industrial environments.
-
