Product Introduction

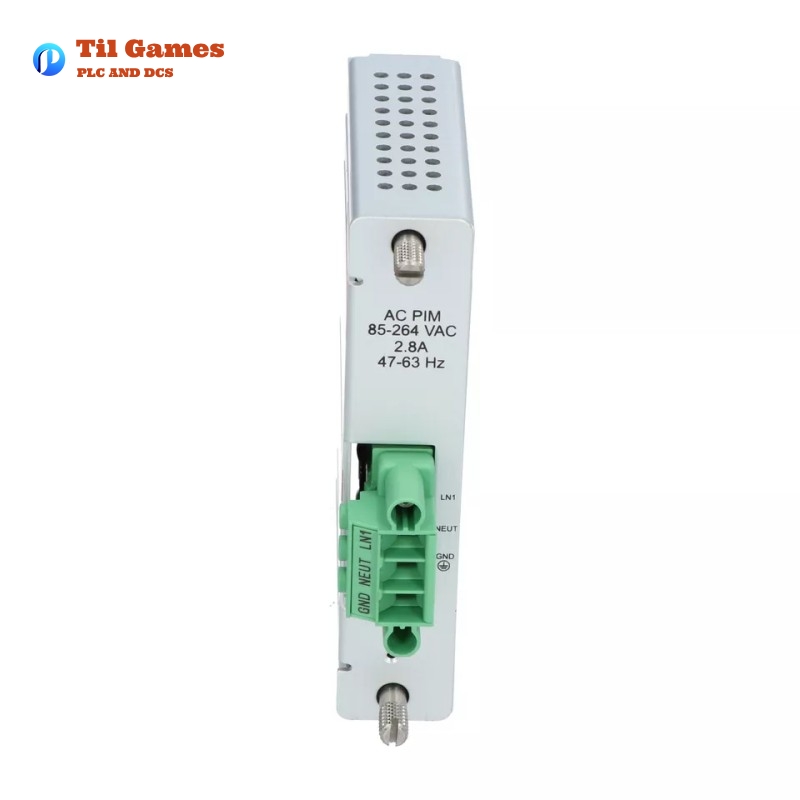

The Bently Nevada 3500/15-05-05-00 106M1081-01 Universal AC Power Input Module is a crucial component designed for use in the Bently Nevada 3500 series machinery condition monitoring systems. It provides the required power input for the system, ensuring reliable and continuous operation of the monitoring equipment. This power module supports a wide range of input voltages, making it versatile and suitable for various industrial applications worldwide.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 3500/15-05-05-00 106M1081-01 |
| Input Voltage Range | 85 to 264 Vac RMS (non-hazardous areas) |
| Input Frequency | 47 to 63 Hz |
| Input Voltage (Hazardous Areas) | 85 to 250 Vac RMS |
| Input Peak Voltage | 120 to 373 Vac peak |
| Current Draw (Full Rack) | 2.8 A rms (max) |
| Dimensions (H x W x D) | 120.7 mm x 25.4 mm x 114.3 mm |
| Weight | 0.34 kg (0.75 lb) |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 95%, non-condensing |
Product Features
-
Universal Voltage Range: The module can handle input voltages between 85 to 264 Vac RMS, making it suitable for use in different regions with varying electrical standards.
-
Redundant Power Supply: The system allows for two power supplies in the rack, ensuring continuity of power if one fails.
-
Compact Design: The module’s small size and lightweight design enable it to fit into the Bently Nevada 3500 series racks, saving valuable space in control cabinets.
-
Environmental Tolerance: Designed to operate in harsh environments, the module can function in temperatures ranging from -30 °C to +65 °C, withstanding extreme industrial conditions.
-
Reliable Power Conversion: Converts AC power into stable DC voltage, essential for the operation of other machinery protection modules in the 3500 series system.
Product Advantages
-
Versatile Compatibility: The module supports various input voltages and is designed to be used in hazardous and non-hazardous areas, making it suitable for a wide range of industrial environments.
-
Continuous Operation: With the redundant power supply feature, this module ensures continuous operation of the monitoring system, minimizing the risk of power failure.
-
Space Efficiency: The compact design allows for easy installation within the 3500 series rack system without occupying much space, which is ideal for crowded industrial control panels.
-
Temperature Range: The extended operating temperature range ensures reliable performance even in extreme environmental conditions, providing flexibility for installation in diverse locations.
-
Industry Certifications: The product complies with various industrial safety standards, including EMC and electrical safety directives, ensuring it meets international safety and operational requirements.
Applications
The 3500/15 Universal AC Power Input Module is designed for use in machinery protection systems across various industries. Its primary application is within the Bently Nevada 3500 Machinery Protection System, used to monitor and protect critical machinery. Key applications include:
-
Power Generation: Monitoring of turbines, generators, and auxiliary equipment.
-
Oil and Gas: Ensuring the safety and reliability of critical rotating and reciprocating equipment such as compressors, pumps, and motors.
-
Manufacturing: Protection of high-value machinery in heavy industries, including compressors, motors, and turbines.
-
Mining: Used for monitoring mining equipment, particularly in remote or hazardous locations.
Related Model Recommendations
Here are 6 related models in the Bently Nevada 3500 series:
| Model Number | Description | Key Feature |
|---|---|---|
| 3500/15-05-05-00 106M1079-01 | Universal AC Power Supply Module | Provides AC power to the system |
| 3500/33 16-Channel Relay Module | Provides relay outputs for system alarms | 16 relay channels for machine protection |
| 3500/40M Vibration Monitor | Monitors radial vibration and other signals | Includes up to 4 channels |
| 3500/60 Temperature Monitor | Measures temperature in critical machinery | Supports up to 6 channels |
| 3500/92 Communication Gateway | Facilitates communication between the system and external networks | Supports Modbus and Ethernet |
| 3500/42M Multi-Channel Monitor | Provides multi-channel vibration monitoring | Includes advanced signal processing |
Popular Bently Nevada Models
Here are 6 popular Bently Nevada models with their key features:
| Model Number | Description | Key Features |
|---|---|---|
| 3500/40M Vibration Monitor | Monitors vibration on machinery | Includes 4 channels for vibration |
| 3500/42M Multi-Channel Monitor | Offers extended vibration monitoring capabilities | 4 channels with advanced signal processing |
| 3500/15-05-05-00 Universal AC Power Input Module | Provides AC power to 3500 series system | Universal AC voltage range, redundant supply |
| 3500/33 16-Channel Relay Module | Provides relay outputs for alarms | 16 channels for relay output |
| 3500/60 Temperature Monitor | Monitors temperature in critical machinery | Up to 6 channels for temperature measurements |
| 3500/92 Modbus Communication Gateway | Facilitates data communication to control systems | Modbus and Ethernet support |
FAQ
FAQ
-
Q1: What input voltage range does the 3500/15 Power Input Module support?
A1: The 3500/15 Universal AC Power Input Module supports a voltage range of 85 to 264 Vac RMS for non-hazardous areas and 85 to 250 Vac RMS for hazardous areas. -
Q2: What is the maximum current draw for the 3500/15 module?
A2: The maximum current draw for the 3500/15 module when powering a full rack is 2.8 A rms. -
Q3: How does the redundant power supply work in the 3500/15?
A3: The 3500/15 allows for two power supplies in the rack. The lower slot contains the primary supply, while the upper slot serves as a backup. If the primary fails, the backup automatically takes over without interrupting operation. -
Q4: What are the environmental limits for the 3500/15 module?
A4: The module can operate in temperatures ranging from -30 °C to +65 °C and can be stored between -40 °C and +85 °C. It can also withstand humidity up to 95%, non-condensing. -
Q5: What certifications does the 3500/15 module comply with?
A5: The 3500/15 module complies with EMC and electrical safety standards, including the European Community’s EMC Directive 2014/30/EU and LV Directive 2014/35/EU. It also adheres to RoHS and hazardous area approvals for Class I, Zone 2 areas. -
Q6: What is the purpose of the “Supply OK” LED on the front panel?
A6: The “Supply OK” LED indicates that the power supply is operating correctly. If the LED is off or shows an error, it suggests an issue with the power supply module. -
Q7: Can the 3500/15 module be used with other Bently Nevada equipment?
A7: Yes, the 3500/15 module is specifically designed for use with the Bently Nevada 3500 series machinery protection systems and is compatible with other monitoring and control modules in the system. -
Q8: What is the size and weight of the 3500/15 module?
A8: The module measures 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in) and weighs 0.34 kg (0.75 lb).
