Product Description

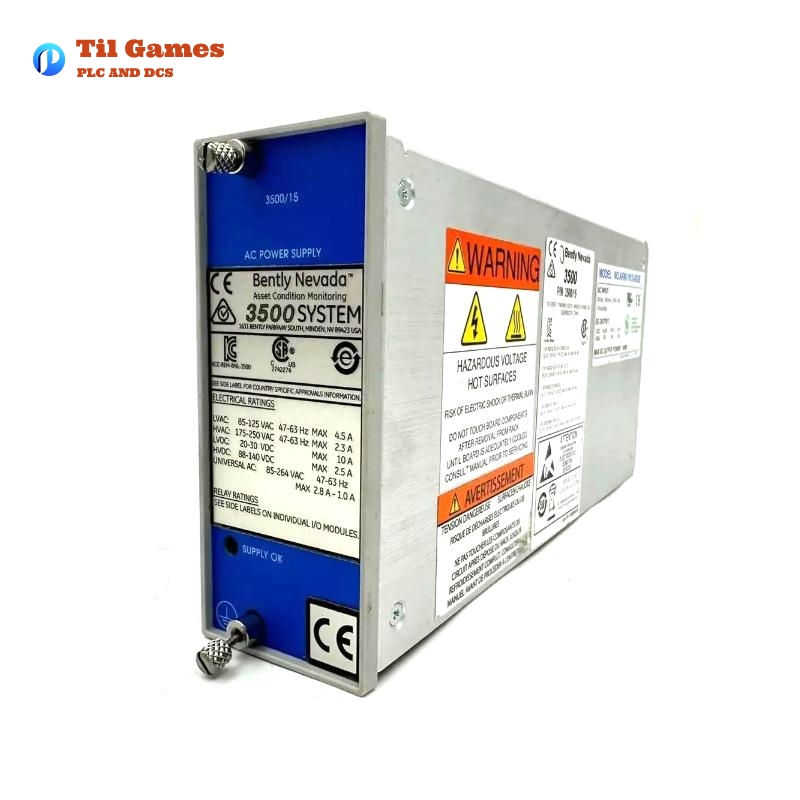

The Bently Nevada 3500/15-05-05-00 106M1079-01 Universal AC Power Supply Module is part of the 3500 Series Machinery Protection System, designed for ensuring reliable power supply to the modules in the 3500 rack system. It provides a robust and versatile power solution by accepting a broad range of input voltages and delivering stable power to various modules in non-hazardous and hazardous areas. This power supply can be used in combination with other power supply modules, supporting redundancy for enhanced reliability.
Specifications
| Parameter | Details |
|---|---|
| Module Type | Universal AC Power Supply |
| Input Voltage | 110 to 220 Vac nominal; 85 to 264 Vac rms (non-hazardous); 85 to 250 Vac rms (hazardous) |
| Input Frequency | 47 to 63 Hz |
| Full Rack Current Draw | 2.8 A rms maximum |
| Output Type | 24 Vdc power supply to the 3500 modules |
| Dimensions (HxWxD) | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg (3.06 lb) |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 95%, non-condensing |
| Rack Space Requirement | Two half-height slots on the left side of the rack |
Product Features
-
Universal Voltage Input: The power supply module can accept a wide range of input voltages (85-264 Vac rms), making it highly flexible and suitable for different environments.
-
Redundancy Support: It supports redundant configurations, with one supply acting as the primary and the other as the backup, ensuring uninterrupted operation.
-
Modular Design: Easily inserted or removed without disrupting the operation, allowing flexibility in system management and maintenance.
-
Compliant with Global Standards: The module adheres to various compliance standards, including EMC, RoHS, and ATEX/IECEx for safe use in hazardous areas.
-
LED Indicators: Provides operational status through front-panel LEDs, simplifying monitoring and maintenance.
Advantages
-
Reliability: With redundancy features, the 3500/15 ensures that a backup power supply is always available, reducing the risk of downtime.
-
Versatility: Capable of handling a broad range of input voltages, this module can be used in different geographical regions and applications.
-
Safety: Designed for use in both hazardous and non-hazardous environments, ensuring safe operation even under challenging conditions.
-
Compatibility: Can be combined with other modules from the 3500 Series for comprehensive system protection and monitoring.
Applications
-
Industrial Machinery Protection: It is commonly used in critical industrial machinery and process monitoring systems, ensuring stable power supply for data collection and processing.
-
Oil and Gas Industry: Used in hazardous locations where the safety of personnel and machinery is paramount.
-
Power Generation Plants: Ensures power stability in systems monitoring turbines, generators, and other essential equipment.
-
Automation Systems: Helps maintain power in automated systems that require constant monitoring for efficiency and safety.
Latest Product Reports
-
“New Innovations in Machinery Protection: Bently Nevada’s 3500 Series.”
-
“Improved Safety Features for Hazardous Areas in the 3500/15 Power Supply.”
-
“Maximizing Uptime with Redundant Power Supplies in Critical Industrial Systems.”
-
“Bently Nevada 3500/15 Universal AC Power Supply: A Review of Performance and Reliability.”
Related Models from the Same Series
| Model | Input Voltage | Rack Space | Weight | Output |
|---|---|---|---|---|
| 3500/15-06 High Voltage DC | 88 to 140 Vdc | Half-Height Slot | 1.39 kg | 24 Vdc |
| 3500/15-07 Low Voltage DC | 20 to 30 Vdc | Half-Height Slot | 1.39 kg | 24 Vdc |
| 3500/15-05 Universal AC | 85 to 264 Vac rms | Half-Height Slot | 1.39 kg | 24 Vdc |
| 3500/16 Universal DC | 88 to 140 Vdc | Half-Height Slot | 1.39 kg | 24 Vdc |
| 3500/17 High Voltage AC | 85 to 250 Vac rms | Half-Height Slot | 1.39 kg | 24 Vdc |
| 3500/18 Low Voltage AC | 85 to 250 Vac rms | Half-Height Slot | 1.39 kg | 24 Vdc |
Popular Bently Nevada Models
| Model | Input Voltage | Weight | Rack Space | Output |
|---|---|---|---|---|
| 3500/01 Vibration Monitor | 85 to 264 Vac rms | 1.5 kg | Full-Height Slot | 24 Vdc |
| 3500/02 Expansion Module | 85 to 264 Vac rms | 1.6 kg | Full-Height Slot | 24 Vdc |
| 3500/03 Speed Sensor | 85 to 264 Vac rms | 1.2 kg | Half-Height Slot | 24 Vdc |
| 3500/04 Discrete Input | 85 to 264 Vac rms | 1.3 kg | Half-Height Slot | 24 Vdc |
| 3500/10 Relay Module | 85 to 264 Vac rms | 1.4 kg | Full-Height Slot | 24 Vdc |
| 3500/15-05 Universal AC | 85 to 264 Vac rms | 1.39 kg | Half-Height Slot | 24 Vdc |
FAQ
FAQs
Q1: What is the input voltage range of the Bently Nevada 3500/15 Universal AC Power Supply?
-
A1: The input voltage range for the Bently Nevada 3500/15 is 85 to 264 Vac rms, suitable for non-hazardous and hazardous environments.
Q2: Can the Bently Nevada 3500/15 module be used in hazardous areas?
-
A2: Yes, the module is certified for use in hazardous areas, including Class I, Zone 2 and ATEX/IECEx rated locations.
Q3: Does the Bently Nevada 3500/15 support redundancy?
-
A3: Yes, the 3500/15 supports redundant power supplies by installing one power supply in the top slot and another in the bottom slot.
Q4: What is the maximum operating temperature for the 3500/15?
-
A4: The operating temperature range for the 3500/15 is -30 °C to +65 °C.
Q5: Is the Bently Nevada 3500/15 easy to install?
-
A5: Yes, the module can be easily installed in a half-height slot in the 3500 rack without disrupting operation when swapped.
Q6: How can I monitor the status of the power supply?
-
A6: The power supply has an LED indicator on the front panel, which shows whether the supply is operating correctly.
Q7: What is the weight of the Bently Nevada 3500/15 module?
-
A7: The weight of the 3500/15 Universal AC Power Supply module is 1.39 kg (3.06 lb).
Q8: Can I use the Bently Nevada 3500/15 with older 3500 AC power supplies?
-
A8: No, the Universal AC Power Supply module is not compatible with legacy high-voltage AC or low-voltage AC power supplies.
