Product Description

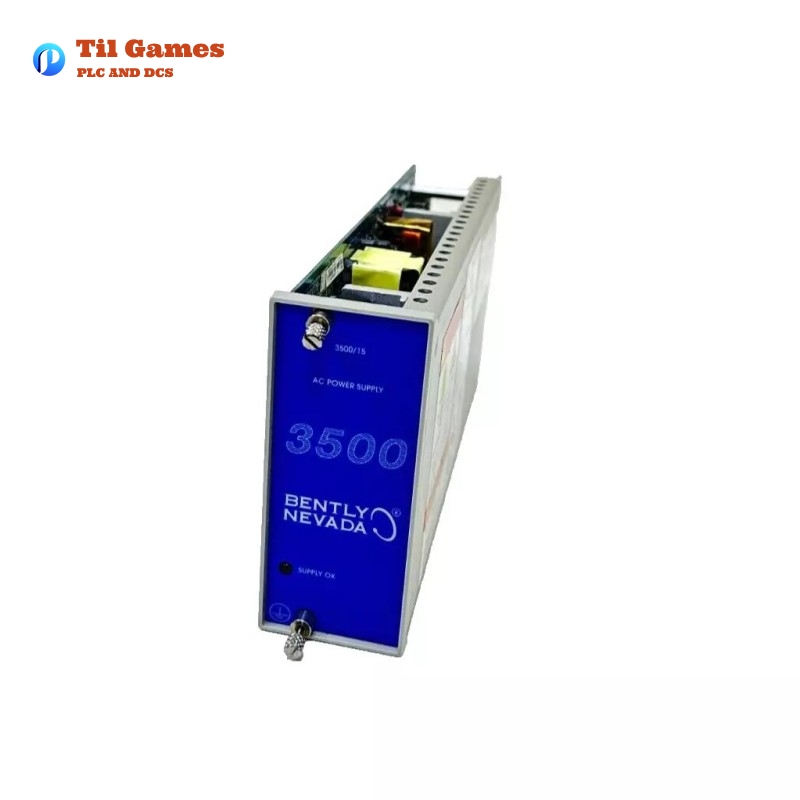

The 3500/15 AC/DC Power Supply Module is designed for use with the 3500 Series Machinery Protection System. It is a half-height module that can be installed in a rack on the left side, offering flexibility for various power supply configurations. This module ensures reliable power distribution to the other 3500 series modules, supporting both AC and DC power.
The 3500/15 can be configured with one or two power supplies, providing options for redundancy in installations. If two power supplies are used, the one in the lower slot serves as the primary, and the one in the upper slot acts as the backup. The module also ensures that inserting or removing a power supply does not disrupt the operation, as long as a secondary supply is in place.
Product Features
-
Flexible Power Supply Options: Supports Universal AC, High Voltage DC, and Low Voltage DC configurations.
-
Redundancy Support: Two power supplies can be installed for backup purposes.
-
Wide Input Voltage Range: Accepts input voltages ranging from 85 to 264 Vac (Universal AC), 88 to 140 Vdc (High Voltage DC), and 20 to 30 Vdc (Low Voltage DC).
-
LED Indicators: Features a front panel Supply OK LED to indicate proper operation.
Product Advantages
-
Redundancy for Enhanced Reliability: Ensures continuous power with backup supply in place.
-
Wide Input Voltage Range: Compatible with multiple voltage sources for flexible installation options.
-
Non-disruptive Module Changes: Allows insertion/removal of power supplies without interrupting system operation.
-
Compliance and Certifications: Meets industry standards such as EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU, and hazardous area approvals.
Product Applications
The 3500/15 AC/DC Power Supply Module is ideal for:
-
Industrial Machinery Protection: Essential for providing stable power to machinery protection systems.
-
Process Control Systems: Ensures reliable power supply in demanding industrial environments.
-
Hazardous Area Applications: Certified for use in hazardous environments, with ATEX and IECEx approvals.
Product Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 85 to 264 Vac (Universal AC), 88 to 140 Vdc (High Voltage DC), 20 to 30 Vdc (Low Voltage DC) |
| Input Frequency | 47 to 63 Hz |
| Full Rack Current Draw | 2.8 A (Universal AC), 2.5 A (High Voltage DC), 11.0 A (Low Voltage DC) |
| Dimensions (H x W x D) | 120.7 mm x 50.8 mm x 251.5 mm |
| Weight | 1.39 kg |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 95%, non-condensing |
Compliance & Certifications
-
EMC: Complies with EN 61000-6-2 and EN 61000-6-4 standards for immunity and emissions.
-
Electrical Safety: Complies with EN 61010-1 for electrical safety.
-
RoHS: Meets RoHS Directive 2011/65/EU.
-
Hazardous Area Approvals: Includes approvals for Class I, Division 2 and ATEX/IECEx II 3 G.
Related Bently Nevada Models
| Model | Description | Key Features |
|---|---|---|
| 3500/15-01-00 | Universal AC Power Supply Module | 110 to 220 Vac input |
| 3500/15-02-00 | High Voltage DC Power Supply Module | 88 to 140 Vdc input |
| 3500/15-03-00 | Low Voltage DC Power Supply Module | 20 to 30 Vdc input |
| 3500/16 | Auxiliary Power Supply Module | Secondary power option |
| 3500/23 | Machinery Protection Module | Power distribution |
| 3500/30 | Temperature Monitoring Module | Temperature sensing |
Popular Bently Nevada Models
| Model | Description | Key Features |
|---|---|---|
| 3500/42M | Vibration Monitoring Module | Multi-channel vibration |
| 3500/53 | Proximity Transducer Module | Proximity measurement |
| 3500/22 | Displacement Monitoring Module | Displacement sensing |
| 3500/01 | Digital Input Module | Inputs for machinery protection |
| 3500/02 | Digital Output Module | Outputs for machinery protection |
| 3500/45 | Monitoring System for Dynamic Pressure | Dynamic pressure monitoring |
FAQ
FAQ
Q1: What voltage options does the 3500/15 Power Supply support?
A1: The 3500/15 supports Universal AC (85 to 264 Vac), High Voltage DC (88 to 140 Vdc), and Low Voltage DC (20 to 30 Vdc).
Q2: How is redundancy supported in the 3500/15 Power Supply?
A2: The module supports redundancy by allowing the installation of two power supplies, one acting as the primary and the other as the backup.
Q3: Can I install the power supply while the system is running?
A3: Yes, the system allows for the insertion or removal of power supplies without disrupting operation, as long as a second supply is installed.
Q4: What is the maximum current draw for each power supply type?
A4: Universal AC: 2.8 A, High Voltage DC: 2.5 A, Low Voltage DC: 11.0 A.
Q5: What certifications does the 3500/15 Power Supply have?
A5: The 3500/15 is certified for compliance with EMC, RoHS, and ATEX/IECEx hazardous area standards.
Q6: What is the weight of the power supply module?
A6: The power supply module weighs 1.39 kg (3.06 lbs).
Q7: What temperature range can the 3500/15 Power Supply operate in?
A7: The operating temperature range is -30 °C to +65 °C (-22 °F to +150 °F).
Q8: What happens if there is an over-voltage in the power supply?
A8: In case of an over-voltage, the fuse on the Power Input Module (PIM) will open to protect the system.
